Jensen CD3720XM Quick Start Manual

ANTENNA JACK
Connect to the factory or aftermarket
antenna lead. (Optional extensions or
adapters may be necessary depending
on the type of vehicle you have)
®
XM DIRECT TUNER
(sold separately)
®
XM ANTENNA
(sold separately)
Need help?
For technical assistance, call
the Jensen customer
support line at 1-800-323-4815.

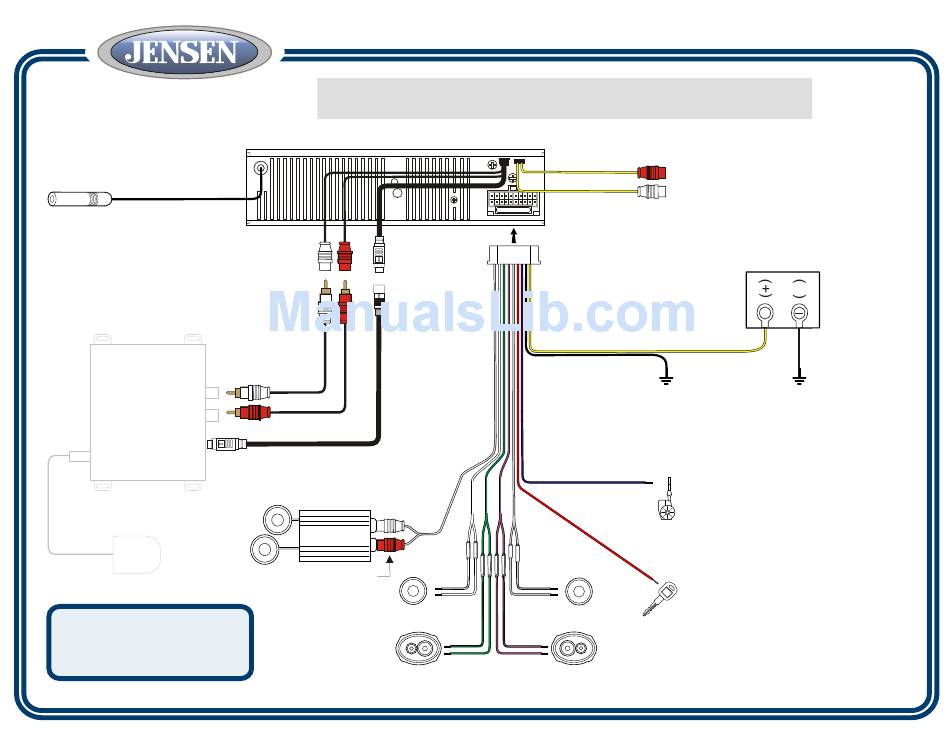

CD3720XM Quick Start Guide
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring
instructions carefully, or have the installation handled by an experienced technician.
®
XM DIRECT
®
XM AUDIO
CONNECT
INPUT
CABLE
AMP
RCA OUTPUT
Connect to an
optional amplifier.
10A
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
Left Front Right Front
Left Rear Right Rear
SPEAKERS
AUXILIARY
INPUT
BATTERY
-
for the radio to work.
CHASSIS GROUND
Connect the black wire to the factory ground wire.
If a factory ground wire is not provided, locate a
clean, unpainted metal part of the dash and secure
the ground wire with a "ring" terminal and a sheet
metal screw.
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
ACCESSORY
Connect the red wire to the factory
Accessory or Ignition wire, which
receives power when the key is
turned on.
