8

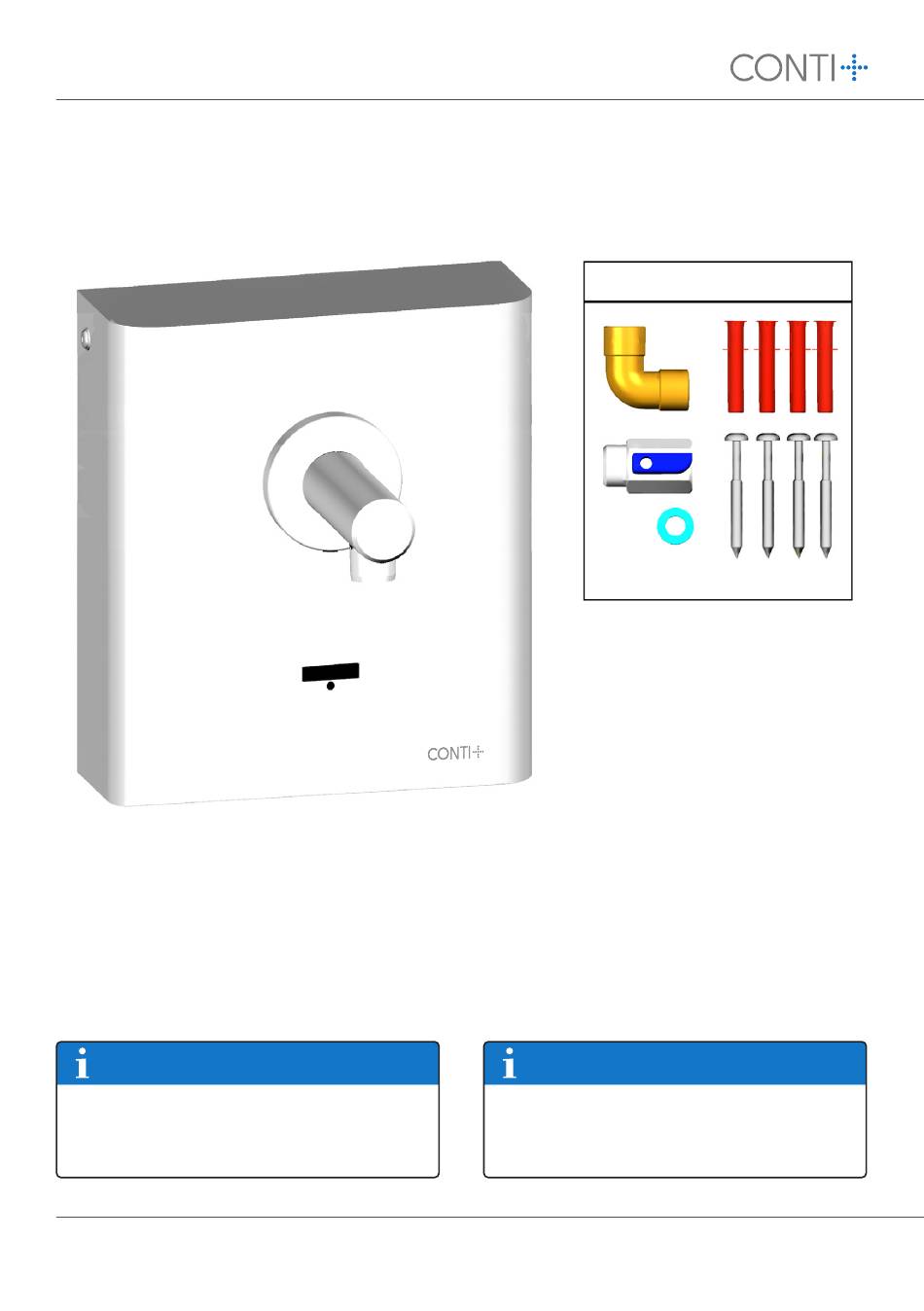

Lieferumfang | Content of delivery
8
Hinweis! | Note!
Hinweis!
Wartungsverpfl ichtung
Wartungs- und Instandsetzungsverpfl ichtungen
beachten gemäß:
▪
VDI/DVGW 6023 Blatt I
▪
Merkblatt 60.07 der Deutschen Gesellschaft
für das Badewesen e. V.
▪
DIN EN 806-5
Die Zeitabstände für regelmäßige Wartungen richten
sich nach Wasserqualität und Benutzungs häufi gkeit
(jedoch mindestens 1 x pro Jahr).
Hinweis!
Für zusätzlich nötigen örtlichen Potenzialausgleich
Kupferleitung von mindestens 6 mm² verwenden.
Bei der Montage sind folgende gesetzlichen Bestim-
mungen durch die ausführende Elektrofachkraft
einzuhalten:
▪
DIN VDE 0100 Teile 701 und 702
Bei Nichtbeachten haftet die ausführende Firma.
Hinweis!
Zwingend erforderliche Verbindungsleitungen sind
bauseits in einem Schutzrohr/Leerrohr zu verlegen und
anzuklemmen.
▪
jeweils erforderliche Leitungstypen sind in den entsprechen-
den Montageanleitungen angegeben.
Die elektrische Verdrahtung darf nur von einer
Elektro fachkraft gemäß DIN VDE 105-100 durch-
geführt werden.
Haube komplett vormontiert
Hinweis!
Hood completely pre-assembled
Schutzart IP68 nur bei korrekter Montage
gewährleistet.
▪
Bei Anschluss auf Steckermarkierung achten.
▪
Steckverbindungen ohne Zugspannung und trocken
vollständig zusammenführen.
▪
Erst nach Kontrolle und Zuordnung der Steck verbindungen
Spannung zuführen.
Hinweis!
Der im Lieferumfang enthaltene Befestigungssatz
dient dem universellen Einsatz.
Vor der Montage ist auf einen geeigneten Untergrund
zu achten! Das Befestigungsmaterial ist den örtlichen
Gegebenheiten anzupassen.
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Potentialausgleich
Elektroinstallation
IP68-Verbindung
Befestigung
Note!
maintenance obligation
Maintenance and repair obligations
in accor dance with:
▪
VDI/DVGW 6023 Sheet I
▪
Leafl et 60.07 of the German Bathing Association
(Deutsche Gesellschaft für das Badewesen e. V.)
▪
DIN EN 806-5
The intervals for regular maintenance depend
on the water quality and frequency of use
(but at least once a year).
Note!
potential equalization
For additional necessary local equipotential
equalization use copper cable of at least 6 mm².
The following legal regulations must be ob served
by the qualifi ed electrician during installation:
▪
DIN VDE 0100 parts 701 and 702
In the event of non-observance, the contractor
is liable.
Fertigmontage Set, bestehend
aus Dichtung, Anschlussver-
Note!
electrical installation
schraubung mit Vorabsperrung,
Bogen, Schrauben und Dübel
Mandatory connecting cables are to be laid and
clamped on site in a thermowell / empty conduit.
Final assembly kit, including
▪
The required cable types are specifi ed in the corresponding
installation instructions.
Gasket, Connection fitting with
preliminary shut-off, elbow,
Electrical wiring may only be carried out by a quali-
fi ed electrician in accordance with DIN VDE 105-100.
screws and plugs
Note!
Protection class IP68 is only guaranteed
if installed correctly.
▪
When connecting, pay attention to the connector marking.
▪
Connect the plug connections completely without tension
and dry.
▪
Only apply voltage after checking and assigning the plug
connections.
Note!
The mounting kit included in the scope of delivery
is for universal use.
Before installation, a suitable substrate must be
ensured! The fi xing material must be adapted
to the local conditions.
IP68-Connection
fi xation
