NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented here
re fl ects con di tions at time of pub-
lication. Consult factory re gard ing
dis crep an cies or in con sis ten cies.
INSTALLATION IN STRUC TIONS
PREINSTALLATION CHECK LIST - ALL INSTALLATIONS
1. Inspect all materials. Oc ca sion ally, prod ucts are dam aged dur ing ship ment. If the unit is dam aged, con tact your dealer be fore
using.
2. Carefully read all the lit era ture pro vid ed to fa mil iar ize your self with specifi c details re gard ing in stal la tion and use be fore at tempt ing
the in stal la tion. These ma te ri als should be re tained for future ref er ence.
1. To help reduce the risk of elec tri cal shock, a properly
grounded re cep tacle or con trol box of ground ing type must
be in stalled and pro tect ed by a ground fault circuit interrupter
(GFCI) in ac cor dance with the National Elec tri cal Code and
ap pli ca ble local codes. If pump is wired direct, a GFCI must
be installed in the control box. (SEE WARN ING BELOW)
2. Make certain that the ground fault in ter rupt er protected re cep -
tacle or con trol box is with in reach of the pump's power supply
cord. DO NOT USE AN EX TEN SION CORD. Ex ten sion cords
that are too long or too light do not deliver suffi cient voltage
to the pump motor. But more im por tant, they could present a
safe ty hazard if the in su la tion were to become dam aged or
the con nec tion end were to fall into a damp or wet area.
3. Make sure the pump's elec tri cal sup ply cir cuit is equipped
with fuses or cir cuit break ers of prop er ca pac i ty. A sep-
a rate branch cir cuit, sized ac cord ing to the National Electrical
1. Check to be sure your power source is ad e quate to handle
the am per age requirements of the motor as indicated on the
pump or unit I.D. tag.
2. All plumbing (discharge and drain lines) must be in stalled to
meet local codes.
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624

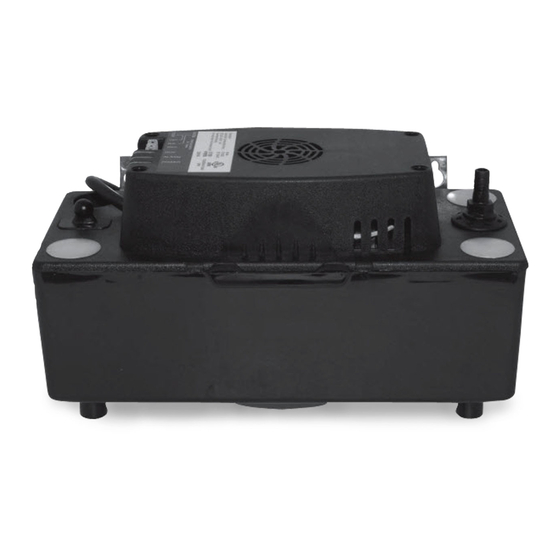

MODEL 521 Condensate Pump
© Copyright 2010 Zoeller Co. All rights reserved.
SEE BELOW FOR
LIST OF WARNINGS
Code for the cur rent shown on the pump name plate is recom-
mended.
4. TESTING FOR GROUND. As a safe ty mea sure, each elec tri cal
outlet should be checked for ground us ing an Underwriters
Lab o ra to ry Listed cir cuit an a lyz er which will indicate if the
power, neu tral and ground wires are cor rect ly con nected to your
out let. If they are not, call a qualifi ed licensed electrician.
5. Installation and checking of elec tri cal cir cuits and hard ware
should only be performed by a qualifi ed li censed electrician.
6. FOR YOUR PRO TEC TION ALWAYS DIS CON NECT PUMP
FROM ITS POW ER SOURCE BE FORE HANDLING.
7. According to the state of California (Prop 65), this product
contains chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm.
SEE BELOW FOR
LIST OF CAUTIONS
NOTE: Pumps with the "UL" mark and pumps with the "US" mark
are tested to UL Standard UL778. CSA Certifi ed pumps are
certifi ed to CSA Standard C22.2 No. 108.
REFER TO WARRANTY ON PAGE 2.
SECTION: 6.10.086
FM2630
1210
Supersedes
New
visit our web site:
www.zoeller.com
