Your Peace of Mind is Our Top Priority
Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
Register your
Zoeller Pump Company
Product on our website:
http://reg.zoellerpumps.com/
Patent No. D740329
PREINSTALLATION CHECKLIST
1. Inspect your pump. Occasionally, products are damaged during shipment. If the unit or any of the parts are damaged, contact your dealer before using.
2. Read all the installation instructions regarding installing and start up. Retain for future reference.
1. Testing for Ground. As a safety measure each electrical outlet should
be checked for ground using an Underwriters Laboratory listed circuit
analyzer, which will indicate if the power, neutral and ground wires are
correctly connected to your outlet. If they are not, call a qualified, licensed
electrician.
2. For your protection always disconnect the power supply from its power
source before handling the components of your DC backup pump or the
primary pump.
performed by a qualified, licensed electrician.
4. All electrical and safety codes must be followed in addition to the National
Electrical Code and all applicable local codes.
5.
It is the owner's responsibility to check the battery and battery
connection at least once a month. Batteries contain acid and
caution must be taken when handling.
6. Risk of electric shock - These pumps have not been investigated for use
in swimming pool areas.
7. According to the state of California (Prop 65), this product contains
chemicals known to the state of California to cause cancer and birth
defects or other reproductive harm.
®
®
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624

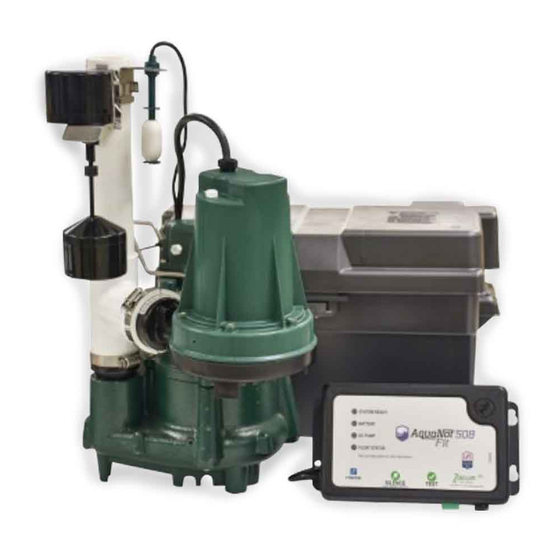

12 VOLT DC BATTERY BACKUP PUMP
INSTALLATION INSTRUCTIONS
SEE BELOW FOR
LIST OF WARNINGS
© Copyright 2016 Zoeller
CAUTION
1. Make sure there is a properly grounded 115V/230V receptacle available.
Do not use primary pump circuit. The location must be within 6' of the
control box and battery. The power supply for your DC control system
plugs directly into the 115V/230V outlet. DO NOT USE AN EXTENSION
CORD.
2. Make sure the 115V/230V electrical supply circuit is equipped with
fuses or circuit breakers of proper capacity.
3. DC emergency pumps are designed for handling clear water. Do not use
in septic tanks to pump effluent or sewage pits to pump sewage.
4. Repair and service of your DC backup system should be performed by
an authorized service station.
5. The installation of DC automatic backup pumps requires the use of a
variable level float switch for operation. It is the responsibility of the
installing party, to ensure that the float switch will not hang up on the
pump apparatus or pit peculiarities and is secured so the pump will turn
"on" and "off". It is recommended that the pit be 18" (457 mm) in diameter
or larger to accommodate both a primary and a DC backup pump.
6. For indoor use only.
7. Installation and maintenance of this appliance is not intended for
persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Turbulence caused by high velocity incoming water
CAUTION
can cause sump pumps to airlock. If this condition exists, the incoming
water must be baffled to avoid excessive turbulence.
REFER TO WARRANTY ON PAGE 2.
Co. All rights reserved.
®
FM2769
0116
Supersedes
1015
visit our web site:
www.zoeller.com
SEE BELOW FOR
LIST OF CAUTIONS
