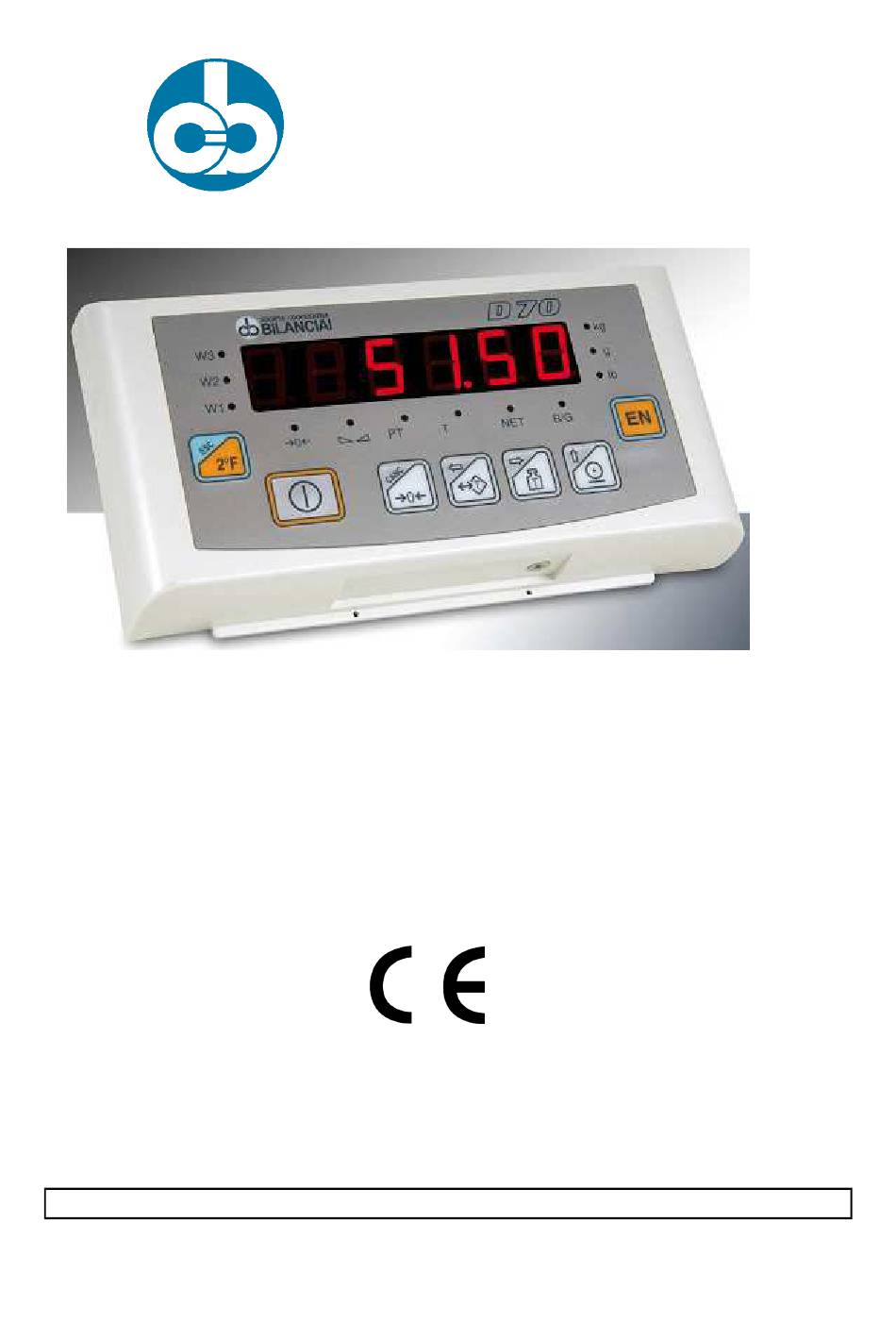

SOCIETÀ COOPERATIVA
BILANCIAI
D70E Terminal
Use and Maintenance Manual
Code n° 81320437
EDITION March 18 2014
