thomann Sirus Reflect 5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Reflect 5, Reflect 6,
Reflect 8
passive speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirus Reflect 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann Sirus Reflect 5

Summary of Contents for thomann Sirus Reflect 5

  • Page 1 Reflect 5, Reflect 6, Reflect 8 passive speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 14.05.2021, ID: 508920, 508921, 508922, ...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 10 Installation..............................12 4.1 Installation............................13 4.2 Power tap............................16 4.3 Tips on handling speakers......................17 Technical specifications........................18 5.1 Reflect 5 (item no.

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. passive speaker...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Symbols And Signal Words

    General information 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 7 General information Warning signs Type of danger Warning – danger zone. Reflect 5, Reflect 6, Reflect 8...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.

  • Page 10: Features

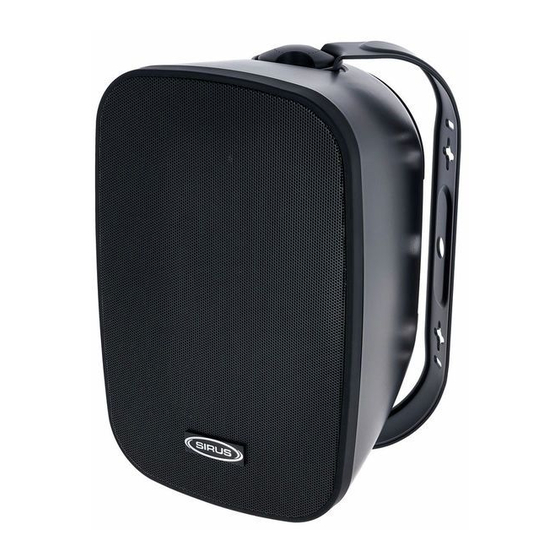

    Features Features Reflect 5 Speakers: 1 × 1" tweeter, 1 × 5" woofer (item no. 508920, 508921) OBE technology (Optimal Bass Enhancement Radiator) Transformer for 100 V/70 V (3.75 W/7.5 W/15 W/30 W) Pluggable screw terminal connections Mounting bracket included Weatherproof thanks to protection class IP66 Housing colour: black (item no.
  • Page 11 Features Reflect 8 Speakers: 1 × 1.1" tweeter, 1 × 8" woofer (item no. 508924, 508925) OBE technology (Optimal Bass Enhancement Radiator) Transformer for 100 V/70 V (6.25 W/12.5 W/25 W/50 W) Pluggable screw terminal connections Mounting bracket included Weatherproof thanks to protection class IP66 Housing colour: black (item no.

  • Page 12: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 13: Installation

    Installation 4.1 Installation Wall mounting The following illustration shows how the supplied mounting bracket can be attached to the wall. Check the condition of the subsurface and use appropriate fastening material (not included). Reflect 5, Reflect 6, Reflect 8...
  • Page 14 Installation Tripod mounting NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. The passive loudspeaker can be mounted on a tripod.
  • Page 15 Installation Logo alignment In order to adapt the attached logo on the front grille to the alignment of the speaker, remove the inserted front grille and use a screwdriver to open the logo screw. Align the logo and tighten the screw. Put the front grille back on the speaker. Reflect 5, Reflect 6, Reflect 8...

  • Page 16: Power Tap

    Installation 4.2 Power tap Use the selector switch on the rear of the device to select the setting for the power tap. The following table shows the possible settings: Reflect 5 Reflect 6 Reflect 8 (item no. 508920, 508921) (item no. 508922, 508923) (item no.

  • Page 17: Tips On Handling Speakers

    Installation 4.3 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 18: Technical Specifications

    Technical specifications Technical specifications 5.1 Reflect 5 (item no. 508920, 508921) 254 mm Speaker 1 × 1" tweeter 1 × 5" woofer Input connections Pluggable screw terminal Frequency response (± 3 dB) 100 Hz…20 kHz 258 mm Power handling 30 W (RMS) 60 W (peak) Sensitivity (1 W / 1 m) 85 dB...
  • Page 19 Technical specifications Weight 2.75 kg Colour black (item no. 508920), white (item # 508921) Frequency response The following graph shows the course of the sound pressure level at 1 W/1 m (1) and impedance (2) depending on the signal frequency. Ω...
  • Page 20 Technical specifications Polar pattern (1) vertical, (2) horizontal ö 0° 0° 0° 0° 330° 330° 30° 30° 330° 330° 30° 30° 300° 300° 60° 60° 300° 300° 60° 60° 270° 270° 90° 90° 270° 270° 90° 90° 240° 240° 120° 120°...

  • Page 21: Reflect 6 (Item No. 508922, 508923)

    Technical specifications 5.2 Reflect 6 (item no. 508922, 508923) Speaker 1 × 1" tweeter 284 mm 1 × 6.5" woofer Input connections Screw terminals Frequency response (± 3 dB) 90 Hz…20 kHz 285 mm Power handling 40 W (RMS) 80 W (peak) Sensitivity (1 W / 1 m) 86 dB Rated impedance...
  • Page 22 Technical specifications Frequency response The following graph shows the course of the sound pressure level at 1 W/1 m (1) and impedance (2) depending on the signal frequency. Ω ö passive speaker...
  • Page 23 Technical specifications Polar pattern (1) vertical, (2) horizontal ö 0° 0° 0° 0° 330° 330° 30° 30° 330° 330° 30° 30° 300° 300° 60° 60° 300° 300° 60° 60° 270° 270° 90° 90° 270° 270° 90° 90° 240° 240° 120° 120°...

  • Page 24: Reflect 8 (Item No. 508924, 508925)

    Technical specifications 5.3 Reflect 8 (item no. 508924, 508925) Speaker 1 × 1.1" tweeter 365 mm 1 × 8" woofer Input connections Screw terminals Frequency response (± 3 dB) 80 Hz…20 kHz 381 mm Power handling 50 W (RMS) 80 W (peak) Sensitivity (1 W / 1 m) 87 dB Rated impedance...
  • Page 25 Technical specifications Frequency response The following graph shows the course of the sound pressure level at 1 W/1 m (1) and impedance (2) depending on the signal frequency. Ω ö Reflect 5, Reflect 6, Reflect 8...
  • Page 26 Technical specifications Polar pattern (1) vertical, (2) horizontal ö 0° 0° 0° 0° 330° 330° 30° 30° 330° 330° 30° 30° 300° 300° 60° 60° 300° 300° 60° 60° 270° 270° 90° 90° 270° 270° 90° 90° 240° 240° 120° 120°...
  • Page 27 Technical specifications Further information Construction Standard Monitor wedge Weatherproof Housing material Plastic Tripod flange Connector Phoenix clamp Truss-capable Swivel bracket Ways Transformer Housing / installation Housing Wall bracket Reflect 5, Reflect 6, Reflect 8...

  • Page 28: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 29 Notes Reflect 5, Reflect 6, Reflect 8...
  • Page 30 Notes passive speaker...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
