Page 1: Pressure Washer

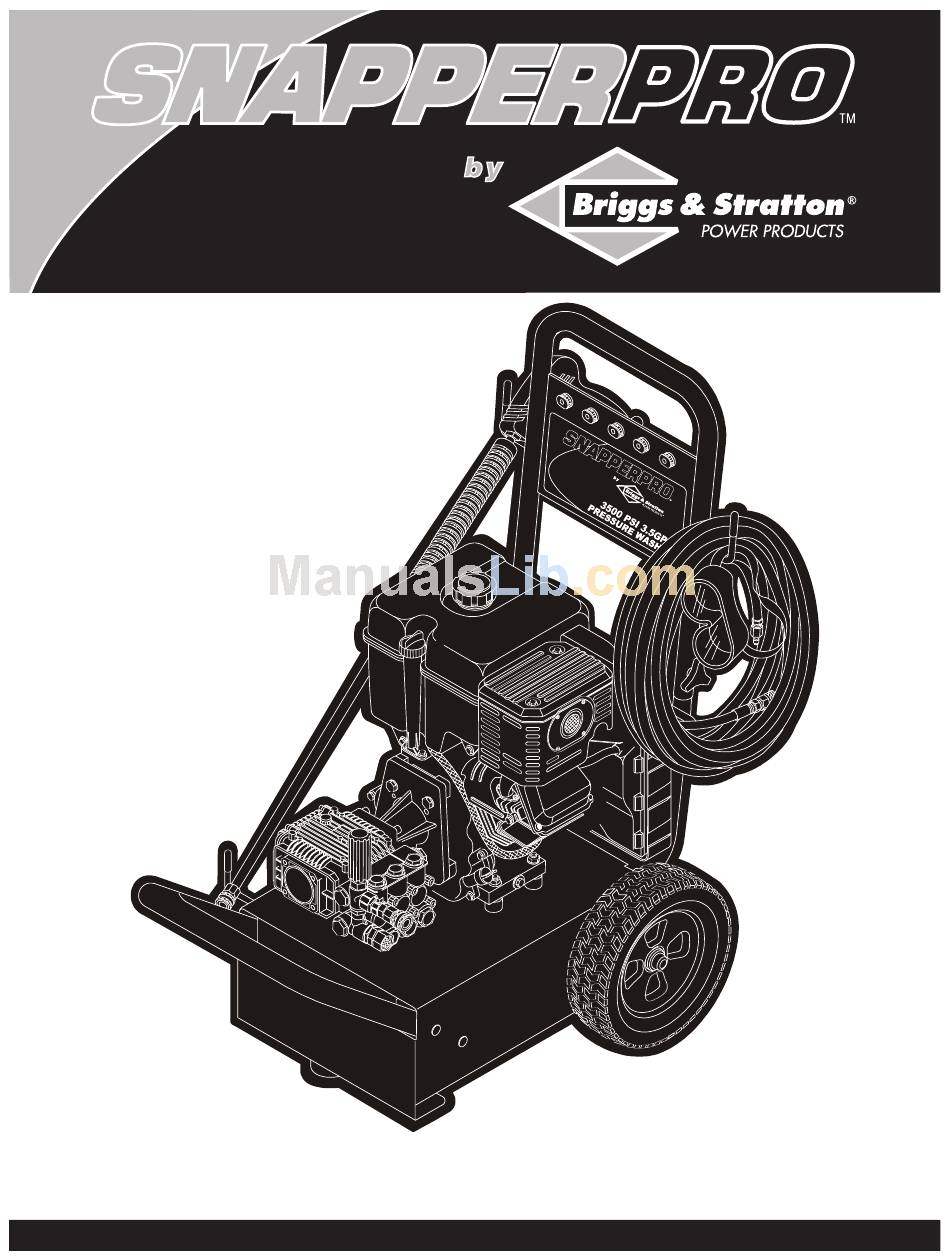

3500PSI Pressure Washer Owner’s Manual Questions? Help is just a moment away! Contact the Local Snapper Service Center Web: www.snapper.com or www.briggsandstratton.com Model No. 1662-0 (3500 PSI Pressure Washer) Manual No. 190667GS Revision 1 (01/17/2002) -
Page 2: Table Of Contents
Safety Rules........2-3 Know Your Pressure Washer ..... . 4 Assembly. - Page 3 • Keep spray nozzle between 8 to 24 inches away from cleaning surface. • Be extremely careful if you must use the pressure washer from a ladder, scaffolding or any other relatively unstable location. • The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
-
Page 4: Know Your Pressure Washer
KNOW YOUR PRESSURE WASHER Read this owner’s manual and safety rules before operating your high pressure washer. Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. -
Page 5: Assembly
IMPORTANT: Read entire owner’s manual before you attempt to assemble or operate your new pressure washer. REMOVE PRESSURE WASHER FROM CARTON • Remove all accessories and parts bag included with pressure washer. • Slice two corners at the end of carton from top to bottom so the panel can be folded down flat, then remove all packing material. -
Page 6: Add Engine Oil
IMPORTANT: Any attempt to crank or start the engine before it has been properly serviced with the recommended oil may result in an engine failure. • Place pressure washer on a level surface. • Refer to the engine owners manual to add recommended oil to engine. -
Page 7: Assembly
‘Y’ shut-off connector or other convenience-type water shut-off valve. Damage to pressure washer resulting from disregarding this warning will not be covered by the warranty. • Turn ON the water. - Page 8 • Place the pressure washer in an area close enough to an outside water source that can flow at a rate of 3.9 gallons per minute or more.
-
Page 9: How To Stop Your Pressure Washer
(see “How To Use the Nozzles”). • Disengage the safety latch on the spray gun. How to Stop Your Pressure Washer • Move the throttle lever to the “Slow” position. • Move the fuel valve to the “Off” position. -
Page 10: Automatic Cool Down System
Automatic Cool Down System (Thermal Relief) If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach a temperature between 140–145°F. -
Page 11: Pressure Washer Maintenance
Shipping Weight ..155 lbs. GENERAL MAINTENANCE RECOMMENDATIONS The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual. -
Page 12: Nozzle Maintenance
Purge Pump of Air and Contaminants To remove air from the pump, follow these steps: • Set up the pressure washer as described in “Preparing Pressure Washer For Use”. Connect the water supply and turn water on. • Pull the trigger on the spray gun and hold. -
Page 13: Operation
Reconnect the nozzle extension to the spray gun. Reconnect the water supply, turn on the water, and start the engine. Test the pressure washer by operating with each of the Quick Connect nozzles. O–Ring Maintenance Through the normal operation of your pressure washer, o–rings, which keep the connections of the hoses and spray... - Page 14 Snapper 3500 PSI Pressure Washer NOTES...
-
Page 15: Troubleshooting
Engine will not start; or starts and runs rough. Engine shuts down during operation. Engine lacks power. Engine “hunts” or falters. Snapper 3500 PSI Pressure Washer Cause Low pressure nozzle installed. Water inlet is blocked. Inadequate water supply. Inlet hose is kinked or leaking. -
Page 16: Exploded View - Unit
Snapper 3500 PSI Pressure Washer EXPLODED VIEW — UNIT... -
Page 17: Parts List - Unit
23 190667GS MANUAL, Owners 24 B3858GS ASSY., Wand Ext. with QD 25 MS6321 MANUAL, B&S, Vanguard 26 BB3061BGS OIL BOTTLE Snapper 3500 PSI Pressure Washer Item Part # 27 188287GS 28 B5830GS 29 188194GS 30 71693GS 31 27007GS 33 185805GS... - Page 18 Snapper 3500 PSI Pressure Washer EXPLODED VIEW — PUMP...
- Page 19 Screw 186385GS Plug 134B2327GS O-Ring 116B2126GS O-Ring 142B2126GS Screw 150B2126GS Flange 139B1410GS O-Ring 138B1410GS Seal 137B1410GS Bearing 152B2126GS Grub Screw 186386GS Shaft 136B2327GS Plug 139B2327GS Pump Head 159B2327GS Washer 140B2327GS Screw B1554GS Thermal Relief Valve Snapper 3500 PSI Pressure Washer...
- Page 20 Snapper 3500 PSI Pressure Washer EXPLODED VIEW — UNLOADER...
- Page 21 Suction Fitting 240B2327GS O-Ring 239B2327GS Washer 238B2327GS Bypass Fitting 237B2327GS Washer 236B2327GS Inlet Bolt 248B2327GS Plug 155B2327GS Screw 246B2327GS 245B2327GS Knob 243B2327GS Housing 244B2327GS 242B2327GS Spring Guide 95320GS Garden Hose Connector 95458GS Quick Connect Connector Snapper 3500 PSI Pressure Washer...
- Page 22 Snapper 3500 PSI Pressure Washer NOTES...
- Page 23 Snapper 3500 PSI Pressure Washer NOTES...
-
Page 24: Limited Warranty
