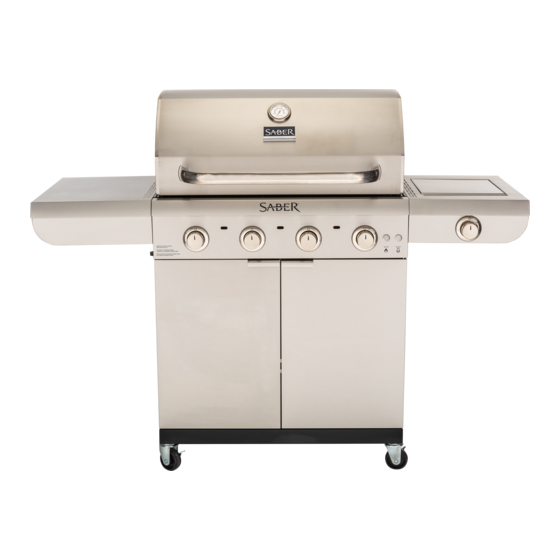

SAB E R SE LECT
4-BURNER GAS GRILL
GRIL À GAZ À 4 BRÛLEURS
4-QUEMADORES PARILLA DE GAS
FOR OUTDOOR USE ON LY
POU R USAG E E N M I LI E U EXTÉ RI E U R U N IQU E M E NT
ESTE J U EGO SÓLO SE PU E DE USAR EXTE RIORS
Easily converts from (LP) liquid propane to (NG) natural gas
Convertit facilement de forme (LP) propane liquide (NG) de gaz naturel
Se convierte facilment de propano liquido (LP) a gas natural (NG)
CONVERSION KIT | ENSEMBLE DE CONVERSION | KIT DE CONVERSIÓN
# A00AA5417
If you have questions or need assistance during assembly, please call 1-888-94-SABER 1-888-947-2237
Si vous avez des questions ou besoin d´aide pendant l'assemblage, S'il vous plaît appelez 1-888-94-SABER 1-888-947-2237
Si tiene alguna pregunta o si Necesita ayuda durante el Ensamblado, llámenos Al 1-888-94-SABER 1-888-947-2237
12/16/20 • G543-001-010801
P RODUCT G U I DE
G U I DES DES P RODU ITS
GUíA DEL PRODUCTO
M O D EL
M O D ÈLE
M O D ELO
S E R IAL N U M B E R
N U MÉ R O D E S É R I E
N Ú M E R O D E S E R I E
• See rating Label on grill for serial number.
• Ce numéro se trouve sur l´étiquette
signalétique sur i´appareil.
• El número de serie se encuentra en la etiqueta
deespecificaciones de la parrilla.
DATE P U R C H AS E D
DATE D 'C HAT
F E C H A D E C O M P R A
TOOLS REQU I RE D FOR ASSE M B LY:
• Adjustable wrench (not provided)
• Screwdriver (not provided)
• 7/16" Combination wrench (not provided)
OUTI LS REQU IS P OU R L'ASSE M B LAG E:
• Clé réglable (non comprise)
• Tournevis (non comprise)
• Clé mixte de 7/16 po (non comprise)
H E RRAM I E NTAS N ECESARIAS PARA E L MONTAJ E:
• L l a ve aj u s t abl e (n o i n c l u i do )
• D e s to rni l l a do r (no i n c l u i do )
• 7 / 16" Co m b i n ac i ó n l la ve (n o i n cl ui d o)
©
2020 Saber Grills, LLC. Columbus, GA, 31902. Printed in China. Imprimé en Chine. Impreso en China.
R52SC0421
