Summary of Contents for Focus Emifocus

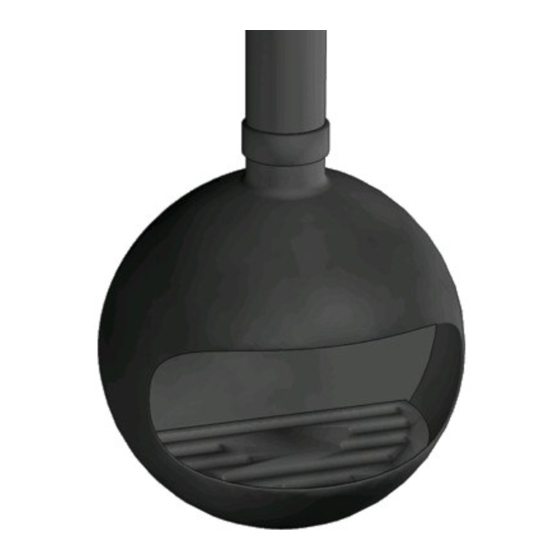

- Page 1 EMIFOCUS ____ DESIGN INSTALLATION & OPERATING MANUAL Tested by OMNI-Test Laboratories, Inc. and approved to UL 737-2011 and ULC S627-00 US EPA exempt Report Number : 0304WF008S This document was packed with the appliance. KEEP THESE INSTRUCTIONS FOR FUTURE USE...
-
Page 2: Table Of Contents
Introduction Please read this entire manual before you install and use your focus fireplace. Failure to follow instruction may result in property damage, bodily injury or even death. When this Specifications room heater is not properly installed, a house fire may result. -
Page 3: Specifications
• Using make-shift compromises during installation can cause damage. Such installation is not covered under focus limited warranty. • When this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. -
Page 4: Roof Outlet Requirement
Specifications ROOF OUTLET REQUIREMENT CHIMNEY REQUIREMENT Do not connect this unit to a chimney flue serving another appliance! Émifocus requirement: the total length of flue (inside + outside) must be 10 feet minimum (13 feet for an installation less than 3 miles from the ocean or if a 30°... -
Page 5: Structural Requirement
FRESH AIR INTAKE For optimum functioning, focus requires a fresh air intake in the room (ideally at the back of the fire). We recommend deflect-O A0684 semi rigid aluminium duct. The wall plate is supplied with a fresh air control. -
Page 6: Clearances To Combustibles
Specifications CLEARANCES TO COMBUSTIBLES A. CLEARANCES TO FLOOR AND CEILING non combustible surface R ≥ 1.2 surface non combustible R ≥ 1.2 combustible sub floor IMPORTANT sol combustible no radiant floor heating tubing under the fireplace ! pas de chauffage au sol ! non combustible surface R ≥... -
Page 7: Clearances To Side Walls
Specifications B. CLEARANCES TO SIDE WALLS 1’’ rockwool insilation (Roxul) attached to backside of cement board. 1/2’’cement board 25 mm isolant laine de roche (Roxul) (Durarock) positionné juste derrière le panneau de ciment. 13 mm panneau de ciment 2x6’’ metal studs supporting (Durarock) wall mounting plate. -
Page 8: Installation
Installation INCLUDED PARTS, MATERIALS AND REQUIRED TOOLS FOR INSTALLATION • Appliance and designated parts are the hearth, grate, wall mounting anchor plate, black steel flue pipe, focus kit (protective glove, mounting gloves, can of touch-up paint). • Required tools: drill, M8 allen key, level, screwdrivers, M12 key, scaffolding, refractory compound. -
Page 9: Wall Mounting Installation
Installation B. WALL MOUNTING INSTALLATION 6’’ diameter Ø150 mm b: fresh air intake arrivé d’air frais... -
Page 10: Flue Pipe Installation
Installation C. FLUE PIPE INSTALLATION damper clé de tirage 6’’ diameter Ø150 mm 7-7/8’’ 200 mm fresh air 24-13/16’’ intake adjustement 630 mm ajustement de l’arrivé d’air frais... -
Page 11: Insulated Chimney Connection To Focus Flue
Installation D. INSULATED CHIMNEY CONNECTION TO FOCUS FLUE class A insulated chimney pipe 8" id - 10" od cheminée isolée: this point 3’’ mini. 200 int./250 ext. below finished ceiling ce point est à 75 mm mini. dessous le plafond fini... -
Page 12: Operating Instructions
Operating instructions CAUTION HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. STORAGE / USE OF FLAMMABLE LIQUIDS Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or « freshen up » a fire in this heater. -
Page 13: Fire Screen
• To clean off (with a damp sponge and/or a dry cloth) any dirt collected during transport or installation. • Actual scratches on painted designs can be retouched solely with the expressly provided focus paint. If this is necessary, ventilate the area thouroughly before lighting your fire to disperse any fumes generated in the spraying process. -
Page 14: Building, Starting And Maintaining The Fire
The Emifocus damper has four positions. The damper is in the same direction as the handle: when the handle is vertical, the damper is fully open. Handle can rotate at 30°, 60° and 90° (horizontal : closed). In closed position the damper obturates by 75% the flue section. -
Page 15: Maintenance
CHEMICAL SWEEP NOT PERMITTED: ONLY MECHANICAL SWEEP ALLOWED! The focus steel flue, stainless steel flue liner or insulated flue chimney system absolutly must be swept with a nylon head sweeper. Never use metal head sweepers! Damage caused from non-observance of this caution is not covered under focus... -
Page 16: Surfaces
Warranty All of our focus models are guaranteed against any defect in design, construction, or manufacture, and guaranteed to function properly for 5 years from date of order. Our product guarantees are applicable only when our fireplaces have been installed with respect to all local building codes and with strict attention to the technical details outlined in our Plan Study as well as our installation, maintenance, and userʼs manuals. -
Page 17: Annex
Annex HOW TO DETERMINE IF ALTERNATE FLOOR PROTECTION MATERIALS ARE ACCEPTABLE All floor protection must be non-combustible (i.e., metals, brick, stone, mineral fiber boards, etc.). Any organic materials (i.e., plastics, wood paper products, etc.) are combustible and must not be used. The floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity). - Page 18 Note...
- Page 19 Note...
- Page 20 cheminées contemporaines V. 3 - Janvier 2020...
