Summary of Contents for Focus MEIJIFOCUS

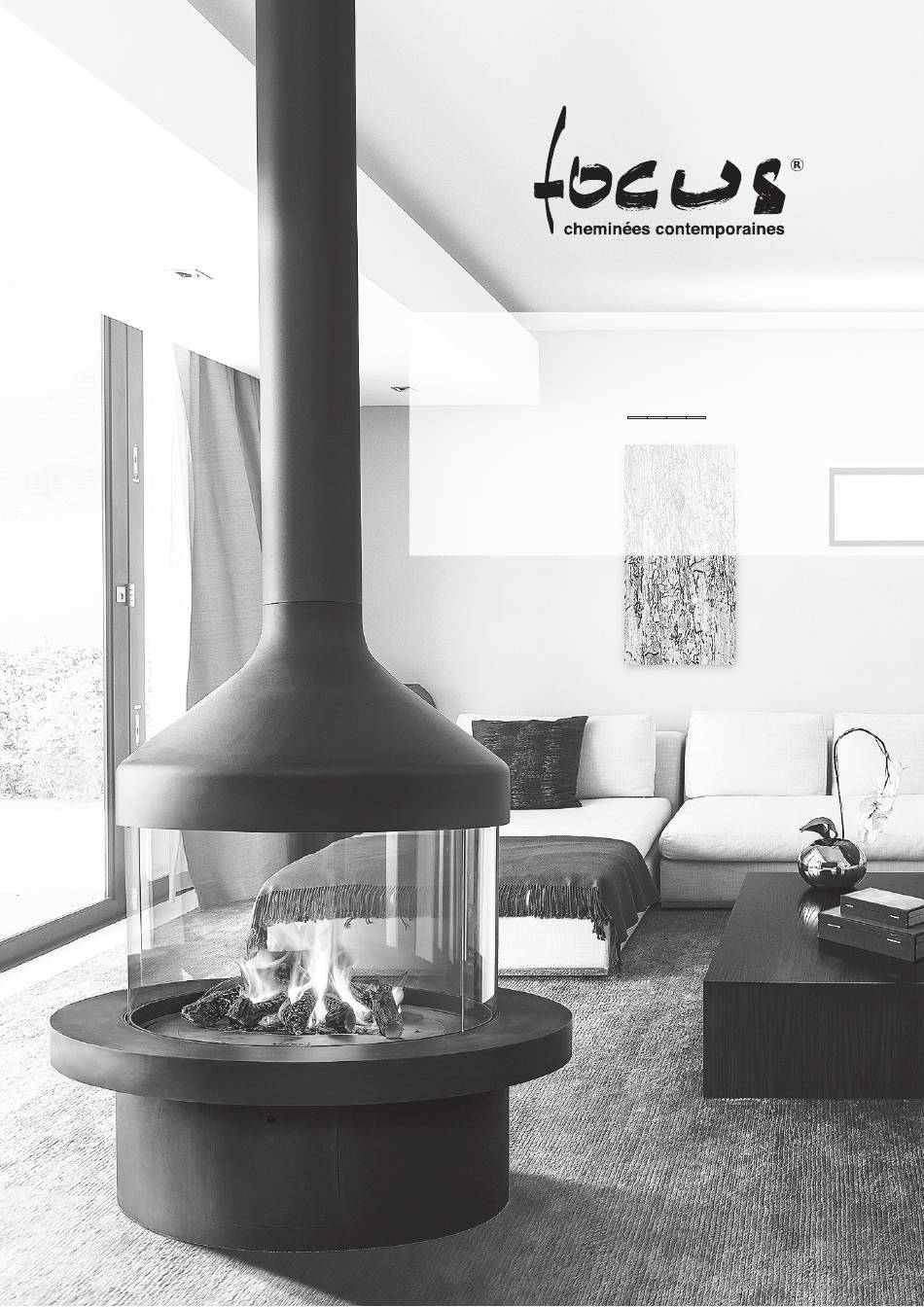

- Page 1 MÉIJIFOCUS ____ INSTALLATION, SERVICING AND USER INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents IMPORTANT This appliance should only be installed and serviced by a qualified engineer (i.e. Corgi registered engineer). These instructions should be left with the customer for future reference. GENERAL SECTION SERVICING DIMENSIONS OF FIRE TROUBLESHOOTING TECHNICAL INFORMATION A. THE GAS PILOT WILL NOT IGNITE OR STAY LIT ? GENERAL POINTS FOR THE PURCHASER B. -
Page 3: General Section
General section DIMENSIONS OF FIRE TECHNICAL INFORMATION · Natural: G20 / I2H Gas Type: · LPG: G31 / I3P / I3BP Gas Input Gross: See section 2. Pipe connection: 8mm via supplied adapter. Manual Option: Variable rotary gas control with integrated Piezo Ignition, permanent pilot facility and flame failure safety device. -
Page 4: User Instructions
User instructions INFORMATION FOR INSTALLERS SITING THE APPLIANCE DIAMETRE: 180-250 mm The burner is designed to run on Natural or LPG gas. The burner unit is not interchangeable between gas types. The fire is an open radiant log effect appliance which can be placed directly inside any fireplace opening of the dimensions stated within the installation instructions. -
Page 5: Flue Connection
Please ensure that when fitting the ceramics, that you do not obstruct the pilot. CONNECTING THE GAS SUPPLY Focus accept no responsibility for any injury sustained whilst handling hot ceramics. Ensure that the gas supply pipework is capable of delivering the required volume of gas in accordance with the relevant Standards. -
Page 6: Pebble Arrangement
User instructions Next place the Split small log leaning on the larger log, as shown in the B. PEBBLE ARRANGEMENT photo below. Parts – 22 ceramic pebbles. Place the Ceramic Mat on the Burner Top, aligning the holes with those on top of the burner. -
Page 7: Installation Instructions
Installation instructions OPERATING THE FIRE Software Version Press buttons simultaneously. Software version is displayed. Handset Model Number IMPORTANT Press buttons simultaneously. Handset model number is displayed. It is very important to read these instructions thoroughly before lighting the fire. Deactivate Functions Please explain to the customer these lighting and extinguishing 1. - Page 8 User instructions Figure 01: 8-symbol Display C. SETTING FAHRENHEIT OR CELSIUS E. CHILD PROOF To change between °C and °F, press buttons simultaneously. To activate press buttons simultaneously. displayed NOTE: Choosing °F results in a 12 hour clock. handset is rendered inoperable, except for the Choosing °C results in a 24 hour clock.
- Page 9 User instructions Handset One-Button Operation TO TURN OFF FIRE (Default Setting) · Press Handset button until two short beeps and · Press a blinking series of lines confirms the start button to turn OFF. sequence has begun; release button. · Main gas flows once pilot ignition is NOTE: A new ignition is possible after the OFF confirmed.
- Page 10 User instructions H. COUNTDOWN TIMER J. THERMOSTATIC MODE ON/SETTING: 1. Press and hold button until displayed, Press button. displayed, preset and hour flashes. temperature displayed briefly, and then room 2. To select hour press button. temperature displayed. 3. To confirm press button.
- Page 11 User instructions Default settings: NOTE: Either continue to PROGRAM 2 and set on and off times or stop ON TIME (Thermostatic) TEMPERATURE: 21 °C (70 °F) programming at this point, and PROGRAM 2 remains deactivated. OFF TIME TEMPERATURE: “ ” (pilot flame only) NOTE: PROGRAM 1 and 2 use the same on (Thermostatic) and off and Daily Timer ( , , , , , , ...
-
Page 12: Manual Turn Off
User instructions MANUAL TURN OFF In the event that the appliance needs to be turned OFF manually, for instance, if the remote control is lost or the batteries become totaly flat, the control valve must be accessed and the switch flipped to OFF (marked “0”). -
Page 13: Servicing
Servicing SERVICING INSTRUCTIONS IMPORTANT Any intervention on the appliance must be carried out by a gas approved technician. This appliance should be serviced annually. These instructions are meant to be used in conjunction with the normal servicing practices that a Corgi authorised installer would use. TROUBLESHOOTING 1. - Page 14 Note...
- Page 15 Note...
- Page 16 Atelier dominique imbert S.A.S. au capital de 102 355 euros 34380 Viols-le-Fort France Tel. : 00 33 (0)4 67 55 01 93 Fax. : 00 33 (0)4 67 55 77 77 Web : www.focus-creation.com Email : info@focus-creation.com V. 01 - July 2017...
