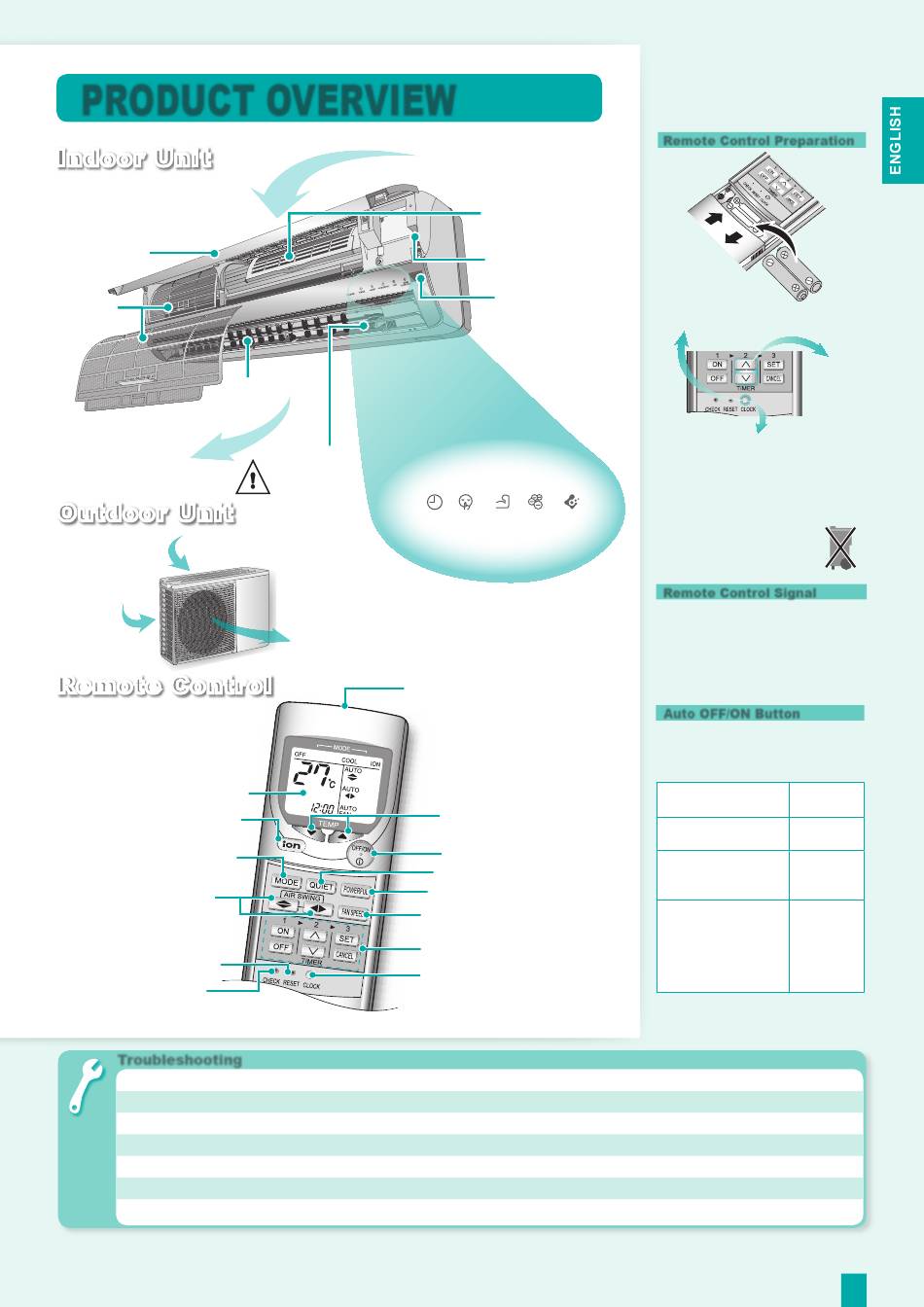

PRODUCT OVERVIEW

Indoor Unit
Front panel
Air filter
Airflow direction
louver
Discharged air

Outdoor Unit

Air inlet
Air inlet
(side)

Remote Control

LCD display
Ion operation
Operation mode
Airflow direction
adjustment
Memory reset
Check
Troubleshooting
Operation delayed for few minutes after restart.
Sound like water flowing during operation.
Mist emerges from indoor unit.
Noisy during operations.
Remote control/display does not work.
The unit cannot operate.
Outdoor unit emits water/steam.
Ionizer
Do not touch
during operation
POWER
(rear)
Air outlet
Transmitter
Air intake
Supersonic air
purifying device
Auto OFF/ON
button
Receiver
Indicator
TIMER
QUIET POWERFUL ION
SUPER
ALLERU-BUSTER
Temperature setting
Off/On
Quiet operation
Powerful operation
Fan speed selection
Timer setting
Clock setting
This is a normal self protection control.
Caused by refrigerant flow inside.
Condensation effect due to cooling process.
Installation work could be slanted or front panel didn't close properly.
Check whether batteries are correctly inserted or need replacement.
Check either circuit breaker is tripped or timer is used correctly.
Condensation or evaporation happens at piping surface.
■ About
Remote Control Preparation
2. Insert
batteries
1. Pull out
(AAA or
R03)
3. Press CLOCK button
4. Set
current
time
5. Press again to confirm
• Timer operation will be based on
current time set.
• The batteries can be used for
approximately 1 year.
• The batteries must be
recycled or disposed of
properly.
Remote Control Signal
• Make sure it is not obstructed.
• Maximum distances: 10m.
• Certain fluorescent lights may
interfere with signal transmission.
Consult your dealer.
Auto OFF/ON Button
• To operate the unit if the
remote control is misplaced or
malfunctioning.
Operation
Action
mode
Automatic
Press once
Operation
Press until "beep"
Cooling
sound and release.
Operation
Press until "beep"
sound and release.
Heating
Press again until
Operation
"beep-beep" sound
and release.
• To OFF, press again the Auto OFF/
ON button.
3
