Front View; Installation - Control 4 T4 Series Installation Manual

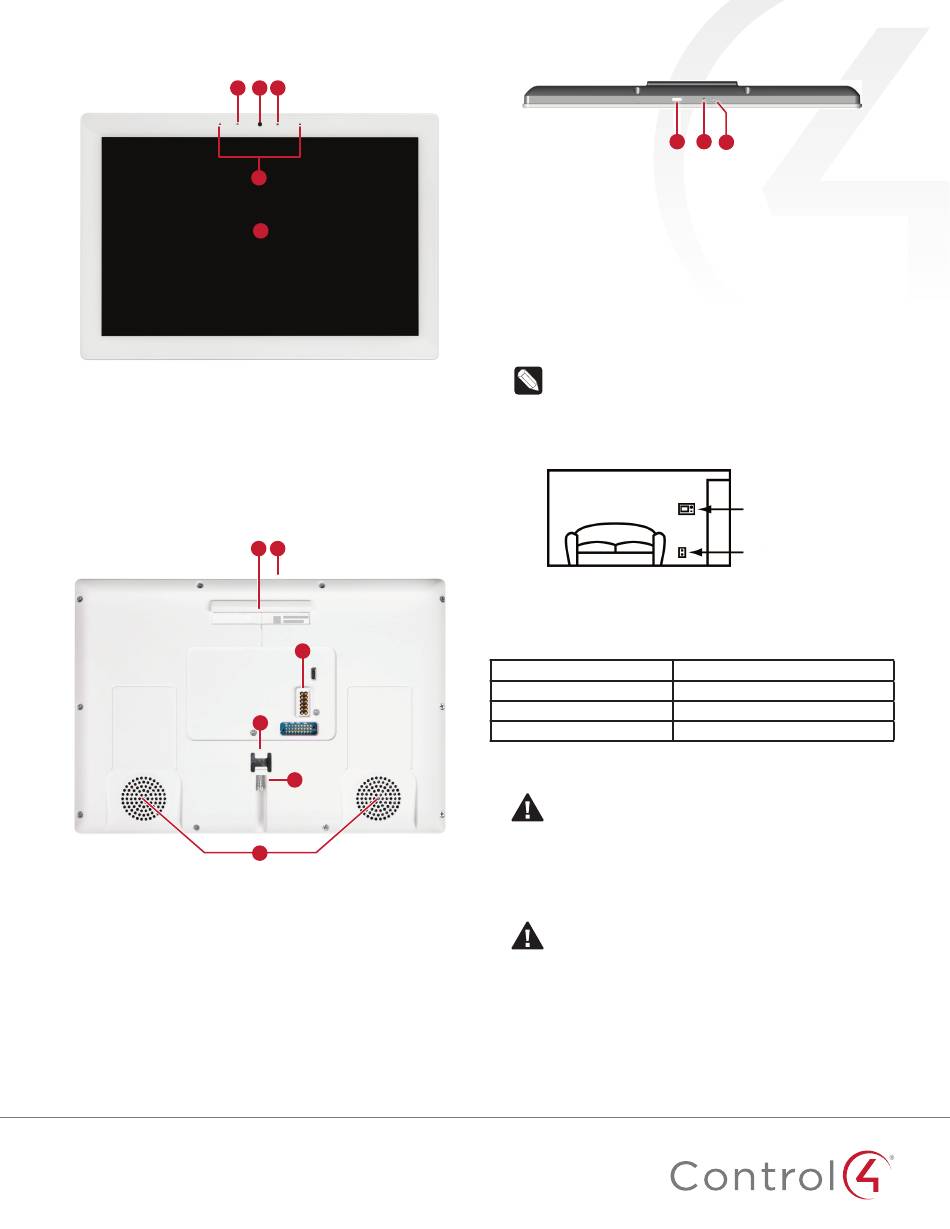

Front view

A B C
A Ambient light sensor
B Camera
C Indicator LED (startup, camera in use, audio listening)
D Stereo microphones
E 8" or 10" diagonal, capacitive 1920 × 1200 display
Back view
F Upper mount tab
G Power—Press this button to turn the touchscreen on, or press
and hold it to turn the touchscreen off.
H Docking electrical connector
I Locking tab
J Set screw—secures the touchscreen to the power box.
K Stereo speakers
3
D
E
F G
H
I
J
K
Top view
L Power button. Press to turn the display on and off, press and
hold to select Power off or Restart, or press and hold for 10
seconds to reset the device.
M Center pinhole. Not used.
N Reset pinhole. Press to reset, or press and hold until "Erasing"
appears on the screen to restore factory defaults.
Touchscreen placement
Place the touchscreen in a convenient location at eye level,
typically near the entrance of the room, about 145 to 155 cm
(57 to 61 inches) from the floor (Figure 3).
Note: Consider the camera on the panel and the height
of the people in the home who will use the camera for
Video Intercom.
Important: The top of the touchscreen must be
mounted no higher than 2 m (6.6 ft.) above the floor.
Figure 1: Touchscreen placement
LED indicator
The LED on the touchscreen indicates the camera status of the
camera and booting information as described in the next table.
Camera/LED color state
Off
Green
Green (momentary blink)

Installation

Important! Before you can complete the instructions
below, you must have an 8" or 10" Touchscreen wall box
installed according to the documentation provided in
the wall box kit. See "Accessories" for details.
Important ! Avant de lire les instruction ci-dessous,
il vous faut un support mural installé suivant la
documentation fournie avec le kit du support mural. Plus
de détails dans la partie << Accessoires >>.
Important! When cutting the opening for the wall box,
do not cut the opening too large. Be conservative and
cautiously enlarge it as needed.
Important ! En coupant l'ouverture pour le support
mural, ne faites pas une ouverture trop grande. Soyez
prudent, et agrandissez la avec précaution.
L M N
Touchscreen
Power source for
PoE injector
Touchscreen status
Camera is off
Camera is on
Touchscreen is booting
