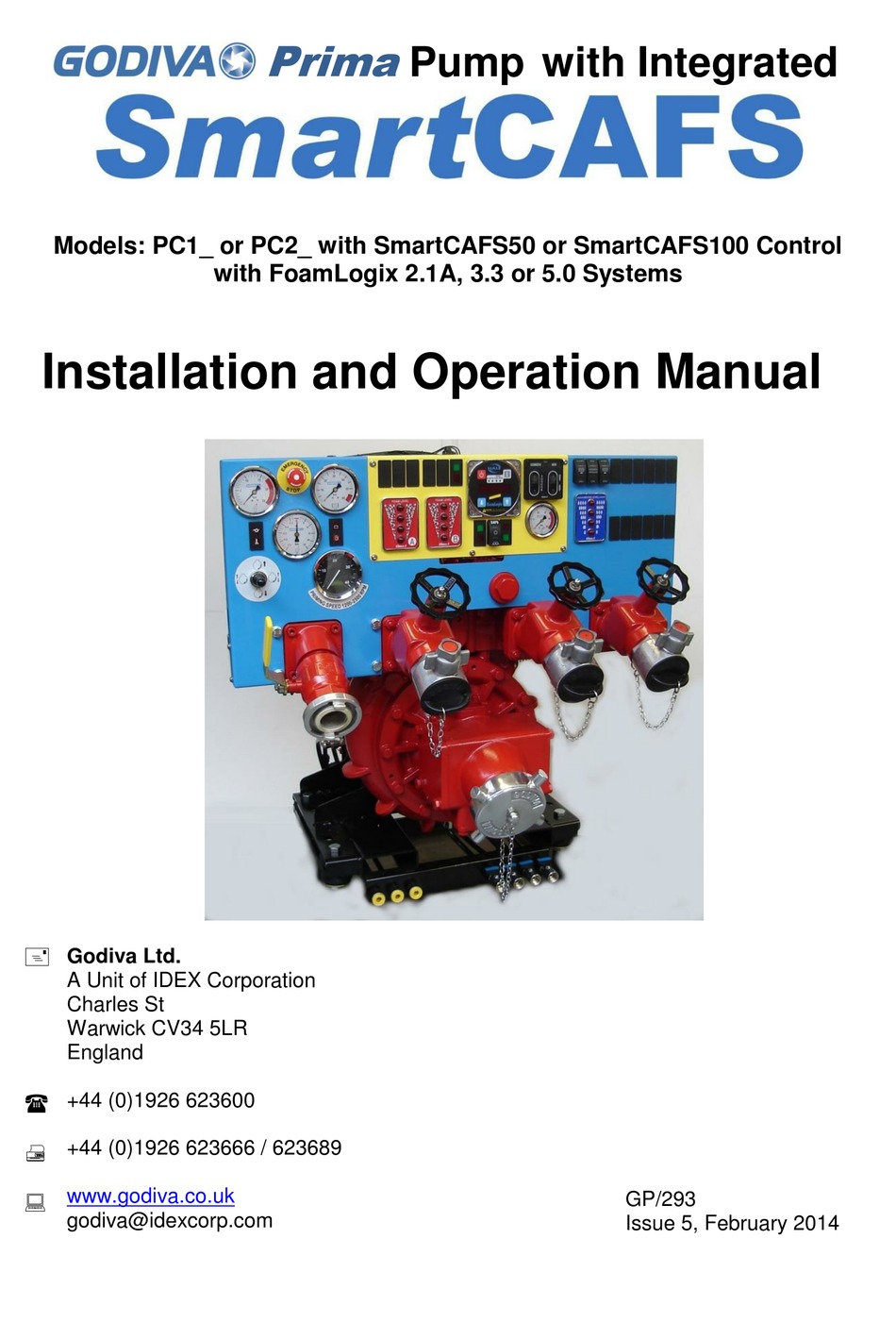

Models: PC1_ or PC2_ with SmartCAFS50 or SmartCAFS100 Control
Installation and Operation Manual
Godiva Ltd.
A Unit of IDEX Corporation
Charles St
Warwick CV34 5LR
England
+44 (0)1926 623600
+44 (0)1926 623666 / 623689
www.godiva.co.uk
godiva@idexcorp.com
Prima
with FoamLogix 2.1A, 3.3 or 5.0 Systems
Pump with Integrated
GP/293
Issue 5, February 2014
