Summary of Contents for Yealink UVC30

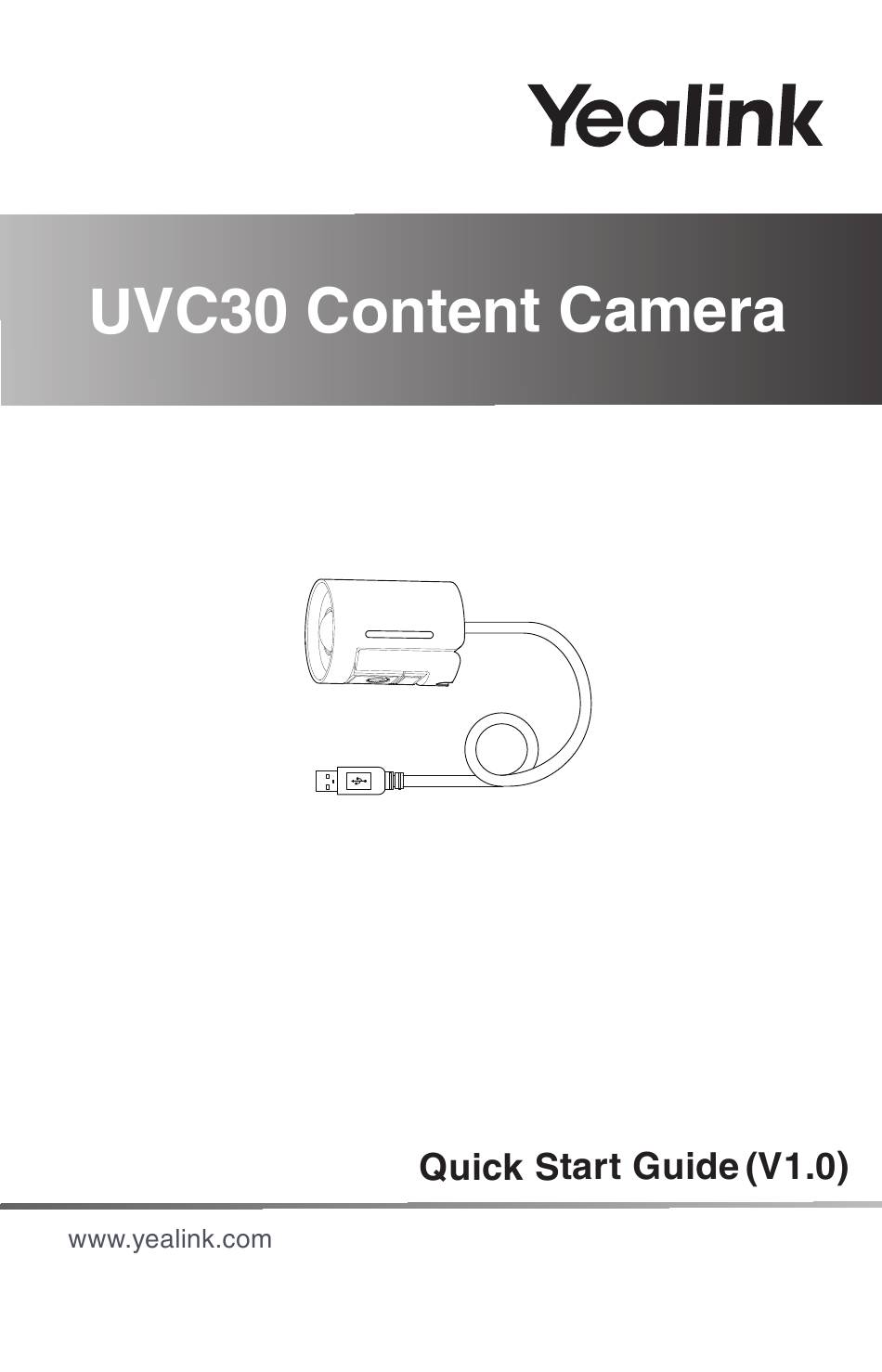

- Page 1 English | 简体中文...
- Page 2 Package Contents UVC30 Room Mounting Bracket and Accessories Screwdriver Cable lock box 3M Velcro 5m EXT L-shaped Cable Lock Box Quick Start Guide USB Cable Black Tape×4 When the whole wall is a whiteboard, you can use the L-shaped tapes to mark the four corners of the whiteboard, so that the camera adapts according to the limited range.
- Page 3 3. Assemble the content camera (Recommended) Mount on a wall 90° Hole depth: 30mm Hole diameter: 6mm Adjust the camera angle. The camera can be routed down or towards the ceiling.
- Page 4 The UVC30 Room is upgrading firmware. The UVC30 Room is in recovery mode and the firmware has not Flashing red been upgraded. Using Your Conent Camera For more information on how to use your content camera, please refer to Yealink RoomConnect User Guide.
- Page 5 包装清单 UVC30 Room 支架和配件 螺丝刀 USB锁线盒 3M 魔术贴 L型黑色胶带×4 USB锁线盒 快速入门指南 USB 延长线 当整面墙是白板时， 你可以使用L型胶带标定白板四个角， 摄像机根据限定的范围进行自适应。 安装白板摄像机 1. 安装支架 调整到支架最长的位置 。 1/4”-20 UNC screw 2. 安装金属伸缩杆 挂墙安装时， 请根据白板的宽度选择金属伸缩杆的长度： 白板宽度 选择金属伸缩杆的刻度 183cm （6ft） 64cm （2.10ft） 213cm （7ft） 75cm （2.45ft） 244cm （8ft）...
- Page 6 3. 固定白板Camera （推荐） 墙装 90° 打孔直径： 6mm 打孔深度： 30mm 调整摄像机角度。 摄像机可以朝下或者朝天花板走线。...
- Page 7 吊装 调整摄像机角度。 摄像机安装的高度需满足当地建筑规范。 若摄像机自带的USB线不够长， 请自行选择延长线方案。 在使用摄像机时可以先通过Teams Rooms app预览调整摄像机位置。 更多关于白板摄像机如何搭配 微软Teams Room使用， 请参阅 https://docs.microsoft.com/zh-cn/MicrosoftTeams/rooms/content-camera。 指示灯介绍 UVC30 Room指示灯介绍如下： 指示灯状态 说明 关闭 UVC30 Room 没有正确连接到mini-PC上或未处于正常工作状态。 绿灯常亮 UVC30 Room 处于正常工作状态。 橙灯闪烁 UVC30 Room 固件更新中。 红灯闪烁 UVC30 Room 进入恢复模式，还未固件更新。 使用白板摄像机 更多关于如何使用白板摄像机， 请参阅Yealink RoomConnect用户指南。...
- Page 8 As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments.
