City Line Panel
Amplifier
It is the module which incorporates the neccessary electronic circuits to make the audio system work.
The Universal Amplifier Cod.98589 used in the City Line panels features volume controls, both outdoor-dwelling and
dwelling-outdoor so that the installer can obtain the optimum volume, depending on the background noise and to avoid
feed-back from the other telephones. It works with FERMAX telephones as well as any other brand, so that you could
also use them for replacing.
The amplifier also includes a call tone generator that is sent to the called telephone when the corresponding push button
is being pushed. The Universal Amplifier Cod.98577 offers the same technical characteristic as the previous version,
but includes also a speech synthesizer that reminds the visitor to close the door after entering, by means of a message
in French, English, Spanish or German.
F U
PT1
P: FERMAX Telephone with
separated ground.
U: Universal Telephone with
common ground.
PT2
: Electronic Call
: Buzzer Call
Pushbutton
The outdoor panel incorporates a pushbutton for each of the dwellings in the building.
As the call tone generator forms part of the amplifier, the function of the pushbutton is that of sending that signal to the
corresponding dwelling.
Telecamera
In video door phone installations, it is neccessary to install a telecamera mo-
dule.
The Telecamera Ref. 8028, used in the CityMax systems, features a wide
range of vision as it incorporates a 3,6 mm wide angle lens.
The highly sensitive CCD sensor module which it incorporates works even
in complete darkness, thanks to some LED infra-red diodes which are invisi-
ble to the visitor.
A manual control called "pan & tilt" lets you focus on the best viewing point
once the camera is installed.
COMPONENTS OF THE DOOR PHONE
AND VIDEO DOOR PHONE SYSTEMS

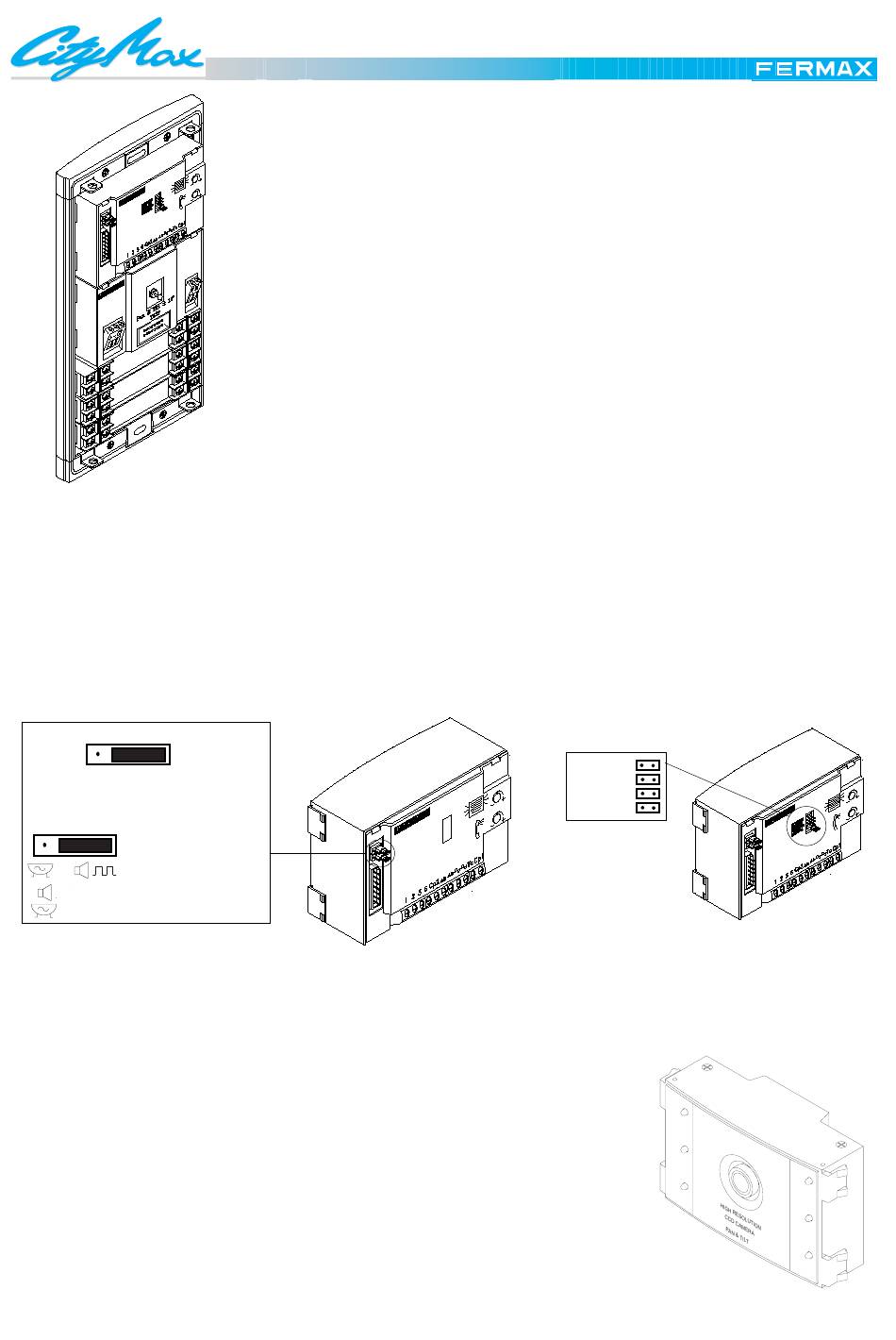

OUTDOOR PANEL
Depending on the number of dwellings and the characteristics of the installation, the
door phone or video door phone systems need one or more outdoor panels.
These include the pushbuttons used to call each of the dwellings and an amplifier
which incorporates the neccessary electronics to be able to establish the acoustic
communication with the telephones. In video door phone installations there is a
telecamera which allows the recollection of the video signal.
In the outdoor panels there exists the option of installing a Memokey Pack (an
electronic keypad), a Proximity Reader Pack, which allows the residents of the
building to open the door without having to use the key, or a Panoramic Cardholder,
which gives it a pleasant touch of distinction.
On pages 8, 9 and 10, you will find a complete description of all the combinations
and possibilities of the outdoor panels from FERMAX'S City Line series, suitable
for application with CityMax telephones and monitors.
The components which are fitted or can be fitted in a outdoor panel are the following:
Universal Amplifier
CHOOSE THE
LANGUAGE
DEUTCH
ENGLISH
FRANÇAIS
ESPAÑOL
Cod.98589
Universal Amplifier
Cod.98577
Telecamera
