Summary of Contents for iTOOLco SPRLT20K

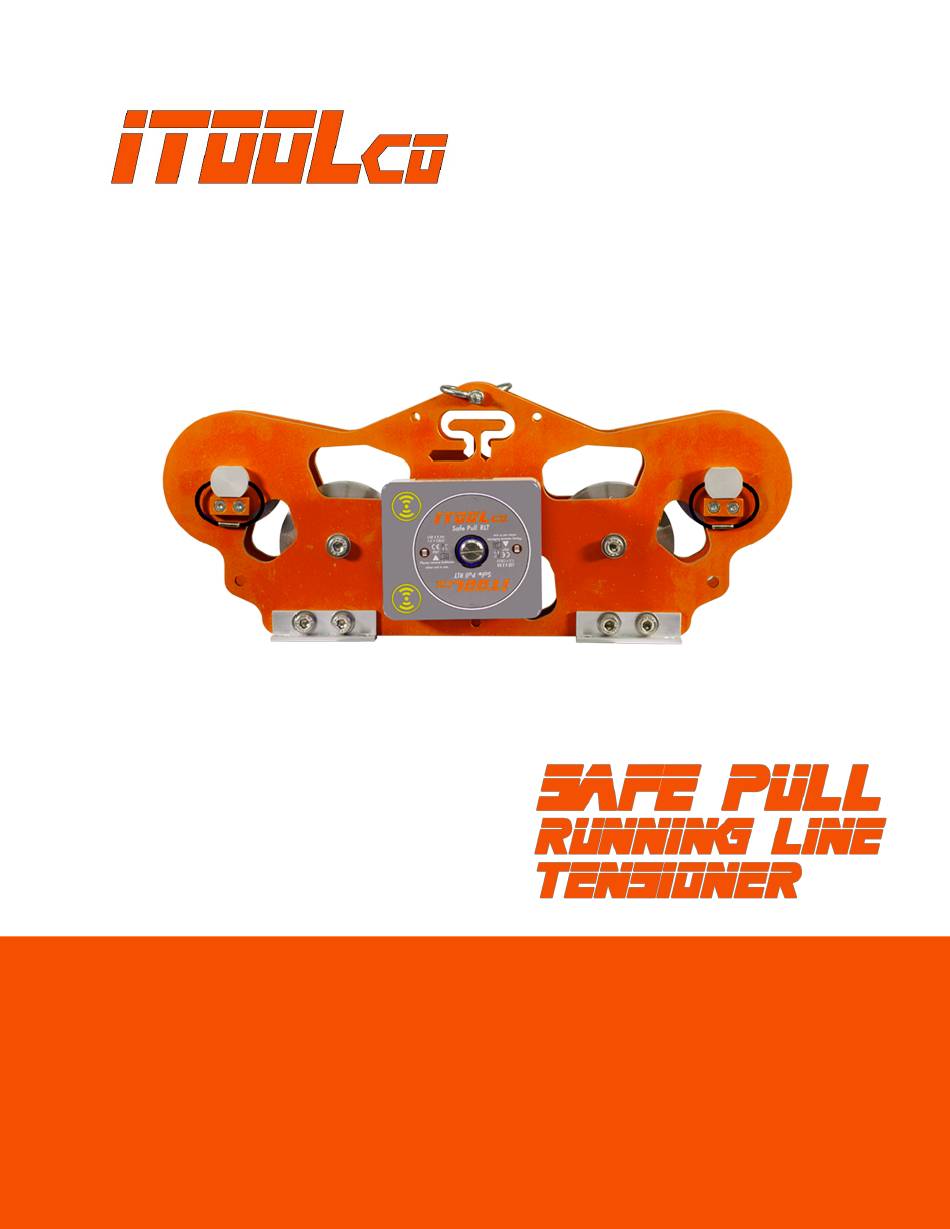

- Page 1 User’s Guide 1325 CARDEN FARM DRIVE | CLINTON, TN 37716 | 865.670.3713 | ITOOLCO.COM © 2020 PROPERTY OF ITOOLCO...
-
Page 2: Table Of Contents
SAFETY FIRST ..............................3 SAFETY ALERT SYMBOLS ..........................4 IMPORTANT SAFETY INFORMATION ......................5 SET UP AND OPERATION ..........................7 LIMITED WARRANTY: ITOOLCO SAFE PULL RUNNING LINE TENSION METER ..........13 ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 2... -
Page 3: Safety First
There are numerous government and industry standards that cover products manufactured and sold by iTOOLco. This document makes no attempt to reference all of them. We do reference standards that are most current like ASME B30.26-2010 “detachable load indicating devices.”... -
Page 4: Safety Alert Symbols
Hazards that, if not avoided, COULD result in severe injury or death. CAUTION Hazards or unsafe practices that, if not avoided, MAY result in injury or property damage. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 4... -
Page 5: Important Safety Information
Do not use this tool near live circuits. Shut off and lock out power when working near existing circuits. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 5... - Page 6 Make sure that the user keeps a good overview of the work area. Wear appropriate personal protective equipment (PPE) at all times. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 6...
-
Page 7: Set Up And Operation
Safe Pull Running Line Tension Meter (2). Figure (3) shows how to attach shackles. If an articulated arm is required, please contact your local iTOOLco partner for more information. The chosen method depends on the possibilities and the surroundings on your worksite. - Page 8 Once the Safe Pull Running Line Tension Meter is anchored or fixed in place remove both top sheaves (1). Take care not to trap fingers when removing the sheaves (2). Wear appropriate PPE. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 8...
- Page 9 Running Line Tension Meter onto the lower three sheaves. Now, refit the sheaves. Put the handle/axle back in position and secure it with the lynch pin, as shown. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 9...
- Page 10 Apply loads slowly and avoid shock loads, make sure maximum rope speed is not exceeded. If any unexpected readings are encountered stop the rope and inspect your complete set up for any problems. ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 10...
- Page 11 Conditions of warranty: 1) The equipment is used as described exactly in the operators manual supplied. 2) While we make every effort to ensure each device is calibrated before dispatch, iTOOLco does not accept responsibility for inaccurate readings indicated by this equipment.
- Page 12 ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 12...
-
Page 13: Limited Warranty: Itoolco Safe Pull Running Line Tension Meter
If the part(s) if found to be defective, iTOOLco will refund freight charges paid by you in retuning the defective part(s) and prepay replacement part(s) freight charges. - Page 14 1325 CARDEN FARM DRIVE | CLINTON, TN 37716 | 865.670.3713 | ITOOLCO.COM © 2020 PROPERTY OF ITOOLCO ITOOLCO SAFE PULL USER’S GUIDE 2008SPRLTUG P a g e | 14...
