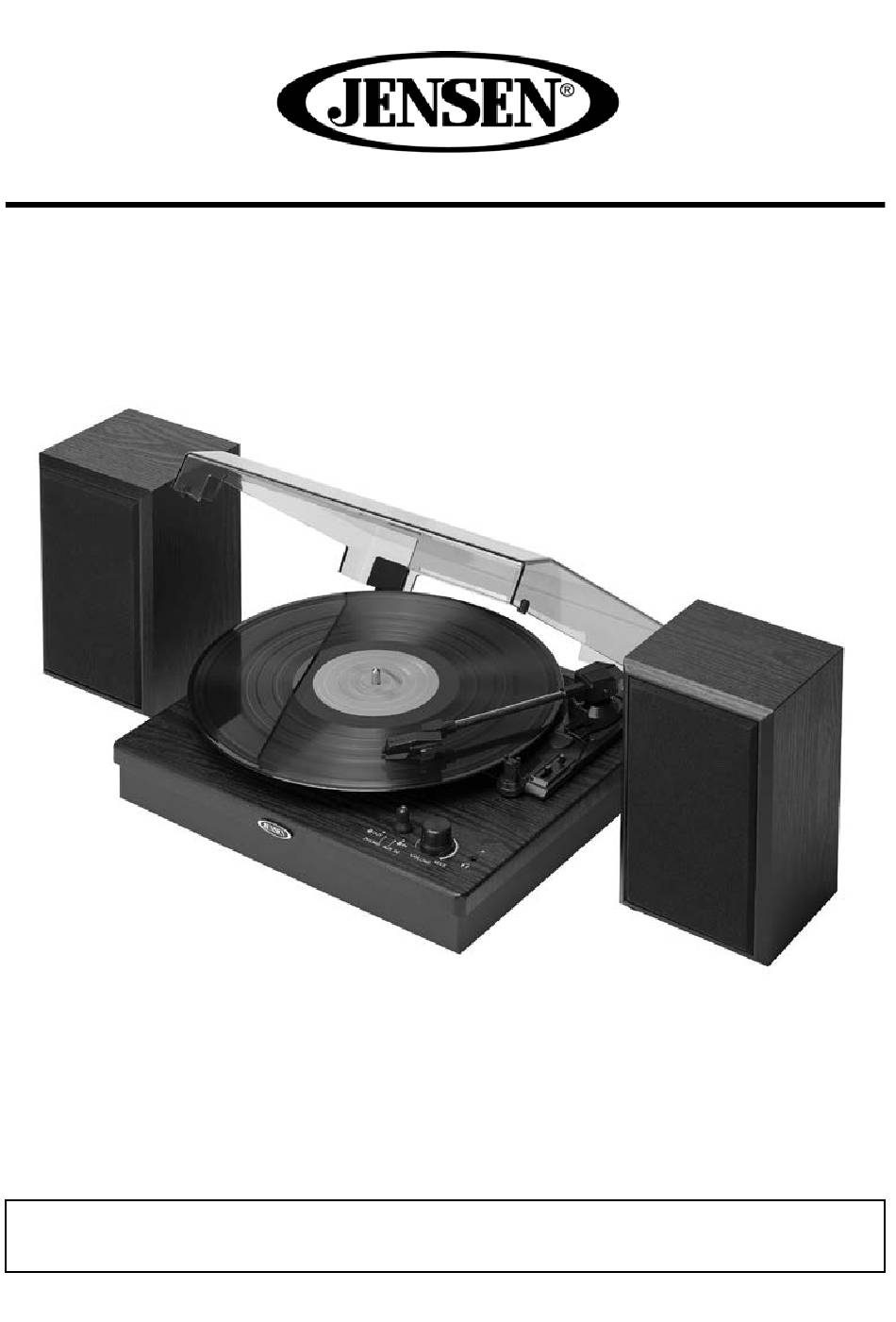

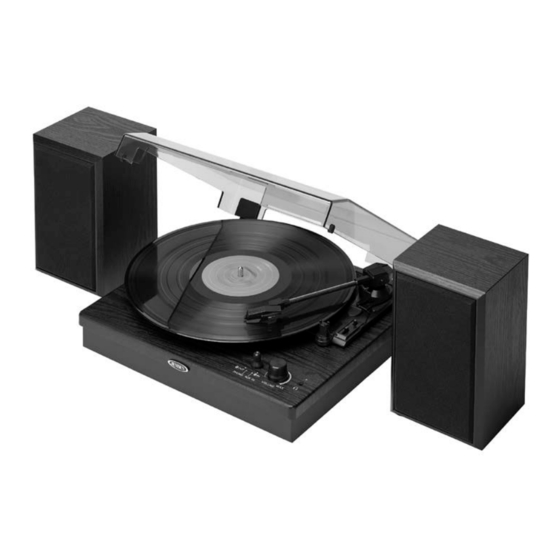

- Page 1 STEREO BLUETOOTH 3-SPEED TURNTABLE WITH SPEAKERS MODEL: JTA-315 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
WARNING TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The rating plate is located at the back panel of the apparatus. - Page 3 Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
-
Page 4: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS FCC ID: LMZ-60315 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Dear Jensen Customer
The serial number of this system can be found on the back cabinet of the turntable unit. You should note the serial number in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number : JTA-315 Serial Number : ___________________________... -
Page 6: Location Of Controls
LOCATION OF CONTROLS MAIN UNIT TOP PANEL TURNTABLE PLATTER TURNTABLE SHAFT 45 RPM ADAPTOR TONE ARM LIFT LEVER AUTO STOP ON/OFF SELECTOR 33/45/78 RPM SELECTOR TONE ARM TONE ARM LATCH STYLUS CARTRIDGE 10. POWER/FUNCTION INDICATOR 11. STEREO HEADPHONE JACK 12. POWER/VOLUME CONTROL 13. -
Page 7: Setting Up The System
SETTING UP THE SYSTEM The JTA-315 system is powered by an external AC adaptor with an output of DC 12V POWER CONNECTION 1. Connect the cord of the power adaptor to the DC IN JACK (#17) located on the back panel of the main unit. - Page 8 Note: You can ONLY adjust the volume using the volume control on your external Bluetooth device. Notes: • Place the Bluetooth device within 3 feet (1m) from the JTA-315 to enable them to pair correctly. • The JTA-315 stays in the pairing mode for only 30 seconds. If pairing is not properly completed within 30 seconds, repeat #2 to #4 of above steps again after turning all devices OFF.
-
Page 9: Aux In Operation
“JTA-315” under the available device list. Select "JTA-315" from the device list when it appears on your device's screen. If required, enter the pass code “0000” to pair (link) the "JTA-315" with your device. -
Page 10: Using Headphones
USING HEADPHONES Plug your headphones (not included) into the STEREO HEADPHONE JACK (#11) on the front panel of the Turntable Unit for private listening. After plugging in the headphones, the speakers will automatically be disconnected. WARNING : ALWAYS LOWER THE VOLUME LEVEL BEFORE PUTTING ON YOUR HEADPHONES, OTHERWISE YOUR HEARING COULD BE DAMAGED. -
Page 11: Specifications
SPECIFICATIONS AC/DC Adaptor Input: AC 100-240V ~, 50/60Hz, 0.8A Output: DC 12V Bluetooth Version v4.2+EDR Rated Audio Output Power 2 x 10Wrms Speaker Impedance 4 ohms, 10W * Design and specifications are subject to change without notice. TROUBLESHOOTING GUIDE For product technical support please contact Spectra Merchandising International Customer Service at 1-800-777-5331. - Page 12 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
