Simu SMC Installer Manual page 4

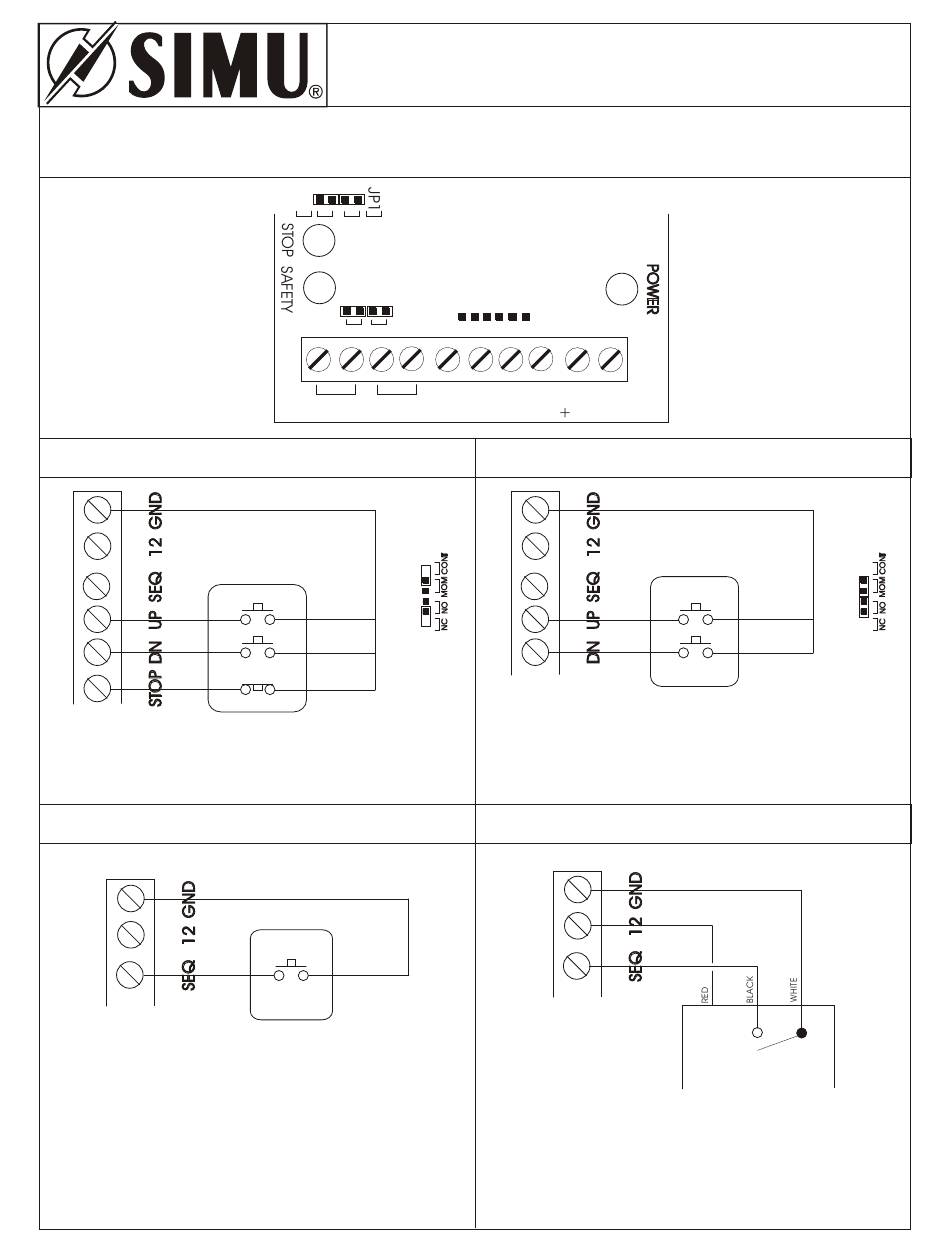

LOW VOLTAGE SWITCHING CONNECTIONS
3 BUTTON STATION
+ +
N.O.
N.O.
N.C.
3 BUTTON STATION
NOTES:
1) SHOULD BE USED WITH REVERSING SENSORS
2) SHOWN CONFIGURED FOR A N.C. STOP BUTTON
SEQUENCING CONTROL
+ +
NOTES:
1) CAN BE USED WITH ANY MOMENTARY, DRY
CONTACT SUCH AS KEY SWITCHES, CARD READERS,
RADIO CONTROLS, ETC..
2) TWO OR MORE SWITCHES CAN BE WIRED IN
PARALLEL.
3) CONTROL WILL FOLLOW A SEQUENCE WITH EACH
PULSE (UP , STOP , DOWN, STOP , UP , .....)
NC NO MOM CONT
J1
JP3 JP4
SE2 SE1 STOP DN UP SEQ 12 GND
JP1 JP1
N.O.
2 BUTTON STATION
+ +
N.O.
N.O.
2 BUTTON STATION
NOTES:
1) SHOWN REQUIRING CONSTANT PRESSURE ON THE
SWITCH FOR THE MOTOR TO OPERATE.
2) SWITCH MUST BE IN VIEW OF THE DOOR
SINGLE CHANNEL RADIO
+ +
NOTES:
1) WIRING SHOWN IS STANDARD BUT MAY VARY WITH
MANUFACTURER. CHECK INSTRUCTIONS WITH RADIO
RECEIVER FOR DIFFERENCES BEFORE WIRING.
INSTALLERS MANUAL
PAGE: 3 OF 5
JP1 JP1
1 2 3
RECEIVER
