1. Thank you. Thank you for purchasing the
PanaFlow HT ultrasonic flowmeter. Before removing
the PanaFlow HT system from the crate, please inspect
the flowmeter. Each instrument manufactured by GE
Measurement & Control is warranted to be free from
defects in material and workmanship. Before discarding
any of the packing materials, account for all components
and documentation listed on the packing slip.

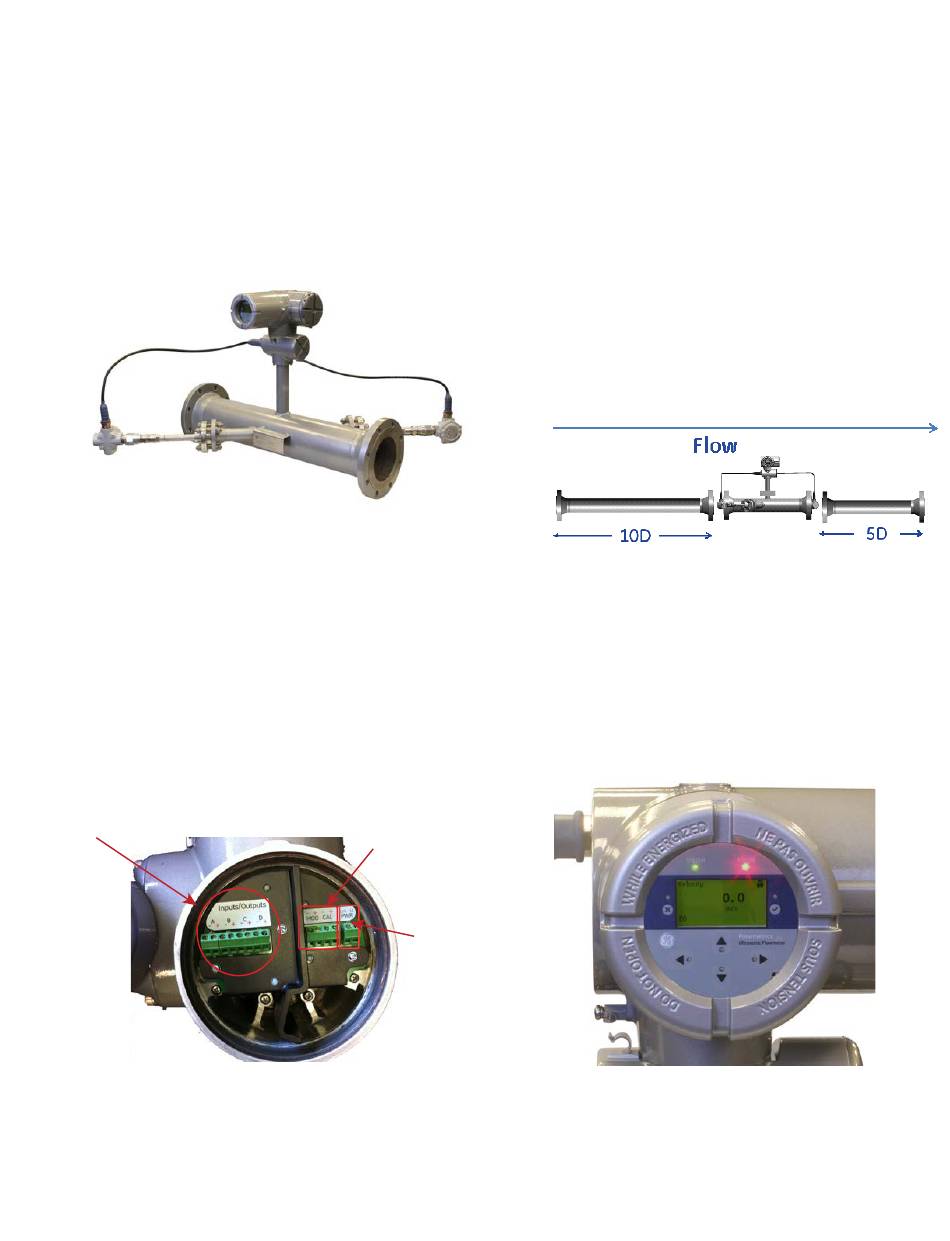

5. Communication and Power Wiring. The picture below
shows the communication and power wiring to XMT900
electronics. Make all communication wiring before wiring
the power terminals.
Once all wiring is complete, apply the power.
PIN Label
Description
1
A-
Analog Output A:4-20mA/HART Output(SIL) Negative
2
A+
Analog Output A:4-20mA/HART Output(SIL) Positive
3
B-
Analog Output B:4-20mA Negative
4
B+
Analog Output B:4-20mA Positive
5
C-
Digital Output C Negative
6
C+
Digital Output C Positive
7
D-
Digital Output D Negative
8
D+
Digital Output D Positive
WARNING! The PanaFlow HT flow transmitter can measure the flow rate of many fluids, some
potentially hazardous. Be sure to follow local safety codes and regulations for installing electrical
equipment and working with hazardous fluids or flow conditions.
2. Meter Installation. The ideal site is a straight section
of process pipe that meets the following criteria:
•
•
•
•
•
Terminal Block -Modbus/Calibration Connections
PIN Label
Description
1
MOD-
Modbus/Service Port Negative
2
MOD+
Modbus/Service Port Positive
3
CAL-
Calibration Port Negative
4
CAL+
Calibration Port Positive
Terminal Block - Power Connection(AC)
PIN Label
Description
1
L2/N
Neutral Connection
2
L1
Live Power Connection
Pipe section is horizontal and above ground.
Pipe section can accommodate the overall length of the
flowcell.
There is sufficient clearance for the transducers on
the sides of the meter (at the 3 o'clock and 9 o'clock
positions).
There are at least 10 pipe diameters of straight,
undisturbed flow upstream and 5 pipe diameters
of straight, undisturbed flow downstream from the
transducers.(See User's Manual.)
For remote-mounted electronics, the electronics
console should be located within 100 feet (30
meters) from the meter body. (See User's Manual.)
6. Programming & Testing.
The keypad and magnetic wand enable
programming of the instrument through the glass
faceplate without removing the cover. Thus, all
programming procedures may be performed while
the unit is installed in a hazardous area. See the
User's Manual for instructions on programming.
