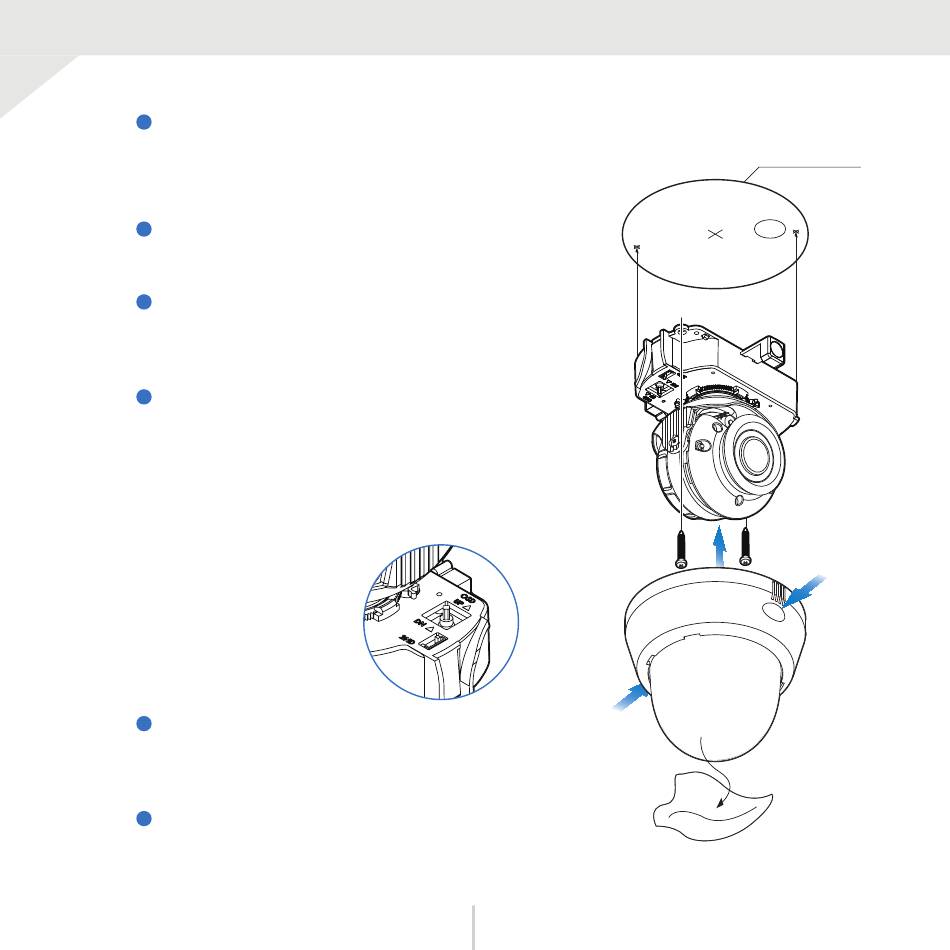

Installation - Instructions
Using the mounting template or your camera, mark
1
and drill the necessary holes in the mounting
surface.
Pull all necessary wires through and make the
2
proper connections. See pages 14.
Use the two (2) mounting screws to install the
3
camera onto the mounting surface. See page 15 for
tilting and pan adjustment options.
Adjust the camera's zoom and focus using the
4
manual levers at the base of the camera module.
Up: zoom in / down: zoom out
Left: near / right: far
Once the power focus and zoom adjustment is
completed, the camera's motorized lens will re-
adjust automatically.
When the installation is completed, place the
5
camera's dome over the camera's body by clicking
the dome into place.
Detach the protective cover from the dome to
6
complete the installation.
13
Mounting template
