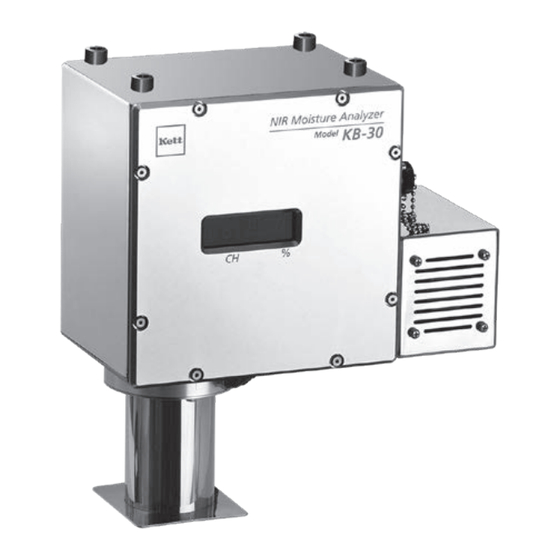

- Page 1 NIR Moisture Analyzer KB-30 Operating Manual Thank you for purchasing this product. Please read the operating manual carefully and use this product properly.
- Page 2 Safety Precautions FPL950701 Improper use of the NIR Moisture Analyzer in violation of the following safety notes may result in death, injury or damage to property due to fire, etc. While the safety of the product has been given considerable attention, read the precautions in the operating manual and use the instrument properly. ■ Observe the safety precautions. Read the precautions noted in the operating manual. The safety measure of the unit may be impaired if instructions are ignored during use. Do not use if broken. ■ If you suspect a problem or malfunction in the unit, make sure to contact the vendor. Meaning of warning symbols ■ In order to prevent damage resulting from erroneously operating the equipment, the following symbols are indicated in the operating manual and on the product. These symbols have the following meanings.
-
Page 3: Table Of Contents
Contents 1. Features ....................4 1-1. Measurement Principle ..............4 1-2. What's the Calibration Curve? ............4 2. Specifications ..................5 3. How To Use ..................... 6 3-1. Installation ..................7 3-2. Measurement ................... 7 4. How to connect the main unit to cable and Communication Function ..8 4-1. Specification of main unit connector ..........8 4-2. Specification of RS-232C Cable ............9 4-3. Communication Function ..............9 5. Troubleshooting ..................10... -
Page 4: Features
1. Features 1-1. Measurement Principle The absorption band of water has three wavelengths in the near-infrared spectrum area, 1.2, 1.45, 1.94 micrometers. When a sample is irradiated with light of those wavelengths, the sample will absorb light in an amount commensurate with its moisture content. The sample's moisture content determines how much light the sample will absorb. this moisture content can therefore be determined by measuring the light... -
Page 5: Specifications
2. Specification Measurement method NIR reflectance / Absorbance Light source Tungsten lamp Measurement distance 260mm ± 30mm Measurement diameter 25mm in diameter at 260mm distance Max. number of sensor heads Number of calibration curves Analog current output 4-20mA DC External communications RS-232C / RS-485 Ambient temperature / humidity : 5-40°C / 30-80% RH (without condensation) Power source AC 100 - 240V (50 / 60Hz) consumption Dimensions / Weight 268(W) × 306(H) × 140(D) mm, 7.0 kg (including the hood and cables) Reference plate, Power cable, RS-232C cable (2.9m), Accessories Bolts and washers set, Operation manual, PC software, Operation manual for PC software All stainless steel body, Special spec for high moisture object, Options Cooling box <Accessories>... -
Page 6: How To Use
KB-30 must be used in 5 to 35°C ambient temperature. If your environment is not in this range, it is required the system to separate the ambient temperature from environment temperature, such as optional Cooling box which can be receive the cooling dry air to inside. ● Moisture KB-30 must be used in the place where has no condensation. In case that KB-30 is used in the place where has much moisture or high salinity, there is a risk of corrosion and oxidation of the connector part and so on. Please do regular checks and cleaning. ● Protection against dust The air purge hood is installed KB-30. If you would like to use it in the place where there is much dust, we recommend air purge. Please use external diameter 6mmφ tube to connect air source such as pump and compressor. (The tube is not attached. Please prepare by yourself.) The standard of amount used of air is 0.5-1.0 kg/cm2 (about 70-140NL/min). Please use clean dry air without water and oil when you use air purge. ● Sunlight Please use KB-30 after the light-blocking treatment, because the strong light as direct sunlight will disturb the measurement. -
Page 7: Installation
3-1. Installation (1) The setting of height The height from the sample surface to the bottom of main unit must be 260mm (±20mm). <Glossy sample> Bolt hole (4 places) The bottom of main unit 460mm 260mm (±20mm) Measurement diameter about Sample Measurement diameter about Φ25mm Φ25mm surface It is recommended that is at an angle of 10-15°C to sample surface. Belt conveyor (2) Fixation of bolt Fasten the instrument with 4 bolts between the surface that you install the instrument and the bolt hole of the upper surface of the main unit after adjusting the height. * Fasten sensor head tightly with 4 bolts, attached washers and spring washers. If you do not so, it may cause injury due to falling. -
Page 8: How To Connect The Main Unit To Cable And Communication Function
4. How to connect the main unit to cable and Communication Function 4-1. Specification of main unit connector (1) AC connector (2) RS-232C/ RS-485 connector (3) 4-20mA connector Arrangement of connector and connector pin ● Connector kind Connector Type Pin arrangement NJW203-RM (JP version) ●... -
Page 9: Specification Of Rs-232C Cable
NJW Plug (Pin) D sub 9 pin (female) RS-232C (RXD) Main unit RS-232C (TXD) RS-232C (RXD) RS-232C (TXD) I/F_MODE (+) I/F_MODE (−) RS-232C (RTS) RS-232C (CTS) 4-3. Communication Function KB-30 can do RS-232C/RS-485 communication with the PC by the serial port on the back of the main unit. It is possible to send measurement commands from the PC to the main unit and reply measurement data from the main unit to the PC (it is necessary to prepare the PC and communication software). Please contact to your dealer if you would like to know detailed communication specification. -
Page 10: Troubleshooting
5. Troubleshooting If there is an abnormality in the unit or use conditions, you receive the following error code. Please take appropriate action in follow the instructions. If occurred an error code which is not in the notation, please contact to your dealer. * If an error occurs, please disconnect the instrument and your system immediately. If you continue to use, that it may be an adverse effect on the system. Error code Description Action... - Page 12 Notes ● Copying some or all of the contents of this user manual without prior written consent is strictly prohibited. ● The contents of this user manual may be changed at any time in the future without any prior notice. ● The appearance and/or representations of the products and parts depicted in this user manual may not appear exactly as their actual counterparts, but this does not affect their operation or functionality. ● This user manual was intended to be written as clearly and accurately as possible. However, if you are unclear about anything in this user manual or notice any missing information, please contact us directly. ● We cannot be held responsible for any actions or effects resulting from the execution of any opera- tions outlined in this user manual. 060373...
