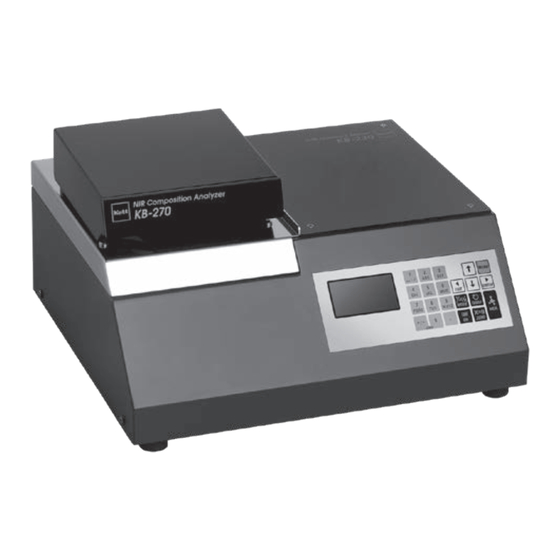

NIR Composition Analyzer
KB-270
Operating Manual
Thank you for purchasing this product.
Please read the operating manual carefully and use this product properly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KB-270 and is the answer not in the manual?

Questions and answers

Related Manuals for Kett KB-270

Summary of Contents for Kett KB-270

  • Page 1 NIR Composition Analyzer KB-270 Operating Manual Thank you for purchasing this product. Please read the operating manual carefully and use this product properly.

  • Page 3: Table Of Contents

    Contents 1. For safety measurement ................ 4 2. Features and part names ............... 6 2-1. Features........................6 2-2. Parts of main unit ....................6 2-3. Accessories ......................7 3. Specifications ..................8 4. Description of operation keys ............... 9 5. Preparing the main unit ............... 10 6.

  • Page 4: For Safety Measurement

    1. For safety measurement Improper use of the NIR Composition Analyzer in violation of the following safety notes may result in death, injury or damage to property due to fire, etc. While the safety of the product has been given considerable attention, read the precautions in the operating manual and use the instrument properly. ■ Observe the safety precautions. Read the precautions noted in the operating manual. The safety measure of the unit may be impaired if instructions are ignored during use. Do not use if broken.
  • Page 5 Caution Burn hazard Electric shock hazard ● Do not damage, heat, or place heavy object on the power cable or connectors. Otherwise, it may cause fire or electric shock, etc. ● When connecting with other devices, first, turn off the power of each unit. ● Do not connect/disconnect the power plug with wet hands. Otherwise, it may cause an electric shock, etc. ● In the maintenance work, remove the plug from the outlet for safety. Otherwise, it may cause an electric shock. ● To disconnect the plug or connector, make sure to hold the plug or connector, not to pull on the cable. ● Do not directly look at the blinking light of the unit. ● If the glass part of the unit is broken, carefully dispose of the glass fragments and contact the vendor. ● Prevent the accidents when measuring hazardous materials. Operating environment for safety use This product is designed to be used safely in the following conditions. Make sure of the operating environment before use.

  • Page 6: Features And Part Names

    2. Features and part names 2-1. Features This unit is a filter spectroscopy reflection type composition analyzer applying the near-infrared spectroscopy technology. It uses the filter of six wavelengths and one wavenumber for common reference available for various composition measurements. It measures the near-infrared absorption of six wavelengths of the measuring object, and converts the obtained data to the composition.

  • Page 7: Accessories

    For communication, USB and LAN are available. * KB-270 is not equipped with the function to create the calibration curve. The supplied PC PC software PC software software is required to create the calibration curve.

  • Page 8: Specifications

    3. Specifications Measurement method Near-infrared reflection (filter spectroscopy) Light source Tungsten lamp (life time : 20,000 hours) Measuring diameter approximately ø25 mm 7 (six wavelengths and one wavenumber for common Number of wavelengths reference available for various composition measurements) Channel number 50 (1 channel x 4 compositions simultaneous measurement) I/O connector USB, LAN, Printer output Display format Organic EL Display content Channel number, Channel name, Composition, Absorbance Operating temperature range 5 to 35°C (no condensation) Power supply 100 - 120 V AC / 220 - 240 V AC (50/60 Hz)

  • Page 9: Description Of Operation Keys

    4. Description of operation keys Operation keys Description [MENU] key Used for setting up and making a calibration curve. [ENTER] key Used to determine the currently selected item. [MEA.] key Used for measurement. [TABLE] key Used to set ON/OFF of the rotation table. [ZERO] key Used for zero-adjustment. [EXIT] key Used to exit the operation. [MODE] key Used to select the measurement mode. [CH] key Used to change the channel. [⬆]/[⬇] keys Used to scroll (up/down) the display. Numeric keypad Used for entering values or characters. [clear] key Used for cancelling entered values or characters.

  • Page 10: Preparing The Main Unit

    5. Preparing the main unit * Clean the measurement window. If it is not clean, measurement may not be performed correctly. * When closing/opening the light shielding cover, be careful not to pinch the fingers. * Be careful of protrusion provided on the top plane or edges of the main unit. Otherwise, it may cause an injury, etc.

  • Page 11: Specifying Measuring Conditions

    6. Specifying measuring conditions 6-1. Selecting the sample cell (container) According to the form of the measuring sample, select a sample cell from four types listed in the following. * Make sure that the selected one fully covers the measurement window. Also, use the same one in making calibration curve and actual measurement. * When measuring the liquid sample, be careful not to spill on the unit. 1.

  • Page 12: Deciding Whether To Use The Light Shielding Cover

    6-2. Deciding whether to use the light shielding cover The light shielding cover can avoid effects from external light. It is preferable to use the cover in order to avoid external light. * Perform measurement closing the light * The cover may not be usable depending on the shielding cover if possible. sample cell or sample form. In the case of not using the cover, it can be removed.

  • Page 13: Setting The Sampling Amount

    6-4. Setting the sampling amount Put the sample in the sample cell selected in section 6-1 and measure the absorbance to determine the sampling amount. * If the sampling amount (sample height) is not consistent, it may affect the absorbance. * When not using the light shielding cover, determine the sampling amount under the same condition of external light as measurement.

  • Page 14: Making The Calibration Curve

    7. Making the calibration curve ● Necessity of calibration curve The NIR Composition Analyzer measures the near-infrared absorption of the measuring object, and converts the obtained data to the percentage of composition.Therefore, a conversion formula that calculates the actual composition from the near-infrared absorption is required. This is called "calibration curve". The calibration curve differs depending on the measuring object. Therefore, it is required to make calibration curve per object in advance. This unit is capable of making calibration curve easily using the supplied PC software. 7-1. Setting the measurement range and the number of samples Set the composition to measure and the number of samples required for making calibration curve. The samples with different composition percentages that fully covers the measurement range are required.

  • Page 15: Moisture Preparation

    7-4. Moisture preparation In the measurement of moisture content, if samples to fully cover the measurement range cannot be prepared in the regular moisture control process (drying or adding water), prepare the samples by moisture preparation. To derive a sample with different moisture by moisturising or drying a source sample is called "moisture preparation". There are various ways to change the moisture content, such as spraying water using an atomizer or drying the high moisture content sample. Make samples with different moisture by selecting an optimum method according to the measuring object. Also, when samples are made by moisture preparation, it is recommended to wait five to seven days until added water is well soaked to obtain better consistency of moisture. Then, perform...

  • Page 16: Measurement

    8. Measurement Measure the sample in the same measurement condition as making calibration curve. (→ 6. Setting the measurement conditions (P.11)) * It is recommended to perform zero-adjustment. (→ 9. Zero-adjustment (P.18)) <Step 1> ● Select the channel number. In the initial screen, select the channel operating [CH.], [⬆], [⬇], and [ENTER] keys. [Channel selection screen] When changing the measurement channel, or during setup, the following will be displayed. ▶ F L O U R 1 2 3 4 F L O U R 2 C O R N 1 − 4 C O R N 2 −...

  • Page 17: Continuous Measurement Mode

    The normal mode measurement data can be printed. <Printout example> ① Make sure that the power of KB-270 and the printer are turned off. ② Connect the printer cable VZC54 (designated one) to the printer output port provided on the rear of the main unit of KB- 270. Then, tighten the screw.

  • Page 18: Zero-Adjustment

    9. Zero-adjustment ● What is zero-adjustment? If errors occur in the measurement results due to light source consumption or other causes, read the absorbance obtained from reflection on the zero-adjustment plate. The measurement result will be stabilized by setting the absorbance as zero. Make sure to perform this operation when making calibration curve or in the regular measurement as well.

  • Page 19: Setup

    10. Setup Each setting can be checked or changed. ① Pass code input Press the [MENU] key, and enter the pass code. At the time of shipment, "9999" is set. P A S S C O D E ? ー ー ー ー ② Selecting each setting The menu screen will be displayed. ▶ 1 . C H P A R A M E T E R 2 .
  • Page 20 ■ Setting the channel parameter Following four items can be set per channel. * To cancel the setting during operation, press the [EXIT] key. Then, the previous screen will be restored. 3. Averaging times in normal measurement 2. Smoothing value of continuous 1. Channel name (8 alphanumerics) (Default: 1 time) measurement (0 to 5) A channel identification.
  • Page 21 4. Composition parameter (Following five items can be set per composition) 1 Composition name 2 Measurement value display digits 3 Display setting (→ Step (10)) (8 alphanumerics) T h e d i s p l a y r a n g e c h a n g e s Sets the display or hide of the composition. A composition identification.
  • Page 22 Display Operation Step 1 . 0 1 . F L O U R ● Select the measurement value display digits. C O M P . P A R A M E T E R ⬆ ⬇ Select a display digits from nine types using [ ] key, and press M O I S T U R E N A M E...
  • Page 23 Display Operation Step 1 . C H P A R A M E T E R ● Save the channel parameter. F L O U R After saving all the channel parameters, move the cursor to N A M E F L O U R S M O O T H I N G [OK] with [⬇] key.
  • Page 24 ■ Initializing the channel The channel parameter can be initialized. * To cancel the setting during operation, press the [EXIT] key. Then, the previous screen will be restored. Step Display Operation 1 . C H P A R A M E T E R ● Select the channel reset.
  • Page 25 ■ Communication setting Set the port for communication with the PC software. Either the USB port or LAN port can be selected. For the LAN port, LANTRONIX’s XPort is employed. For how to use the PC software, refer to the PC software operating manual. * To cancel the setting during operation, press the [EXIT] key. Then, the previous screen will be restored. Step Display Operation ● Select the communication setting. 1 . C H P A R A M E T E R 2 .
  • Page 26 ■ Setting the pass code Setting the pass code will disable the setup operation, and alteration of data can be avoided. At the time of shipment, "9999" is set. Be careful not to forget the changed pass code. * To cancel the setting during operation, press the [EXIT] key. Then, the previous screen will be restored. Step Display Operation 1 . C H P A R A M E T E R ● Select the pass code.

  • Page 27: Maintenance

    11. Maintenance 11-1. Replacing light source lamp When the light source lamp is blown, replace it in the following procedures. * Make sure to purchase the new lamp from Kett. Do not use other lamps than the specified one. * While the power is turned on, the lamp temperature rises and a burn may be caused. Before replacing the light source lamp, make sure that at least 1 hour is passed after turning off the power and the lamp is sufficiently cooled off.

  • Page 28: Replacing Fuses

    11-2. Replacing fuses When replacing the fuse, use the safety standard compliant Safety standard compliant product product. ① Turn off the power and disconnect the power cable. Rated voltage 250V ② Remove the fuse holder provided on the rear of the main unit. Rated current 3A or 3.15A ③...

  • Page 29: Error Display

    12. Error display The following errors are displayed when there is a problem with the unit or the use condition. When an error is displayed, check the status and take measures following the procedures described below. Error display Description Remedy E-01 System parameter memory error For purchasing the spare parts, please contact the E-02 Arithmetic error vendor.

  • Page 30: Remarks

    <Remarks> ● When the absorbance saturated sampling amount cannot be prepared Less than the absorbance saturated sampling amount While the near-infrared from the bottom passes through the sample, the displayed value will continue to fluctuate. Near-infrared Near-infrared Absorbance Sampling amount Sampling amount Sampling amount Sampling amount If the following is met, making calibration curve and measurement is possible. ① Maintain the same sampling amount. ② Measure the sample with the light shielding cover always closed. * The larger amount of samples will provide more stable measurement.
  • Page 32 Notes ● Copying some or all of the contents of this user manual without prior written consent is strictly prohibited. ● The contents of this user manual may be changed at any time in the future without any prior notice. ● The appearance and/or representations of the products and parts depicted in this user manual may not appear exactly as their actual counterparts, but this does not affect their operation or functionality. ● This user manual was intended to be written as clearly and accurately as possible. However, if you are unclear about anything in this user manual or notice any missing information, please contact us directly. ● We cannot be held responsible for any actions or effects resulting from the execution of any opera- tions outlined in this user manual. 060293...
