Ferno S-265 Scoop User Manual

Ferno S-265 Scoop User Manual

Advertisement

Quick Links

159 kg
Model S-265 Scoop
T

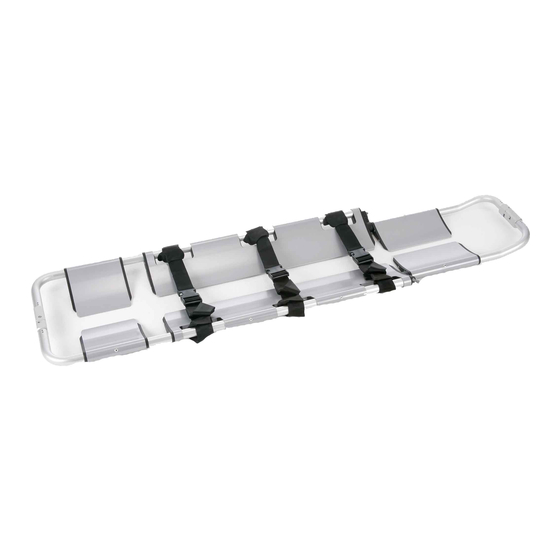

he Model S-265 Scoop Stretcher (stretcher) is an emergency
patient-handling device. It is designed to aid in moving a patient
when space is limited or when the patient needs to be moved with
little change of body position. Operate the stretcher according to
the laws and protocols of the country where it is used. Consult the
appropriate authorities for information regarding laws and
protocols, and resolve any questions before using the stretcher with
a patient.
The stretcher is for professional use by a minimum of two trained
operators.
The stretcher frame is constructed in two halves which uncouple,
slide under the patient, then recouple for lifting the patient. The
stretcher may also be used in a "V" shape when uncoupled at only
the foot end.
Other features include a telescoping foot section with locking
positions for length adjustment, three handholds on each side of
the main frame, and concealed hinges which allow the stretcher to
fold for storage.
The Model S-265 stretcher is equipped with a set of three patient
restraints.
Manufacturer:
Ferno Slovakia s.r.o.
913 07 Bosaca 893 Slovak Republic
Tel: +421 (0) 32 7708 010, sales@ferno.sk
159
kg
Users' Manual
Product Specifications
Length open:
Length Folded:
Width:
Height open:
Height Folded:
Unit Weight:
Load Capacity:
September 2020, ver. 06
Pub. No. 50-8112-001_06
1660mm
1200mm
422mm
670mm
90mm
9,75 kg
159 kg

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-265 Scoop and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ferno S-265 Scoop

  • Page 1 Users’ Manual 159 kg Model S-265 Scoop he Model S-265 Scoop Stretcher (stretcher) is an emergency patient-handling device. It is designed to aid in moving a patient when space is limited or when the patient needs to be moved with little change of body position.
  • Page 2 Ferno Slovakia Model S-265 Scoop Adjusting Stretcher Length Adjust the length of the stretcher to the patient’s height before uncoupling the halves. This ensures equal adjustment to both halves. TO LENGTHEN OR SHORTEN THE STRETCHER 1. Move the lock-pin lever on each side of the...
  • Page 3 Ferno Slovakia Model S-265 Scoop Applying THE STRETCHER Carrying THE STRETCHER...
  • Page 4 Applying THE STRETCHER „V” 3. APPLYING STRETCHER IN A “V” 4. ATTACHING RESTRAINTS Unfold the stretcher if it is folded for storage, and The Model S-265 Scoop Stretcher includes a set adjust the length (see B Adjusting stretcher of three two-pieces restraints. length) To attach a two-piece restraint: 1.
  • Page 5: Using Additional Help

    Ferno Slovakia Model S-265 Scoop 5. USING ADDITIONAL HELP 6. STORING THE STRETCHER nfold the stretcher if it is folded for storage, and adjust the length (see B Adjusting stretcher length) 1. Unlock the lock-pin levers on both sides of the stretcher.
  • Page 6 Ferno Slovakia Model S-265 Scoop 8. Lubricating the Stretcher white lithium grease SAE 30-weight oil Dry-coating Teflon lubricant WARNING FOR SERVICE AND REPAIR PLEASE REFER TO YOUR SALES AGENT Improper use of the stretcher can cause injury. Use the stretcher only for the purpose described in this manual.
