  • Page 1 TALUS User Manual www.sysbas.com Version 3.0.1 2020/10/08...
  • Page 2 Copyright Copyright ⓒ 2020 SystemBase Co., Ltd. All rights reserved. This manual is a document protected by Copyright law. Unauthorized copying, duplicating, publishing of some or all of contents without prior consent from SystemBase is against Copyright Law. Registered Trademark TALUS™...
  • Page 3 TALUS v2.0 Manual Revision History Revision Date Document Ver. Pages Revised Revised/Added/Removed Details of Revision 2009-09-01 1.0.0 2011-05-30 2.0.0 Revised 2014-07-23 3.0.0 Revised/Added 2020-10-08 3.0.1 Revised...

  • Page 4: Table Of Contents

    3.6 Using Other Bluetooth Services ....................24 4. Certification 4.1. FCC ............................25 4.2. CE ............................. 25 4.3. MIC(TELEC) ..........................25 4.4. KC ............................. 25 Appendix A: TALUS Dimension A.1. Dimension ..........................26 Appendix B: AT Commands B.1. Warranty Policy ........................27...

  • Page 5: Introduction

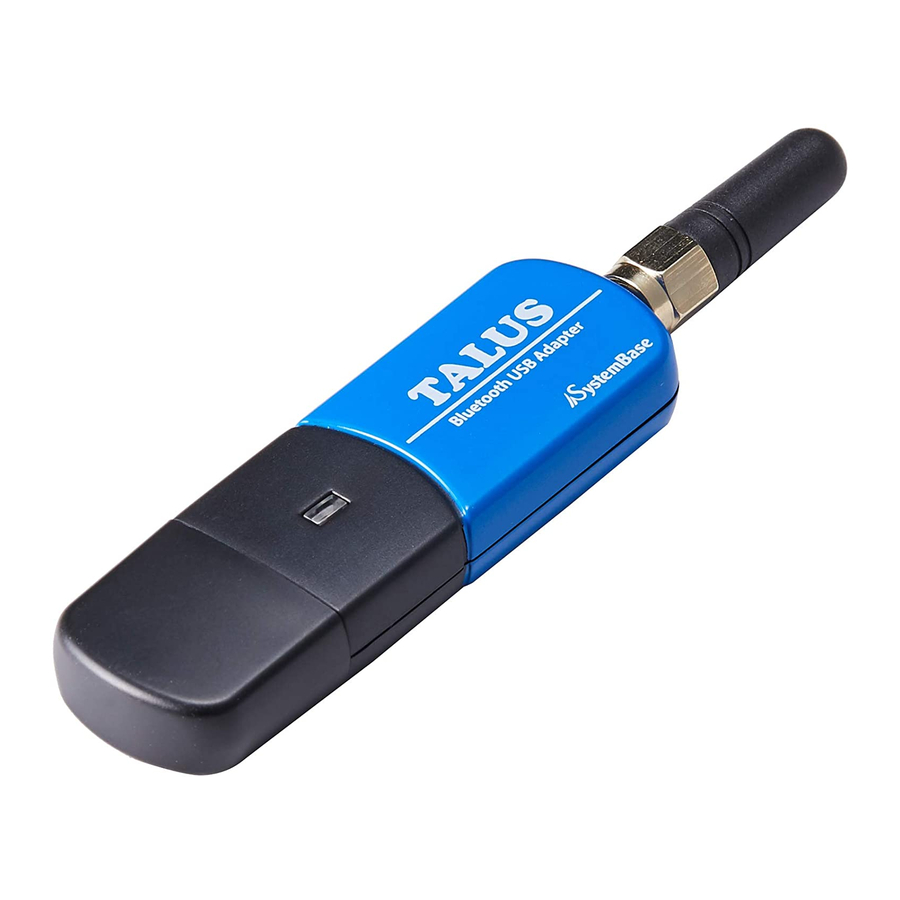

    1. Introduction 1.1 Overview TALUS adds a Bluetooth communication to a laptop or a PC. It is Class 1 device and supports Bluetooth v4.0 + EDR. Users can use it to communicate or manage the devices in a large factory.

  • Page 6: Package

    TALUS v2.0 Manual 1.2 Package 1.2.1 Components TALUS - TALUS - Stub Antenna - CD(Installation & Documentation)

  • Page 7: Specification

    TALUS v2.0 Manual 1.3 Specification Standards Bluetooth 4.0 Class 1 Frequency Range 2.402 ~ 2.480GHz Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P Receive Sensitivity Basic 1Mbps: -90 dBm EDR 2Mbps: -88 dBm EDR 3Mbps: -86 dBm Antenna Connector RP-SMA Bluetooth...

  • Page 8: Get Started

    *Note: Bluetooth software must be installed before connecting TALUS to a PC. In addition, if Widcomm BTW or Bluetooth driver provided by Toshiba is already installed on the PC, they must be uninstalled before installing TALUS driver. a. Insert Bluetooth software CD-ROM.
  • Page 9 TALUS v2.0 Manual Figure 2.3 InstallShield Wizard e. Read the license agreement and click I accept the terms in the license agreement and press Next button. Figure 2.4 License Agreement Click Next button. If you want to change the destination folder, click Change button and select the folder.
  • Page 10 TALUS v2.0 Manual Figure 2.5 Destination Folder g. Click Install button to start the installation. Figure 2.6 Installation When the installation is complete, click Finish button.
  • Page 11 TALUS v2.0 Manual Figure 2.7 Installation Completed Press Yes button to reboot the PC. Figure 2.8 Rebooting Note: You can download the latest BlueSoleil driver from SystemBase Website https://www.sysbas.com/en/downloads/talus/...

  • Page 12: Using Bluetooth Adapter

    TALUS v2.0 Manual 3. Using Bluetooth Adapter This chapter describes how to use SPP, DUN, stereo headset and other Bluetooth services using TALUS. 3.1 Starting Bluetooth Adapter a. Plug the TALUS into the PC’s USB port. b. Right-click on the Bluetooth icon on the tray and select Turn on Bluetooth.

  • Page 13: Searching For Bluetooth Devices

    TALUS v2.0 Manual 3.2 Searching for Bluetooth Devices To establish Bluetooth connection, Bluetooth device must be searched for. a. Make the target device discoverable. b. Double-click on the Bluetooth icon on the tray and the BlueSoleil window will pop up.

  • Page 14: Using Bluetooth Serial Port

    TALUS v2.0 Manual 3.3 Using Bluetooth Serial Port SPP profiles enable you to create and use virtual serial ports using Bluetooth. Softwares using standard serial ports can read and write virtual serial ports using SPP just like standard serial ports. A Bluetooth password(PIN code) is required for SPP connections.
  • Page 15 TALUS v2.0 Manual Right-click on the discovered device icon to select Connect Bluetooth serial port. Figure 3.6 Connect Bluetooth Serial Port d. Once the connection is complete, the Bluetooth serial port can be used. Figure 3.7 Connection Complete e. To disconnect, right-click on the device icon and select Disconnect Bluetooth Serial Port.
  • Page 16 TALUS v2.0 Manual Figure 3.8 Disconnect Bluetooth Serial Port...

  • Page 17: Using Dial-Up Network(Dun)

    TALUS v2.0 Manual 3.4 Using Dial-Up Network(DUN) This chapter explains how to use a DUN profile to connect to the Internet using a mobile phone. In order to use DUN, you must have a user name and password assigned from the wireless service provider to connect.
  • Page 18 TALUS v2.0 Manual Figure 3.10 Search Services c. Right-click on the discovered device icon to select Connect Bluetooth Dial-Up Networking. Figure 3.11 Connect Bluetooth Dial-Up Networking d. Enter Bluetooth password(PIN code) and click OK button.
  • Page 19 TALUS v2.0 Manual Figure 3.12 Entering Bluetooth Passkey e. Click Dial-Up Connection icon in the task bar Figure 3.13 Dial-Up Connection Icon Enter the user name and password granted by the service provider and click Dial button. Figure 3.14 Entering Username and Password...
  • Page 20 TALUS v2.0 Manual Figure 3.15 Dial-Up Networking Connection h. To disconnect, right-click on the device icon to select Disconnect Bluetooth Dial-Up Networking. Figure 3.16 Disconnect Bluetooth Dial-Up Networking...

  • Page 21: Using Bluetooth Stereo Headset

    TALUS v2.0 Manual 3.5 Using Bluetooth Stereo Headset This chapter describes how to use a Bluetooth stereo headset to listen to stereo music. A Bluetooth password(PIN code) is required for connection. Please check the Bluetooth password of the headset in advance.
  • Page 22 TALUS v2.0 Manual Figure 3.18 Search Services d. Right-click on the detected headset icon to select Connect Bluetooth Advanced Audio. Figure 3.19 Connect Bluetooth Advanced Audio e. If it is the first time connecting to the headset, enter the Bluetooth password(PIN code) if asked and click OK button.
  • Page 23 TALUS v2.0 Manual Figure 3.21 Bluetooth Advanced Audio Connection g. To disconnect, right-click on the headset icon and select Disconnect Bluetooth Advanced Audio. Figure 3.22 Disconnect Bluetooth Advanced Audio...

  • Page 24: Using Other Bluetooth Services

    TALUS v2.0 Manual 3.6 Using Other Bluetooth Services To use other Bluetooth services not mentioned above, please refer to the online documentation provided by the Bluetooth Manager software. To open the documentation, click Bluetooth Places icon on the PC, select Menu button ...

  • Page 25: Certification

    TALUS v2.0 Manual 5. Certification 4.1 FCC FCC Part 15 Spread Spectrum Transmitter FCC Digital Transmission System FCC ID: PROTALUS2 4.2 CE EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 EN 300 328 V2.1.1 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 This device can be operated in at least one Member State without infringing applicable requirements on the use of radio spectrum."...

  • Page 26: Appendix A: Talus Dimension

    TALUS v2.0 Manual Appendix A: TALUS Dimension A.1. Dimension Unit: mm...

  • Page 27: Warranty Policy

    The product has passed the rigorous quality control and inspection process. SystemBase warrants that from the date of purchase by customer, and continuing for a period of five(5) year, the Hardware will be free from defects in material and workmanship, under normal use. The warranty is limited to the repair and/or replacement parts at SystemBase’s option, of the defective product during its warranty period.
  • Page 28 If you have any inconvenience while using the product, please contact us. Email: Working Hour • Purchase/Quotation: overseas@sysbas.com MON ~ FRI 9:00 ~ 18:00 • Technical Support/RMA: tech@sysbas.com www.sysbas.com Tel: +82-2-855-0501 Fax: +82-2-855-0580 Copyright ⓒ 2020 SystemBase Co., Ltd. All Right Reserved.
