RF Wireless Remote Control Kit For AC 220V Tubular Motor (Model 0020709)

Package Include:

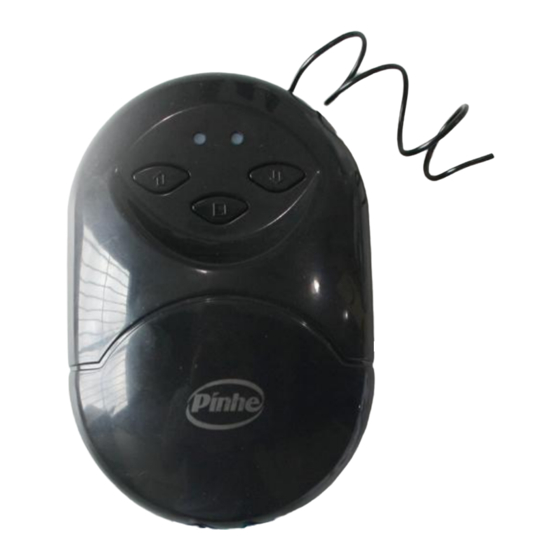

1 X Receiver: S1FG-AC220
2 X Transmitter: XB-4L
1 X User manual

Features:

Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and
equipments w ith AC tubular motors, it can remote control AC tubular motor to rotate in the positive or reversal direction.
Wireless control, easy to install.
You can rotate a tubular motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
The RF w ireless signal can pass through walls, floors and doors.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:

Model No.: S1FG-AC220
Pow er Supply (Operating Voltage): AC 220~240V
Output: AC 220V / 2A
Working Frequency: 433MHz
Automatic stop time: 120 seconds, motor will stop automatically after 120 seconds of rotation.
Channel: 1CH, can w ork w ith a AC tubular motor
Static Current: ≤6mA
Maximum Working Current: 2A
Case size: 130mm x 85mm x 40mm
Work w ith learning code transmitters.

Transmitter:

Model No.: 0021113 (XB-4L)
With Sliding Cover: Slide up w hen it doesn't work (to protect the button). Slide down the button w ill appear.
Channel/Button: 4
Button Symbol: ▲, ▼, ■, ●
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Encoding Type: Learning code (up to 1 million codes, reducing code collision and unauthori z ed code scanning possibilities.)
Transmitting Distance: 50m / 150ft (theoreti c ally)
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 60mm x 32mm x 15mm
Note:
If you want more transmitters, you can choose the cloner transmitters, such as model 0021112 (XB-4C). If you use the transmitter XB-4C to copy your
transmitter XB-4L, then the transmitter XB-4C also can work w ith your receiver.

Working Range:

With a transmitter (such as XB-4L) to form a complete set, the maximum w orking distance can reach 50M in an open ground.
The maximum w orking distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it w ill
be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this
maximum w orking distance.
If you want to have a further working range, you can install an external antenna to the recei v er, and you also can use a powerful transmitter, such as
CP-4L or CB-4L transmitters.

Usage (with transmitter XB-4L):

Wiring:
If you want to control a AC 220V tubular motor, do as follow ing:
1) Connect the plug of tubular motor to the socket of receiver.
2) Connect the plug of tubular motor to AC power suppl y .
Button of receiver:
Press button ▲ of receiver: Motor rotates in positive direction.
Press button ▼ of receiver: Motor rotates in reversal direction.
Press button ■ of receiver: Motor stops & Unlock function.
Button of transmitter:
Press button ▲ of transmitter: Motor rotates in positive direction.
Press button ▼ of transmitter: Motor rotates in reversal direction.
Press button ■ of transmitter: Motor stops & Unlock function.
Press button ● of transmitter: Lock the system.
