Instructions

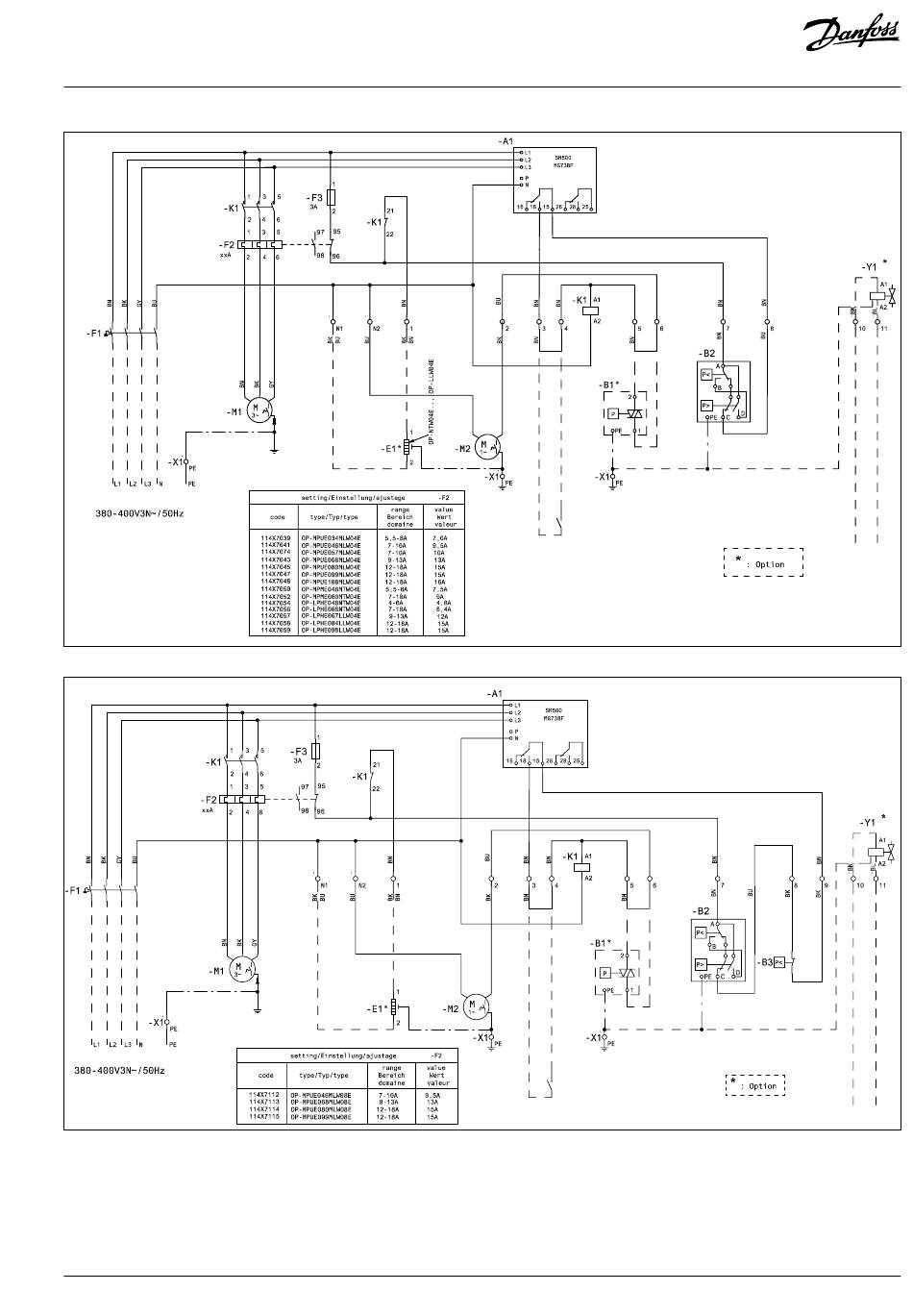

Code E (version W04) : OP-MPUE034 - 046 - 057 - 068 - 080 - 099 - 108; OP-MPME048 - 060; OP-LPHE048 - 067 - 068 - 084 - 098
Code E (version W08) : OP-MPUE046 - 068 - 080 - 099
Legend
BK black A1
BU blue B1*
BN brown B2
GY grey B3
RD red C1
WH white C2
E1
FRCC.PI.022.B0.02
Supply & phase reversal protection relay
Fan Speed Controller
DUAL Pressure Switch
Low pressure switch
Start capacitor compressor
Run capacitor compressor
Crankcase heater
-S1*
-S1*
F1 Main switch
F2 Overload relay
F3 Fuse control circuit
M1 Compressor
M2 Fan motor
K1 Contactor
K2 Start relay
R1, R2 Bleeder resistor
S1* Room thermostat
X1 Terminals
Y1* Solenoid valve
