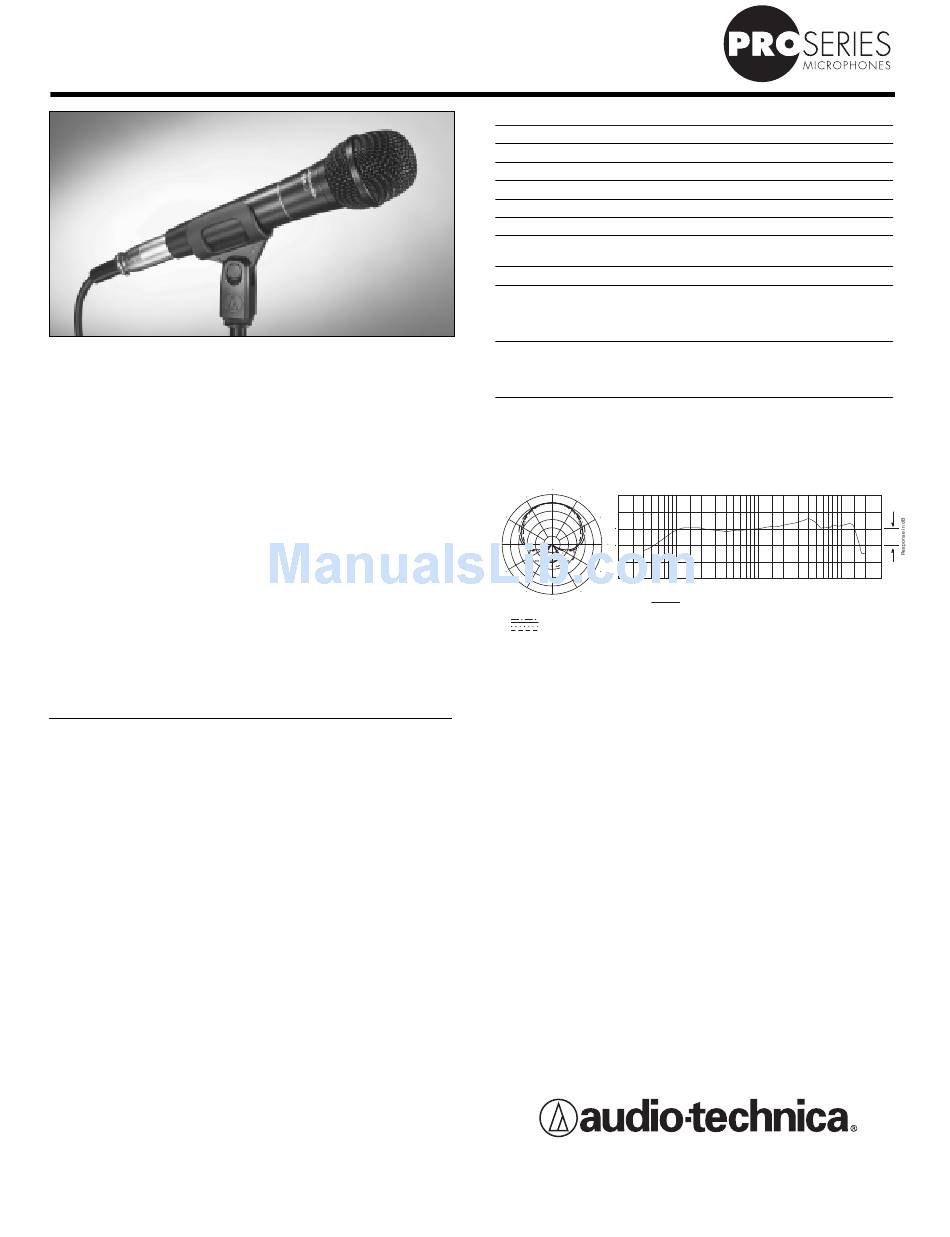

Audio Technica PRO 61 Specifications

PRO 61

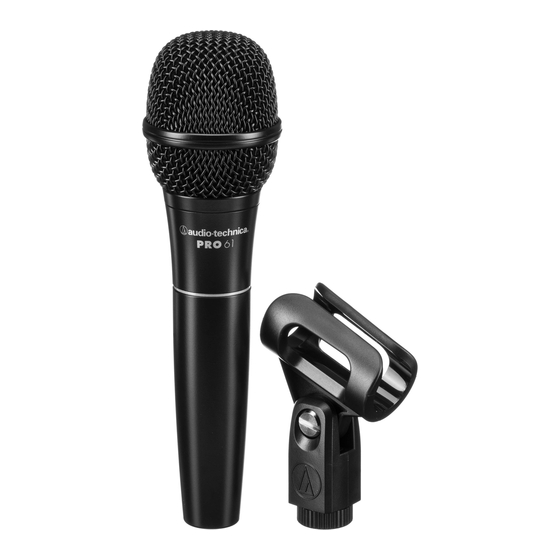

HYPERCARDIOID DYNAMIC MICROPHONE
• Premier Pro Series vocal microphone delivers excellent gain
before feedback and outstanding stage presence
• Hi-ENERGY ® neodymium magnet for improved output and
transient response
• Extended frequency response for optimal vocal reproduction
• Two-stage ball-type screen reduces wind noise and "popping"
during close use
• Corrosion-resistant contacts from gold-plated XLRM-type
connectors
• Superior internal shock mounting reduces handling noise
• Rugged design and construction for reliable performance
• Hypercardioid polar pattern reduces pickup of sounds from the
sides and rear, improving isolation of desired sound source
Output from the microphone's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2 and
3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" – positive
acoustic pressure produces positive voltage at Pin 2.
Plug Type Ground
XLR Pin 1
1 / " "TRS" Sleeve
4
1 / " Sleeve
4
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently: Pin 1-to-Pin 1, etc. For a high-impedance (Hi-Z)
mic input, connect a Lo-Z balanced cable to a Hi-Z matching
transformer (A-T CP8201 or equal) at the equipment input.
When using the PRO 61 in settings with a stage monitor speaker,
the speaker should be located 135° off axis (45° off the rear of the
microphone). This placement, in conjunction with the microphone's
uniform hypercardioid pickup pattern, will virtually eliminate the
possibility of undesired audio feedback.
Take care to keep foreign particles from entering the windscreen.
An accumulation of iron or steel filings on the diaphragm, and/or
foreign material in the windscreen's mesh surface, can degrade
performance.
Audio "+" Audio "-"
Pin 2 Pin 3
Tip Ring
Tip Sleeve
PRO 61 SPECIFICATIONS †
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
WEIGHT (less cable and accessories)
DIMENSIONS
OUTPUT CONNECTOR
CABLE
ACCESSORIES FURNISHED
† In the interest of standards development, A.T .U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes /cm 2 = 10 microbars = 94 dB SPL
Specifications are subject to change without notice.
Polar Pattern
0
330 30
300 60
270 90
240 120
50 100
210 150
180
LEGEND
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
3893-00200 P51682-EN ©2004 Audio-Technica U.S., Inc.
Dynamic
Hypercardioid
70-16,000 Hz
–55 dB (1.7 mV) re 1V at 1 Pa*
300 ohms
11.8 oz (335 g)
7.56" (192.0 mm) long,
2.07" (52.6 mm) head diameter
Integral 3-pin XLRM-type
15.0' (4.5 m) cable with XLRF-type
connector at microphone end,
XLRM-type connector at equipment
end
AT8470 Quiet-Flex ™ stand clamp for
5 / "-27 threaded stands; 5 / "-27 to
8 8
3 / "-16 threaded adapter; soft
8
protective pouch
Frequency Response
200 500 1k 2k 5k 10k 20k
Frequency in Hertz
12" or more on axis
Printed in Taiwan
10 dB
