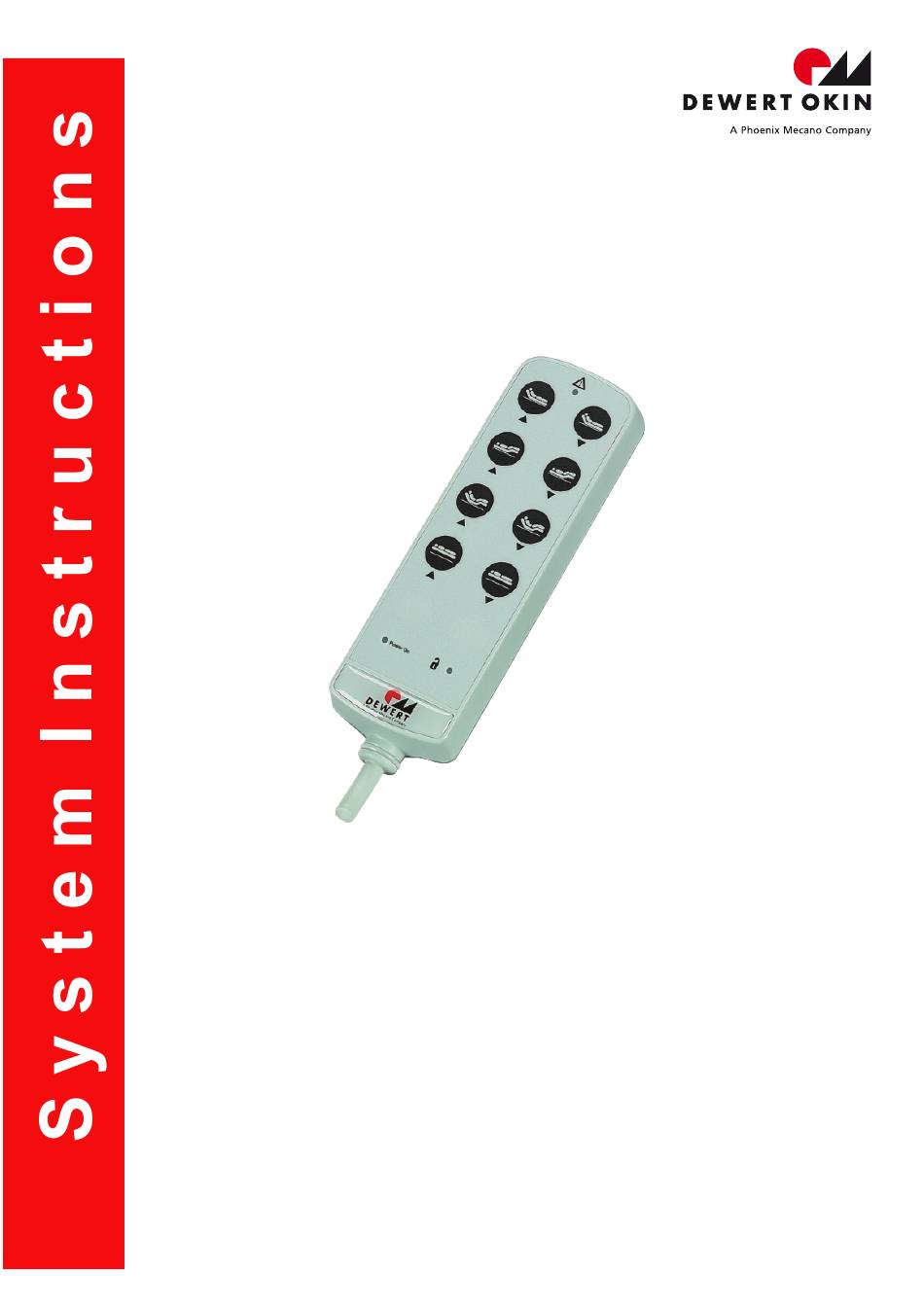

- Page 1 ® IPROXX SE/SE+ System Instructions (Translation of the original System instructions) Issue 04/2020 ID 44411 3.0 04/2020...
-
Page 2: Table Of Contents
® IPROXX SE/SE+ Contents General Information..................page 2 ® Key Configuration IPROXX SE..............page 3 ® Function of the Blocking Device IPROXX SE..........page 3 ® Function Diagram IPROXX SE..............page 4 Function of the Display................page 4 ® Key Configuration IPROXX SE+..............page 5 ®... -
Page 3: Key Configuration Iproxx Se
® Handset IPROXX SE Key Configuration ® Example: Handset IPROXX SE with 9 adjustment keys. Funktions-LED Backrest down Footrest down Reset down Back+footrest Stroke adjustment up down Antitrendelenburg Magnetic side Power On LED mode Magnetic lock symbol (switching range) Power On-LED Magnetic key Function of the blocking device By passing the magnetic side of the enclosed magnetic key... -
Page 4: Function Diagram Iproxx Se
® IPROXX SE/SE+ Putting into operation Connect the handset to the DewertOkin system. The handset automatically switches to mode 1 (basic state). Mode 1 Handset is completely blocked. Power On Mode LED doesn’t glow. Passing the magnetic side of the magnetic key over the lock symbol once. -
Page 5: Key Configuration Iproxx Se
® Handset IPROXX SE+ Key Configuration ® Example: Handset IPROXX SE+ with 10 adjustment keys. Functions-LED Backrest down Footrest down Reset down back+footrest down Stroke adjustment up Trendelenburg Antitrendelenburg Magnetic side Power On LED mode Magnetic lock symbol (switching range) Power On-LED Magnetic key Function of the blocking device... -
Page 6: Function Diagram Iproxx Se
® IPROXX SE/SE+ Ÿ By passing the magnetic side of the magnetic key over the lock symbol once again, additional functions on the handset (e.g. Trendelenburg, seated position) can be released. They vary depending on the version or the customer`s requirement (mode 3). -
Page 7: Function Of The Display
Functions of the display Function LED LED glows green when a key is pressed, visual display of first-error security. Power on LED with battery charging circuit LED flashes yellow when battery is charging. LED glows permanently when battery is fully charged or not connected. -
Page 8: Troubleshooting
® IPROXX SE/SE+ Handset faults (control unit with first-error security) There is a fault/first error in the integral blocking device, Ÿ if the LED mode does not glow in the blocking device Ÿ if the LED mode does not glow in the released state. Then check the system. -
Page 9: Cleaning
Cleaning ® The IPROXX handset was designed so that it would be easy to clean. Its smooth surfaces simplify the cleaning process. 1 Be sure to disconnect the handset cable from the drive or control unit before you start cleaning. ®... -
Page 10: Ec Declaration Of Conformity
® IPROXX SE/SE+ EU Declaration of Conformity In compliance with Appendix IV of the EMC-Directive 2014/30/EU In compliance with Appendix VI of the EU RoHS Directive 2011/65/EU (incl. Commission delegated Directive (EU) 2015/863) The manufacturer: DewertOkin GmbH Weststraße 1 32278 Kirchlengern Deutschland - Germany declares that the following product ®... - Page 11 Notes 04/2020 ID 44411 3.0...
- Page 12 ® IPROXX SE/SE+ DewertOkin GmbH Weststraße 1 32278 Kirchlengern, Germany Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de 04/2020 ID No. 44411 ID 44411 3.0...
