嘉兴礼海电气科技有限公司
OKIN Refined Electric Technology Co., Ltd
Operating Manual of Remote Control system 遥控系统使用说明书
1、

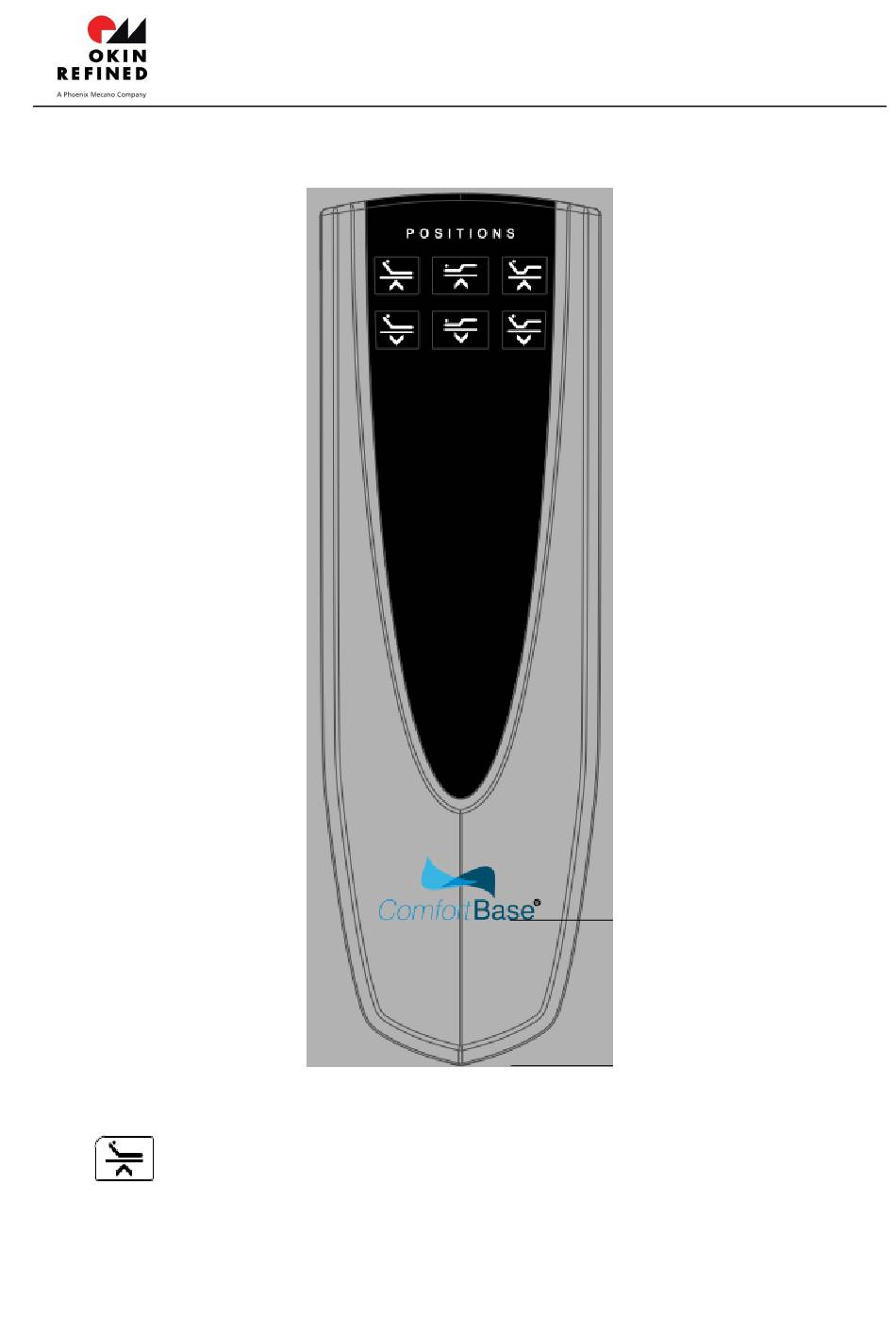

Interface of the remote control
遥控器界面
2、Button description 按键功能描述
A.
HEAD UP button：Press and hold the button, the Head actuator will go up. Stop
when released.
一直按下，头部驱动器下降，松开即停止；
Page 1 of
5
Advertisement
Table of Contents
Related Manuals for Phoenix Mecano Okin Refined JLDK3706
Summary of Contents for Phoenix Mecano Okin Refined JLDK3706
- Page 1 嘉兴礼海电气科技有限公司 OKIN Refined Electric Technology Co., Ltd Operating Manual of Remote Control system 遥控系统使用说明书 1、 Interface of the remote control 遥控器界面 2、Button description 按键功能描述 HEAD UP button：Press and hold the button, the Head actuator will go up. Stop when released. 一直按下，头部驱动器下降，松开即停止；...
- Page 2 嘉兴礼海电气科技有限公司 OKIN Refined Electric Technology Co.,Ltd HEAD DN button：Press and hold the button, the Head actuator will go down. Stop when released. 一直按下，头部驱动器上升，松开即停止； FOOT UP button：Press and hold the button, the Foot actuator will go up. Stop when released. 一直按下，脚部驱动器下降，松开即停止； FOOT DN button：Press and hold the button, the Foot actuator will go down.
- Page 3 嘉兴礼海电气科技有限公司 OKIN Refined Electric Technology Co.,Ltd be configured differently. Each control box must be paired with the different remote control where the DIP-Switch position is deferent. Doesn’t pair both control boxes with the same remote control or the different one but in which the DIP-switch position is same. 遥控对码：...
- Page 4 嘉兴礼海电气科技有限公司 OKIN Refined Electric Technology Co.,Ltd necessary to use the SMPS provided by us when normal operation. 本控制盒设计适用的电源为 29VDC/ 2A 左右开关电源，正常操作需使用我们配套的开关电源； In the case of the AC power utility failure, the batteries for backup of 18VDC can be used as the power.
- Page 5 嘉兴礼海电气科技有限公司 OKIN Refined Electric Technology Co.,Ltd FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s) . Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
