- Page 1 ® IPROXX SM/SM+/SMP System Instructions (Translation of the original System instructions) Issue 04/2020 04/2020 ID 56171 3.0...
-
Page 2: Table Of Contents
® IPROXX SM/SM+/SMP Contents General Information..................page 2 Designated Use................... page 3 ® Key Configuration IPROXX SM..............page 4 ® Function of the Locking Device IPROXX SM..........page 4 ® Function Diagram IPROXX SM..............page 5 Function of the Display................page 5 ®... -
Page 3: Designated Use
In order to guarantee single-fault protection you can lock the actuator movements via the integrated locking device. In doing so, the motor circuits are disconnected by electromechanic switch elements. Ÿ turn the locking switch to mode "locked", Ÿ check this by activating the adjustment key, Ÿ... -
Page 4: Key Configuration Iproxx Sm

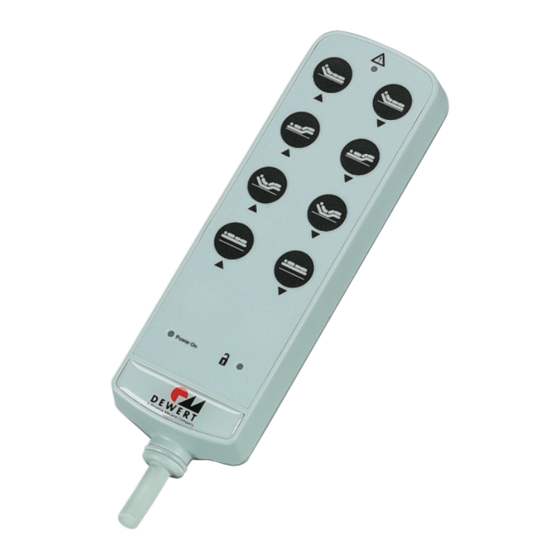

® IPROXX SM/SM+/SMP ® Handset IPROXX SM Key Configuration ® Example: Handset IPROXX SM with 9 adjustment keys. Function LED Backrest down Footrest down Reset down Back+footrest Stroke adjustment up down Antitrendelenburg Power On Mode LED Power-ON LED Lock symbol ®... -
Page 5: Function Diagram Iproxx Sm
® Function Diagram IPROXX SM Putting into operation Connect the handset to the DewertOkin system. Mode locked Socket wrench turned to , handset is completely locked. Power On Mode LED doesn’t glow. Power-ON LED glows dimly. Mode released green Socket wrench turned to , handset adjustment functions are released. -
Page 6: Key Configuration Iproxx Sm
® IPROXX SM/SM+/SMP ® Handset IPROXX SM+ Key Configuration ® Example: Handset IPROXX SM+ with 10 adjustment keys. Function LED Backrest down Footrest down Reset down Back+footrest Stroke adjustment up down Trendelenburg Power-ON LED Power On Antitrendelenburg Lock symbol Mode LED ®... -
Page 7: Function Diagram Iproxx Sm
Ÿ By turning the socket wrench to the symbol the adjustment functions on the handset can be released for the nursing staff / care personnel. These functions vary depending on the model (Mode released). The Mode LED next to the lock glows yellow, the Power-ON LED glows brightly. -
Page 8: Function Of The Display
® IPROXX SM/SM+/SMP Function of the display Function LED - LED glows green when a key is pressed, visual display of first-error security. Power-ON LED - LED glows constantly when mains / battery voltage available - Battery-powered operation (mains voltage not available) LED glows only when key is pressed - with battery charging circuit LED flashes yellow when battery is charging. - Page 9 ® Handset IPROXX SMP Key Configuration ® Example: Handset IPROXX SMP with 10 adjustment keys. Function LED Backrest down Footrest down Status LED Reset down Back+footrest down Stroke adjustment up Trendelenburg Power-ON LED Power On Antitrendelenburg ® Back of IPROXX SMP handset Rotary lock Socket wrench Back of handset...
-
Page 10: Function Diagram Iproxx Smp
® IPROXX SM/SM+/SMP Function of the locking device ® By turning the socket wrench on the back of the IPROXX handset, 4 modes can be released or locked. Ÿ To put the handset into operation, connect it to a DewertOkin control unit or a DewertOkin drive with integral control PCB. - Page 11 ® Function Diagram IPROXX SMP Putting into operation Connect the handset to the DewertOkin system. Mode locked Socket wrench turned to handset is completely locked. Status LED doesn’t glow, Power-ON LED glows dimly. Mode released Socket wrench turned to the adjustment functions on the handset can be released for the nursing staff / care personnel.
-
Page 12: Function Of The Display
® IPROXX SM/SM+/SMP Function of the display Function LED - LED glows green when a key is pressed, visual display of first-error security. Power-ON LED LED glows constantly when mains / battery voltage available Battery-powered operation (mains voltage not available) LED glows only when key is pressed - with battery charging circuit LED flashes yellow when battery is charging. -
Page 13: Trouble-Shooter's Guide
Trouble-shooter’s Guide to Detect and Eliminate Faults The following table has been developed to help you detect and eliminate common faults. If you come across a fault that is not listed here, please contact your supplier. Problem Possible Cause Remedy Mode LED / Lock LED - Fault in the handset - Contact your supplier/... -
Page 14: Cleaning, Disposal
® IPROXX SM/SM+/SMP Cleaning ® The IPROXX handset was designed so that it would be easy to clean. Its smooth surfaces simplify the cleaning process. 1 Be sure to disconnect the handset cable from the drive or control unit before you start cleaning. -
Page 15: Ec Declaration Of Conformity
EU Declaration of Conformity In compliance with Appendix IV of the EMC-Directive 2014/30/EU In compliance with Appendix VI of the EU RoHS Directive 2011/65/EU (incl. Commission delegated Directive (EU) 2015/863) The manufacturer: DewertOkin GmbH Weststraße 1 32278 Kirchlengern Deutschland - Germany declares that the following product ®... - Page 16 ® IPROXX SM/SM+/SMP DewertOkin GmbH Weststraße 1 32278 Kirchlengern, Germany Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de 04/2020 ID 56171 3.0...
