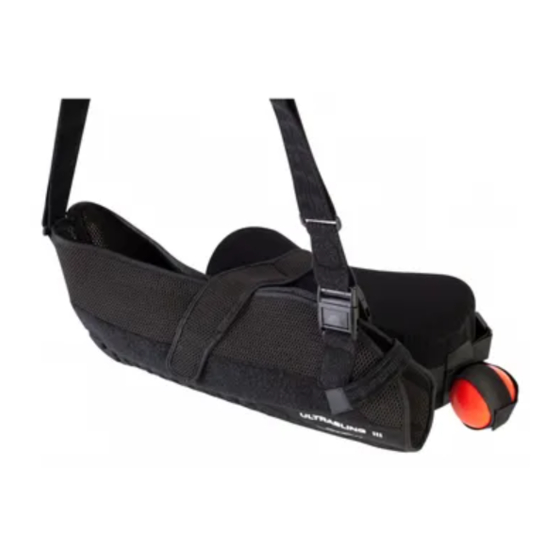

DJO DonJoy UltraSling PRO Clinician Application Instructions

BEFORE USING THE DEVICE, PLEASE READ THE INSTRUCTIONS FOR USE COMPLETELY AND CAREFULLY. CORRECT APPLICATION IS VITAL TO THE PROPER FUNCTIONING OF THE DEVICE.

SIZING AND CONFIGURATION:

ARM SLING SIZE
S/M
L/XL
Arm envelope is shipped in L/XL configuration. To adjust arm envelope to the S/M size, unbuckle both
quick release buckles. Fold in arm envelope and adhere hook and loop tabs on inside of envelope.
APPLICATION:
To ensure proper fit, if possible, product should be sized on patient pre-operatively.
Step 1. Open Arm Sling
Release quick-release buckle (i) on cushion and forearm strap (ii) on arm envelope. Unfasten
shoulder ring by releasing quick release buckles (iii) at front of arm envelope. (Fig. A)
Step 2. Apply Waist Strap
Align cushion on injured side at waist/hip level with elbow fixed at 90°. Narrow end of cushion
should be positioned to back of forearm/elbow. Bring waist strap around back and attach to
quick-release buckle (i) at front of cushion. Adjust waist belt and trim as necessary for proper fit.
(Fig. B)
Step 3. Apply Arm Sling
Place forearm into arm envelope as far back as possible. Secure thumb strap (iv) between thumb
and forefinger at front of sling. Secure forearm strap (ii) to sling and cushion. (Fig. C)
Step 4. Apply Shoulder Ring
Place arm through shoulder ring of healthy shoulder. Adjust shoulder ring circumference for
proper fit. (Fig. D) NOTE:
away from patient.
Step 5. Fasten the Shoulder Strap
Fasten shoulder strap to arm envelope by using quick release buckles (iii).
Adjust shoulder strap for proper fit. (Fig. E)
BRACE REMOVAL:
Detach quick release buckles, remove forearm strap, thumb strap and waist belt.
Slowly remove brace.
DonJoy
Clinician Application Instructions
MEASUREMENT
10.5"-15" (26.7cm-38.1cm)
15+" (38.1+cm)
The hook and loop closure of shoulder ring should be facing up and
UltraSling PRO
® ®
A
B
C
D
E
