  • Page 1 User Manual DT-8806H Non-Contact Forehead Infrared Thermometer Model 15004 Please read this manual before operating unit. Important safety information inside.
  • Page 2: Table Of Contents

    Non-Contact Forehead IR Thermometer User Manual Contents General Description............... 1 Safety Information................1 Features..................2 Intended Use.................. 3 Configuration................. 4 Indicator..................4 Description of Symbols..............5 Technical Specifications..............6 Advice For the 1 Use..............7 Use....................8 Measuring Operation..............9 Advice..................
  • Page 3: General Description

    Non-Contact Forehead IR Thermometer User Manual 1. General Description Non-Contact Forehead IR Thermometer is specifically designed to take human body temperature, regardless of room temperature. 2. Safety Information • This device must only be used for the purposes described in this instruction manual.
  • Page 4: Features

    Non-Contact Forehead IR Thermometer User Manual Important Information: • Before taking temperature remove hair and perspiration from forehead. • Select “Body” mode to measure body temperature . • Select “Surface” mode to measure the surface temperature. • Use of this thermometer is not intended as a substitute for consultation with a physician.
  • Page 5: Intended Use

    Non-Contact Forehead IR Thermometer User Manual 4. Intended Use Non-Contact Forehead IR Thermometer is designed for body surface and forehead temperature measurement for infants and adults without contact to human body. Non-Contact Forehead IR Thermometer can also be used to measure the temperature of a baby bottle, bath or room temperature (by using the Surface Temp function).
  • Page 6: Configuration

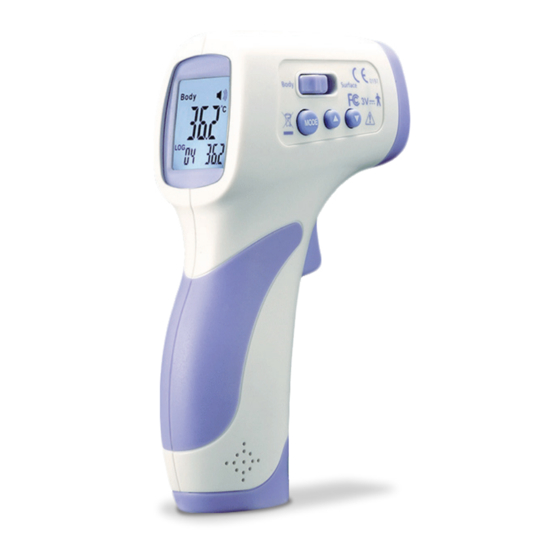

    Non-Contact Forehead IR Thermometer User Manual 5. Configuration IR Sensor LCD Display Mode Selection Down Button Up Button Mode Button Measurement Trigger Battery Cover 6. Indicators Surface Mode Symbol Body Mode Symbol Digital Readout Battery Symbol Log Number Stored Temperatures Temperature °C/°F Buzzer symbol...
  • Page 7: Description Of Symbols

    Non-Contact Forehead IR Thermometer User Manual 7. Description of Symbols The device is in accordance with Medical Device Directive 93/42/ EEC 0197 The device is in accordance with FCC Part 15 Subpart B: 2007 /Radio Frequency Devices IC Regulation ICEC-00 3: 2004 Interference-causing Equipment Standard- Digital Apparatus 3V DC power supply (2x 1.5v AA Batteries)
  • Page 8: Technical Specifications

    Non-Contact Forehead IR Thermometer User Manual 8. Technical Specifications Normal Conditions of Use Display Resolution 0.1°C (0.1°F) Operating Temperature 10°C to 40°C (50°F to 104°F) Storage Temperature 0°C to 50°C (32°F to 122°F) Humidity Rate ≤ 85% Power DC 3V (2x 1.5v AA Batteries) Size 149 x 77x 43 mm / 5.9 x 3 x 1.7 in (L X W X H) Gross: 0.88lbs/400g...
  • Page 9: Advice For The 1 10. Use

    Non-Contact Forehead IR Thermometer User Manual 9. Advice for the First Use For stable and reliable results, it is essential to check the Non-Contact Body Infrared Thermometer and change as needed, as follows: step: Take the temperature of a person using a conventional thermometer;...
  • Page 10 Non-Contact Forehead IR Thermometer User Manual 10. Use 10-1. Install battery. 10-2. Prior to the first use or when inserting new batteries wait at least 10 minutes for device to warm up. 10-3. lf use is suspended for a long period, once turned on the device will test the room temperature and delay start for 1 to 2 seconds.
  • Page 11: Measuring Operation

    Non-Contact Forehead IR Thermometer User Manual 11. Measuring Operation 11-1. Choosing the Temperature Unit - F1 Function Press “MODE” button for 2 seconds, the screen displays: F1. Select “DOWN” for degrees Celsius, “UP” for degrees Fahrenheit. 11-2. Alarm Setup - F2 Menu Press “MODE”...
  • Page 12 Non-Contact Forehead IR Thermometer User Manual 11-6. The Non-Contact Body Infrared Thermometer is designed to take the body temperature of a human being. Measurement range for “Body” mode is 32°C to 42.5°C (86°F to108°F). In “Surface” mode you can also use the Non-Contact Body Infrared Thermometer to measure the temperature of an area or an object, a food, a liquid or room temperature.
  • Page 13: Advice

    Non-Contact Forehead IR Thermometer User Manual 12. Advice • The protective glass covering the lens is the most fragile part of the thermometer. Please take great care to prevent damage. • Do not use rechargeable batteries. • Do not place device in fire. •...
  • Page 14: Troubleshooting

    Non-Contact Forehead IR Thermometer User Manual 14. Troubleshooting The following may be used to address common problems. If the problem persists please contact customer service. The screen displays the body temperature lower than 32°C (89.6°F) If you’re on “Surface” mode the 32°C (89.6 °F) temperature displayed shows the external body temperature.
  • Page 15 Maintain a distance of 5 cm to 15 cm (2 in to 5.9 in). From high/low temperature Wait 10 minutes before taking the condition to room temperature. body temperature. Contact Tech Support at: Phone: 925-249-2250 Ext 5120 Toll Free: 800-390-0804 US & Canada Email: techsupport@deltatrak.com...
  • Page 16: This Appliance Conforms To The Following Standards

    This device has been tested and approved in accordance with EN60601-1-2:2007 for EMC. This does not guarantee in any way that the device will not be affected by electromagnetic interference. Avoid using the device in high electromagnetic environments. © 2020 DeltaTrak, Inc.
