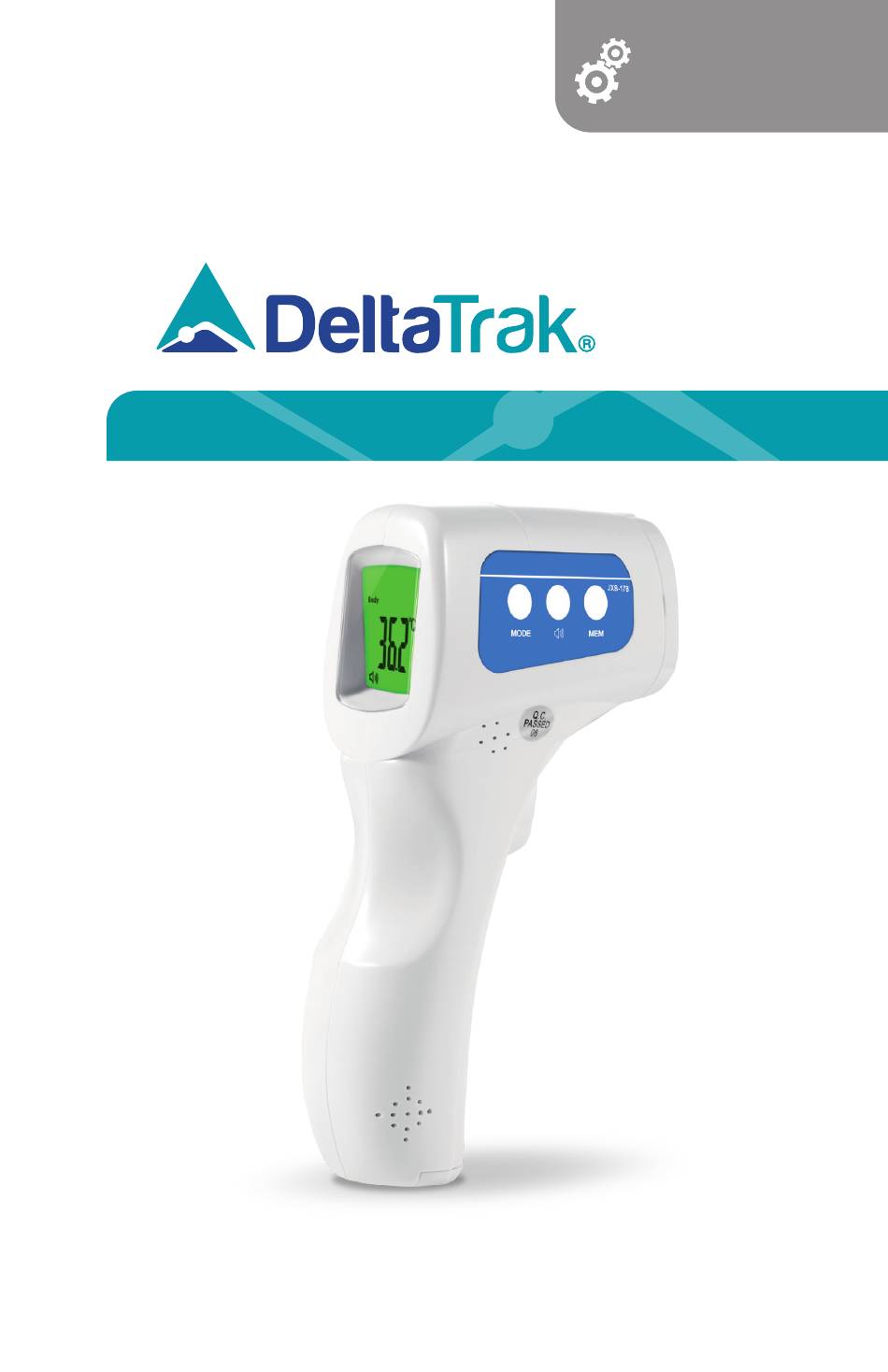

- Page 1 User Guide Model 15007 JXB-178 Non-Contact Forehead Infrared Thermometer Please read this manual before operating unit. Important safety information inside.
-
Page 2: Table Of Contents
Contents General Description ..............1 Intended Use ................1 Features ..................2 Configuration ................2 Explanation of Symbols ............3 Specifications ................3 Safety Information ..............4 Advantages of Temporal Artery (ta) Temperature ......4 Operating Principle ..............4 Temperature Modes and Function ..........4 Setting the Mode ................. 5 F1: Choosing the Measurement Scale ......... -
Page 3: Features
Features • Designed to take human body temperature at 3cm to 5cm (1.2in to 2in) from forehead • High fever alarm • Memory holds the last 32 temperature measurements • Three color backlight LCD digital display • Selectable °C/°F • Automatic power-off (<30 secs) to conserve energy •... -
Page 4: Explanation Of Symbols
Explanation of Symbols The device is in accordance with Medical Device Directive 93/42/ EEC. The device is in accordance with CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014 Interference-causing Equipment Standard - Digital Apparatus. 3V DC power supply (2x 1.5v AA Batteries) IEC 60417-5333, Type BF applied part In order to protect the environment, please recycle the battery according to the local regulations. -
Page 5: Safety Information
Safety Information • Follow the maintenance advice stipulated in this instruction manual. • This device may be used for professional purposes or for personal home use. • Use this device for the purposes described in this instruction manual only. • Use this device in an ambient temperature range of 10°C to 40°C (50°F to 104°F). -
Page 6: Setting The Mode
Press the measurement trigger to power on the device. The LCD screen will display “----°C” or “---°F. This Home Screen must be displayed before programming or taking temperature measurement. (The device will enter sleep mode after 30 seconds. Press the measurement trigger to “wake up” the device.) Setting the Mode •... -
Page 7: Helpful Tips For Reliable Results
the temperature. Be sure to remove any obstacle which could alter the measurement, such as hair, perspiration, etc. • If the result is the same as the CLINICAL THERMOMETER, The Non-Contact Forehead Infrared Thermometer is properly set and ready to use. •... -
Page 8: Instructions For Taking Body Temperature
Instructions for Taking Body Temperature • To take the body temperature of an individual, press the measurement trigger to go to Home Screen. • From no more than 3cm to 5cm (1.2in to 2in), aim the device at the middle of the forehead of the individual being screened. Press the measurement trigger to take the temperature. -
Page 9: Other Uses
Normal Temperatures According To Age Temp °C Temp °F 0-2 years 36.4 to 38.0 97.5 to 100.4 3-10 years 36.1 to 37.8 97.0 to 100.0 11-65 years 35.9 to 37.6 96.6 to 99.7 > 65 years 35.8 to 37.5 96.4 to 99.5 Other Uses The Non-Contact Forehead Infrared Thermometer can also be used to measure the temperature of a baby-bottle or bath (Surface mode), or... -
Page 10: Troubleshooting
The measuring distance is too far. 5 cm (1.2 in to 2 in). Device has not acclimated to the Wait 15 minutes and repeat screening room temperature. temperature measurement. Contact Tech Support at: Phone: 925-249-2250 Ext 5120 Toll Free: 800-390-0804 US & Canada Email: techsupport@deltatrak.com... -
Page 11: Warranty
1 year or 100,000 measurements against defects in material and workmanship from the date of purchase. Compliance • EU Directive 93/42/EEC concerning medical products • ISO 80601-2-56 • European Standard EN60601-1-2 ©2020 DeltaTrak,Inc. - Page 12 DeltaTrak Corporate P.O. Box 398 Pleasanton CA 94566 (925) 249-2250 (800) 962-6776 www.deltatrak.com DTI Mexico International Guadalajara, Mexico +52-33-3188-3161 / 36712190 www.deltatrakmexico.com DTI South America SA Santiago, Chile +562 2758 2866 +569 7477 1061 www.deltatraksouthamerica.com...
