- Page 1 User Guide Model 15045 Non-Contact Forehead Infrared Thermometer CK-T1501 Please read this manual before operating unit. Important safety information inside.
-
Page 2: Table Of Contents
Contents Product Introduction and Classification ............1 Operating Principle ..................2 Product Features ..................3 Updated Features ..................3 Structure and Composition ................3 Technical Parameters ..................4 Configuration ....................5 ................5 LCD Screen Indicators Setting Operation ..................6 Measurement Mode ..................F1: Temperature Scale ..................F2: Temperature Alarm ................................7 F3: Temperature Calibration ....................7... -
Page 3: Operating Principle
and other industries. Not intended for use in the emergency medical services environment. This device is a Type B applied part. It is a European Union Class II device and has an International Protection Code of IP22. (The first 2 indicates the device is protected against solid foreign objects of 12.5 mm in diameter and greater. -
Page 4: Product Features
3. Product Features • Precision infrared sensor • Quickly acclimates to ambient temperature • Proprietary probe design to ensure more accurate measurements • Two measurement modes (Body/Object) with convenient and practical mode selection switch • High temperature alarm • Automatically saves last measurement value •... -
Page 5: Technical Parameters
6. Technical Parameters Measuring Method Non-Contact Measuring Distance 3cm - 5cm (1.2in - 1.9in) Measuring Range 32°C - 42.5°C (89.6°F – 108.5°F) ±0.2°C (Within 35°C - 42°C) (±0.36°F) Tolerance Scope ±0.3°C (Out of range 35°C - 42°C) Display Resolution 0.1°C (O.1°F) Temperature 10°C - 40°C (50°F - 104°F) Operation Conditions Relative Humidity 15% - 85% (Non-Condensing) -
Page 6: Configuration
7. Configuration Infrared Probe LCD Screen Mode Selection Switch Down Button Up Button Set Button Measurement Trigger Battery Compartment Cover LCD Screen Indicators Surface Scanning Mode Body Scanning Mode Temperature Reading Battery Symbol (displayed when low) Memory Log Number Stored Readings Temperature Scale (°C/°F) Buzzer Symbol (displayed when on) -
Page 7: Setting Operation
8. Setting Operation The following settings may be adjusted using the Function menu: Temperature Scale (°C/°F), Temperature Alarm, Temperature Calibration and Buzzer. See the table below for more information. Menu Function “-” Key “+” Key Default Note Temperature °C °F °C Scale Range... -
Page 8: F1: Temperature Scale
F1: Temperature Scale • Press the Set button for 2 seconds. • The screen will show F1. (Figure 8.3) • Press “+” button to select °C (Figure 8.4) or “-” button to select °F. (Figure 8.5) (Figure 8.3) (Figure 8.4) (Figure 8.5) F2: Temperature Alarm •... -
Page 9: Temperature Calibration Method
Modify Settings To modify a setting, press the Set button until the appropriate menu is displayed and follow the instructions above. 9. Temperature Calibration Method • To calibrate the Non-Contact Infrared Forehead Thermometer, first take the subject’s temperature with a CLINICAL THERMOMETER. The result will be 36.5°C (99.5°F), for example. - Page 10 taking temperature. • When used outside the appropriate operating environment, the temperature reading may be inaccurate. • The device measures the surface temperature of an object. It does not measure the core temperature. • To prevent injury, be aware that the actual temperature of an object is much higher than the measurement given by the infrared non-contact thermometer.
-
Page 11: Instructions For Taking Body Temperature
11. Instructions for Taking Body Temperature • Ensure Body Mode is indicated on the LCD screen. • Point the thermometer probe at the middle of the subject’s forehead from a distance of 3 to 5cm (1.18 to 1.97in). (Figure 11.1) •... -
Page 12: Instructions For Taking Surface (Object) Temperature
12. Instructions for Taking Surface (Object) Temperature • To take surface/object temperature, switch device to Object mode. • (1.18 1.97in) From a distance of 3 – 5cm – , holding the device vertically, point it at the surface/object. • Press the Measurement trigger. •... -
Page 13: Maintenance And Cleaning
14. Maintenance and Cleaning • Always clean the sensor and the area around the probe to prevent issues with measurement accuracy. • Wipe dirt with a clean soft cloth or cotton swab moistened with Isopropyl alcohol or water. • Do not expose the device to water. •... -
Page 14: Troubleshooting
Contact Tech Support at: Phone: 925-249-2250 Ext 5120 Toll Free: 800-390-0804 US & Canada Email: techsupport@deltatrak.com 16. Warranty The Non-Contact Forehead Infrared Thermometer has a limited warranty period of 1 year from the date of purchase against defects in material... - Page 15 “CK-T1501” “CK-T1501” “CK-T1501” “CK-T1501” ©2020 DeltaTrak,Inc.
- Page 16 DeltaTrak Corporate P.O. Box 398 Pleasanton CA 94566 (925) 249-2250 (800) 962-6776 www.deltatrak.com DTI Mexico International Guadalajara, Mexico +52-33-3188-3161 / 36712190 www.deltatrakmexico.com DTI South America SA Santiago, Chile +562 2758 2866 +569 7477 1061 www.deltatraksouthamerica.com...
Need help?
Do you have a question about the CK-T1501 and is the answer not in the manual?
Questions and answers

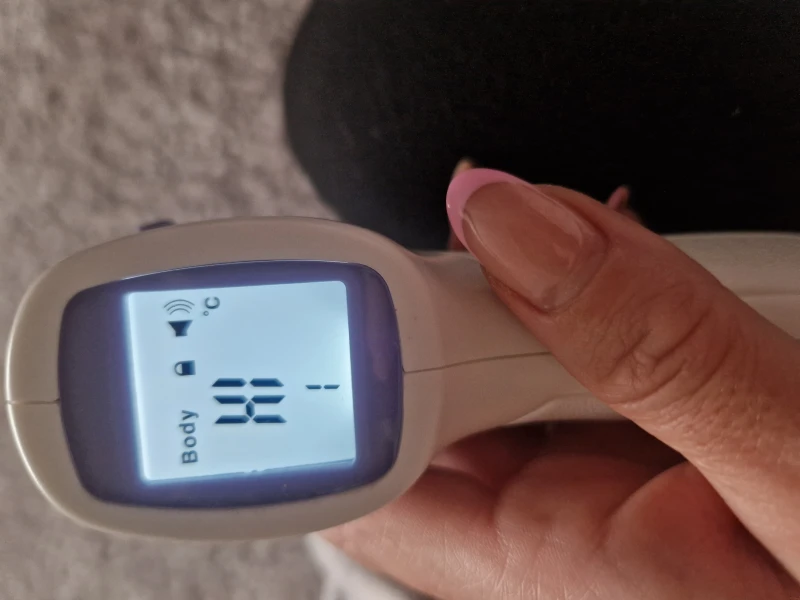

Mine just keeps showing high. No numbers just high. It was working before how do I fix reset this. I have replaced batteries and still same
