- Page 1 User Guide Model 15004 DT-8806H Non-Contact Forehead Infrared Thermometer Please read this manual before operating unit. Important safety information inside.
-
Page 2: Table Of Contents
Contents General Description ..............1 Safety Information ..............1 Features .................2 Intended Use ................2 Configuration ................3 LCD Screen Indicators ............3 Description of Symbols ............4 Technical Specifications ............4 Advice for First Use and Calibration ..........5 ..................5 Measuring Operation ...............6 Advice ..................7 Maintenance and Cleaning ............7 Troubleshooting ..............8... -
Page 3: Features
• Use of this thermometer is not intended as a substitute for consultation with a physician. • Should a problem occur with device, please contact retailer. • Do not attempt to repair the device. • Follow EMC guidelines for maintaining medical electronic products. Features •... -
Page 4: Configuration

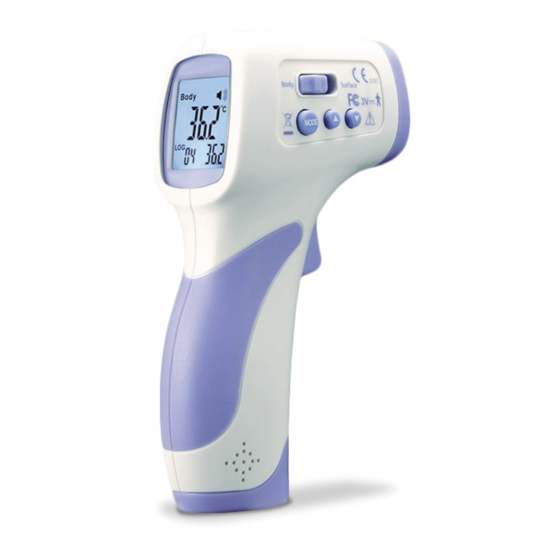

Configuration IR Sensor LCD Display Mode Selection Down Button Up Button Mode Button Measurement Trigger Battery Cover LCD Screen Indicators Surface Mode Symbol Body Mode Symbol Digital Readout Battery Symbol Log Number Stored Temperatures Temperature °C/°F Buzzer symbol Description of Symbols The device is in accordance with Medical Device Directive 93/42/ EEC The device is in accordance with FCC Part 15 Subpart B: 2007 /Radio Frequency Devices IC Regulation ICEC-00 3: 2004 Interference-causing Equipment Standard - Digital Apparatus... -
Page 5: Use
Specifications Display Resolution: 0.1°C (0.1°F) Operating Temperature: 10°C to 40°C (50°F to 104°F) Storage Temperature: 0°C to 50°C (32°F to 122°F) Humidity Rate: ≤ 85% Power: DC 3V (2x 1.5v AA Batteries) Size: 149 mm x 77mm x 43mm / 5.9 in x 3in x 1.7 in (L x W x H) Weight: Gross: 0.88lbs/400g Net: 0.38lbs/172g Measurement Range... -
Page 6: Measuring Operation
For First Use and Calibration For stable and reliable results, it is essential to check the Non- Contact Body Infrared Thermometer and change as needed, as follows: Take the temperature of a person using a CLINICAL THERMOMETER; you will get 37.5°C (99.5°F) for example. Take the temperature of the same person using the Non-Contact Body Infrared Thermometer keeping the 5 cm to 15 cm (2 in to 5.9 in) distance between the thermometer and the forehead. -
Page 7: Advice
The Non-Contact Body Infrared Thermometer is designed to take the body temperature of a human being. Measurement range for Body mode is 32°C to 42.5°C (86°F to108°F). In Surface mode you can also use the Non-Contact Body Infrared Thermometer to measure the temperature of an area or an object, a food, a liquid or room temperature. -
Page 8: Troubleshooting
Wait 10 minutes and repeat temperature screening room temperature. measurement. Contact Tech Support at: Phone: 925-249-2250 Ext 5120 Toll Free: 800-390-0804 US & Canada Email: techsupport@deltatrak.com Compliance • EN12470-5: European Standard for Clinical Thermometer Performance - Infrared Ear Thermometers •... - Page 9 DeltaTrak Corporate P.O. Box 398 Pleasanton CA 94566 (925) 249-2250 (800) 962-6776 www.deltatrak.com DTI Mexico International Guadalajara, Mexico +52-33-3188-3161 / 36712190 www.deltatrakmexico.com DTI South America SA Santiago, Chile +562 2758 2866 +569 7477 1061 www.deltatraksouthamerica.com...
