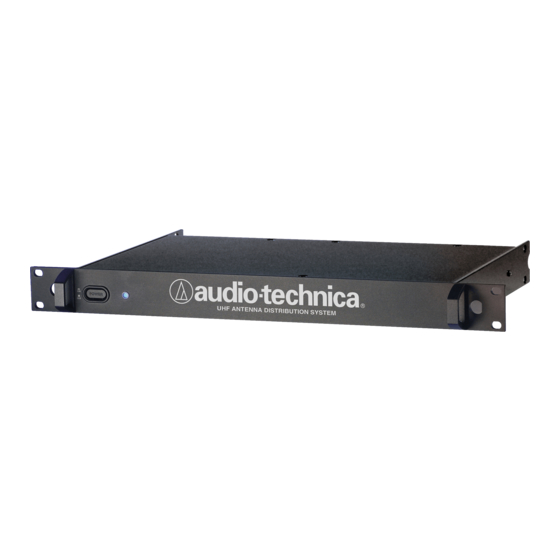

- Page 1 Professional UHF Wireless Systems AEW-DA550C Diversity UHF Antenna Distribution System, 540-565 MHz AEW-DA660D Diversity UHF Antenna Distribution System, 655-680 MHz Installation and Operation...
- Page 2 The AEW-DA550C and AEW-DA660D are UHF active unity-gain diversity antenna distribution systems. Identical in all other respects, the AEW-DA550C operates over a nominal 540-565 MHz range, while the AEW-DA660D operates over a nominal 655-680 MHz range. These units are designed to complement wireless systems operating in the Audio-Technica “C”...
- Page 3 Power Connections The switching power supply is designed to operate properly from any AC power source 100–240V, 50/60 Hz without user adjustment. Simply connect the receiver to a standard AC power outlet, using only an IEC 320-type input cordset approved for the country of use. Power to the unit is controlled by the front-panel Power switch.
-
Page 4: Specifications
Nominal Frequency Range AEW-DA550C 540-565 MHz AEW-DA660D 655-680 MHz Nominal Amplifier Gain 0 dB, ±3 dB Nominal Cascade Gain –3 dB, ±3 dB Input Impedance 50 ohms Output Impedance 50 ohms In-line Antenna Power +12V DC on RF input jacks,...
