CONTROLS AND INDICATORS

HEAD UNIT

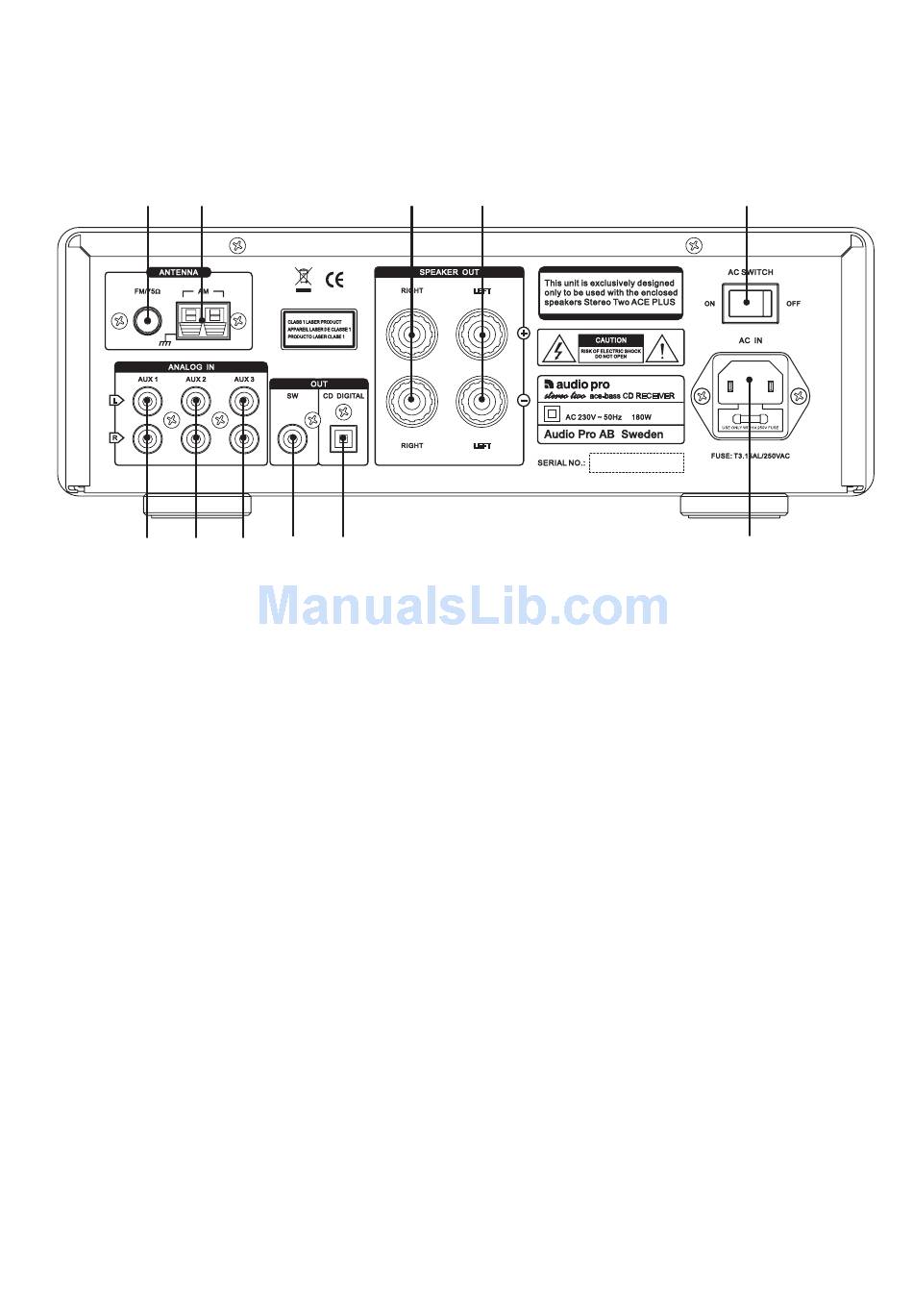

Rear panel
1
11
1) Connecting the FM indoor antenna
Connect the enclosed FM indoor antenna. Locate
the wire where the reception will be optimal.
NOTE: It is also possible to connect a central or
outdoor antenna here; either one will provide better
reception than the indoor antenna.
2) Connecting the AM antenna
Connect the enclosed AM antenna. Place the ring
as far from the main component, TV, and power
cables as possible. Adjust the direction of the an-
tenna for the best reception.
3 & 4) Speaker terminals
Connect the included speaker cables – the right
channel to 3 and the left channel to 4. Make sure to
also connect + to + and – to – on the speakers. See
separate section on page 10.
5) MAINS [ON/OFF] switch
The mains [ON/OFF] switch must be in the ON
position in order for the power switch on the front
of the panel to function. The unit should only be
turned off completely if it is not going to be used
for longer periods of time, if repair work needs to
be performed, or if cables need to be switched out.
6) Power outlet
Only connect the power cable after all other con-
nections have been completed.
2
10 9 8 7
3 4
7) Digital optical output from CD
Connect an optical cable for digital transfer to
another component, such as a MiniDisc player.
8) Subwoofer output
Output for an active subwoofer (with built-in ampli-
fier). Connect a low-level cable between the sub-
woofer and this output. A subwoofer is an extra
accessory.
9) AUX input 3
Input for other external audio sources such as CD
player, DVD player*, Cassette player, MiniDisc or
Mp3 player.
10) AUX input 2
Input for other external audio sources such as CD
player, DVD player*, Cassette player, MiniDisc or
Mp3 player.
11) AUX input 1
IInput for other external audio sources such as CD
player, DVD player*, Cassette player, MiniDisc or
Mp3 player.
*Note: The video signal has to be connected to the
TV set directly.
