STEREO ONE acE PLUS SPEaKERS
Stereo Two acE PLUS speakers
These speakers are included in the packaging. They were designed and developed to be used exclusively with the
Stereo Two CD receiver. These speakers can not be connected to another amplifier. The enclosed speaker cables
can be replaced by another cable if other length is required.
Thanks to Audio Pro's patented ACE BASS technology, Stereo Two ACE PLUS, together with the Stereo Two CD
receiver, offers a unique audio experience.
What is acE baSS?
The laws of physics apply to the construction of ordinary speakers. As a consequence, in order for it to reproduce a
deep bass, the speaker cabinet would have to be very big. With our ace bass technology, we can "alter" the laws of
physics to make the speaker element believe that it is housed in a much bigger speaker cabinet than it is really is. In
addition, this technology also makes it possible for us to improve the unit's electronic performance and properties.
connecting the speakers
Read more about connecting the speakers on page
0. Be careful to connect the red cable to + and the
black cable to -. Use only the included cables. They
must not be shortened or lengthened.
Note that the cables are different. The end with the
crimped fork terminals must be connected to the
speakers.
Placement
The Stereo Two ACE PLUS is designed to be placed
on a stand, table, or bookshelf. If the speaker is
placed on a bookshelf, make sure that there is at
least 0 cm [4 inches] of space in back of it.

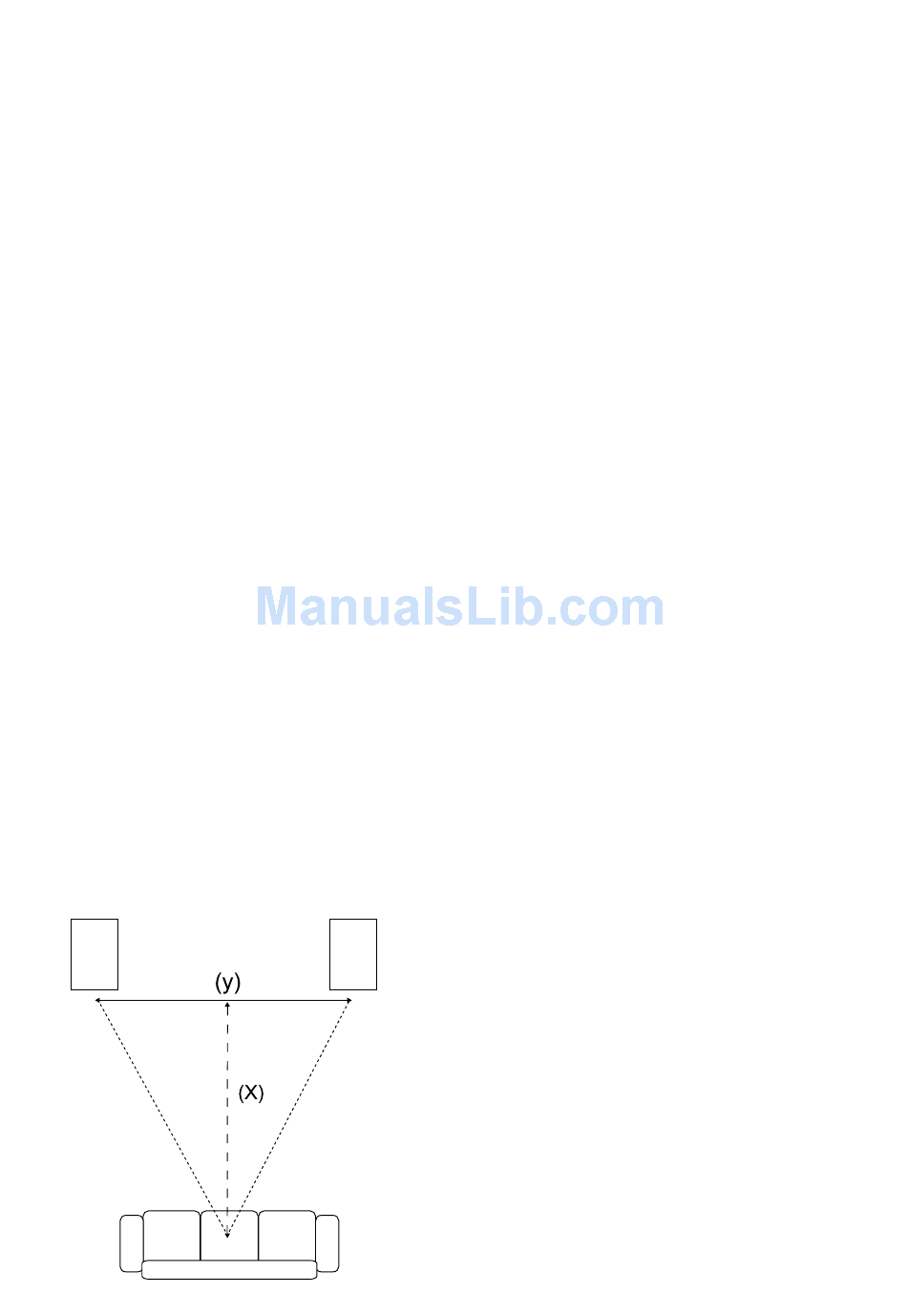

Try to place the speaker in accordance with the
figure below. For an optimal stereo image, axis (y)
should be shorter than axis (x). For a wider stereo
image, the speakers can be turned inward slightly.
Technical data: Stereo Two acE PLUS
Type:.............-way passive radiator, ace-bass
Drivers:
Tweeter:..............................." Aluminum dome
Woofer:.........................5 /4" Polyglass cone
Racetrack Passive radiator:.............5 /4" x 8"
Crossover frequency:.........................800Hz
Frequency range:.................Hz - 40.000Hz
Impedance:............................................4 ohm
Dimensions: (Wx H x D):..95x50x0 (+5) mm
Note:
Stereo Two ACE PLUS is intended for use
with the Stereo Two CD receiver only.
Use only Audio Pro original parts to replace
a speaker element or other component in
the speakers. Contact your retailer for more
information.
9
