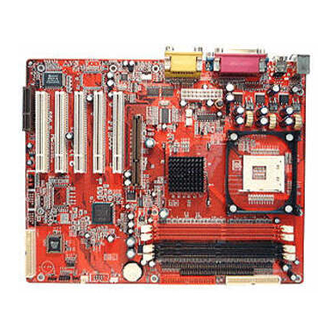

MATSONIC MS9047C Series User Manual
  1. Manuals
  2. Brands
  3. MATSONIC Manuals
  4. Motherboard
  5. MS9047C Series
  6. User manual

MATSONIC MS9047C Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Mainboard User's Manual
This publication, photographs, illustrations and software are under
the protection of international copyright laws and all rights
reserved. It does not allow any reproduction of this manual,
content and any materials contained herein without the written
consent of the authentic manufacturer.
The information in this manual is subject to change without notice.
The manufacturer does neither represent nor warrant the contents
hereof; and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Furthermore,
the manufacturer reserves the right to revise and change this
publication from time to time, without the obligation of notifying
any person of such revision or changes.
Trademarks
IBM, VGA, and PS/2 are registered trademarks of International
Business Machines.
Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered
trademarks of Intel Corporation.
Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are
registered trademarks of Microsoft Corporation.
PC-cillin is a trademark of Trend Micro Inc.
AMI is a trademark of American Megatrends Inc.
MediaRing Talk is a registered trademark of MediaRing Inc.
3Deep is a registered trademark of E-Color Inc.
It has been acknowledged that all mentioned brands or product
names are trademarks or registered trademarks of their respective
holders.
Copyright © 2002
All Rights Reserved
MS9047C Series, V1.1B
I845D/April 2002

Advertisement

Table of Contents
loading

Related Manuals for MATSONIC MS9047C Series

Summary of Contents for MATSONIC MS9047C Series

  • Page 1 MediaRing Talk is a registered trademark of MediaRing Inc. 3Deep is a registered trademark of E-Color Inc. It has been acknowledged that all mentioned brands or product names are trademarks or registered trademarks of their respective holders. Copyright © 2002 All Rights Reserved MS9047C Series, V1.1B I845D/April 2002...
  • Page 2 Mainboard User’s Manual Notice: Owing to Microsoft’s certifying schedule is various to every supplier, we might have some drivers not certified yet by Microsoft. Therefore, it might happen under Windows XP that a dialogue box (shown as below) pop out warning you this software has not passed Windows Logo testing to verify its compatibility with Windows XP.

  • Page 3: Table Of Contents

    Mainboard User’s Manual Table of Contents Chapter 1: Introduction ..............1 Key Features................2 Package Contents ..............4 Static Electricity Precautions...........5 Pre-Installation Inspection............5 Chapter 2: Mainboard Installation...........7 Mainboard Components ............8 I/O Ports ..................9 Installing the Processor............10 Installing Memory Modules ..........11 Jumper Settings ..............13 Install The Mainboard ............15 Optional Extension Brackets ..........16 Install Other Devices .............18...
  • Page 4 Mainboard User’s Manual...

  • Page 5: Chapter 1: Introduction

    1: Introduction Chapter 1 Introduction This mainboard has a Socket-478 support for Intel Pentium4 processors with front-side bus (FSB) speeds up to 400 MHz This mainboard has the Intel 845D chipset that contains Intel 82845 Memory Controller Hub and Intel 82801BA I/O Controller Hub.

  • Page 6: Key Features

    Mainboard User’s Manual Key Features This mainboard has these key features: Socket-478 Processor ♦ Supports Intel Pentium 4 series CPUs ♦ Supports up to 400 MHz Front-Side Bus Memory Support ♦ Two 168-pin DIMM slots for SDRAM memory modules ♦ Two 184-pin DIMM slots for DDR SDRAM memory modules ♦...
  • Page 7 1: Introduction Onboard I/O Ports The mainboard has a full set of I/O ports and connectors: ♦ Two PS/2 ports for mouse and keyboard ♦ Two serial ports ♦ One parallel port ♦ One MIDI/game port ♦ Four USB ports (two back-panel ports, onboard USB headers providing maximum two extra ports) ♦...

  • Page 8: Package Contents

    Mainboard User’s Manual Package Contents Attention: This mainboard serial has two models, MS9047C and MS9047C+. Please contact your local supplier for more information about your purchased model. Each model supports different specification listed as below: Model Specification MS9047C Supports two DDR only MS9047C+ Supports two DDR + two SDR DRAM...

  • Page 9: Static Electricity Precautions

    1: Introduction Static Electricity Precautions Static electricity could damage components on this mainboard. Take the following precautions while unpacking this mainboard and installing it in a system. 1. Don’t take this mainboard and components out of their original static-proof package until you are ready to install them. 2.
  • Page 10 Mainboard User’s Manual...

  • Page 11: Chapter 2: Mainboard Installation

    2: Mainboard Installation Chapter 2 Mainboard Installation To install this mainboard in a system, please follow these instructions in this chapter: Identify the mainboard components Install a CPU Install one or more system memory modules Make sure all jumpers and switches are set correctly Install this mainboard in a system chassis (case) Connect any extension brackets or cables to connecting headers on the mainboard...

  • Page 12: Mainboard Components

    Mainboard User’s Manual Mainboard Components Identify major components on the mainboard via this diagram underneath. Note: Any jumpers on your mainboard that do not appear in this illustration are for testing only.

  • Page 13: I/O Ports

    2: Mainboard Installation I/O Ports The illustration below shows a side view of the built-in I/O ports on the mainboard. Parallel port (LPT1) Game port PS/2 mouse PS/2 Serial port Serial port Microphone keyboard ports COM 1 COM 2 Line-in Line-out 1.

  • Page 14: Installing The Processor

    Mainboard User’s Manual Installing the Processor This mainboard has a Socket 478 processor socket. When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.

  • Page 15: Installing Memory Modules

    2: Mainboard Installation Installing Memory Modules This mainboard accommodates 168-pin 3.3V/184-pin 2.5V unbuffered SDRAM memory modules. The memory chips must be standard or registered SDRAM (Synchronous Dynamic Random Access Memory). The CPU supports 100MHz system bus. The SDRAM DIMMs and DDRs can synchronously work with 100 MHz or operates over a 133 MHz memory bus.
  • Page 16 Mainboard User’s Manual Installation Procedure The mainboard accommodates two memory modules. You must install at least one module in any of the three slots. Each module can be installed with up to 2 GB system memory. Refer to the following to install the memory modules. 1.

  • Page 17: Jumper Settings

    2: Mainboard Installation Jumper Settings JT10 JP1: DDR/SDR DRAM Type Selector This jumper enables to select DDR or SDR DRAM type. Function Jumper Setting SDRAM Short Pins 1-2 Short Pins 2-3 JT1~JT10: DDR/SDR DRAM Type Selector This jumper enables to select DDR or SDR DRAM type. Function Jumper Setting SDRAM...
  • Page 18 Mainboard User’s Manual JP2: Clear CMOS Jumper Use this jumper to clear the contents of the CMOS memory. You may need to clear the CMOS memory if the settings in the Setup Utility are incorrect and prevent your mainboard from operating. To clear the CMOS memory, disconnect all the power cables from the mainboard and then move the jumper cap into the CLEAR setting for a few seconds.

  • Page 19: Install The Mainboard

    2: Mainboard Installation Install the Mainboard Install the mainboard in a system chassis (case). The board is an ATX size mainboard with a twin-tier of I/O ports. You can install this mainboard in an ATX case. Ensure that your case has an I/O cover plate that matches the ports on this mainboard.

  • Page 20: Optional Extension Brackets

    Mainboard User’s Manual Connect the case switches and indicator LEDs to the PANEL1 header. Here is a list of the PANEL1 header’s pin assignments. Signal Signal HDD_LED_P ACPI-LED HDD_LED_N ACPI-LED RESET_SW_N POWER-BT RESET_SW_P POWER-BT If there are a headphone jack or/and a microphone jack on the front panel, connect the cables to the AUDIO1 header on the mainboard.
  • Page 21 2: Mainboard Installation Extended USB Module This module bracket has two USB ports for more USB devices USB2 Signal Signal VERG_FP_USBPWR0 VERG_FP_USBPWR0 USB_FP_P0- USB_FP_P1- USB_FP_P0+ USB_FP_P1+ GROUND GROUND USB_FP_OC0 1. Locate the USB2 header on the mainboard. 2. Plug the bracket cable onto the USB2 header. 3.

  • Page 22: Install Other Devices

    Mainboard User’s Manual Install Other Devices Install and connect any other devices in the system following the steps below. FLOPPY IDE1 IDE2 Floppy Disk Drive The mainboard ships with a floppy disk drive cable that can support one or two drives. Drives can be 3.5” or 5.25” wide, with capacities of 360K, 720K, 1.2MB, 1.44MB, or 2.88MB.
  • Page 23 2: Mainboard Installation If you want to install more IDE devices, you can purchase a second IDE cable and connect one or two devices to the Secondary IDE channel connector IDE2 on the mainboard. If you have two devices on the cable, one must be Master and one must be Slave. Internal Sound Connections If you have installed a CD-ROM drive or DVD-ROM drive, you can connect the drive audio cable to the onboard sound system.
  • Page 24 Mainboard User’s Manual WOL1: Wake On LAN If you have installed a LAN card, use the cable provided with the card to plug into the mainboard WOL1 connector. This enables the Wake On LAN (WOL1) feature. When your system is in a power- saving mode, any LAN signal automatically resumes the system.

  • Page 25: Expansion Slots

    2: Mainboard Installation Expansion Slots This mainboard has one AGP, one CNR and five 32-bit PCI slots. CNR1 PCI1 PCI2 PCI3 PCI4 PCI5 Follow the steps below to install an AGP/CNR/PCI expansion card. 1. Locate the AGP, CNR or PCI slots on the mainboard. 2.
  • Page 26 Mainboard User’s Manual CNR Slot This slot is used to insert CNR(Communications and Networking Riser) cards including LAN, Modem, and Audio functions.

  • Page 27: Chapter 3: Bios Setup Utility

    3: BIOS Setup Utility Chapter 3 BIOS Setup Utility Introduction The BIOS Setup Utility records settings and information of your computer, such as date and time, the type of hardware installed, and various configuration settings. Your computer applies those information to initialize all the components when booting up and basic functions of coordination between system components.

  • Page 28: Running The Setup Utility

    Mainboard User’s Manual Running the Setup Utility Every time you start your computer, a message appears on the screen before the operating system loading that prompts you to “Hit <DEL>if you want to run SETUP”. Whenever you see this message, press the Delete key, and the Main menu page of the Setup Utility appears on your monitor.

  • Page 29: Standard Cmos Setup Page

    3: BIOS Setup Utility Standard CMOS Setup Page This page displays a table of items defining basic information about your system. AMIBIOS SETUP – STANDARD CMOS SETUP (C) 2000 American Megatrends, Inc. All Rights Reserved Date (mm/dd/yy) : Thur April 18, 2002 Time (hh/mm/ss) : 15:58:43 32Bit Type...

  • Page 30: Advanced Setup Page

    Mainboard User’s Manual Advanced Setup Page This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer. AMIBIOS SETUP – ADVANCED SETUP (C) 2000 American Megatrends, Inc. All Rights Reserved Quick Boot Enabled Boot Device...
  • Page 31 3: BIOS Setup Utility Floppy Drive If you have two diskette drives installed Swap and you enable this item, drive A becomes drive B and drive B becomes drive A. Floppy Drive If you enable this item, your system will Seek check all floppy disk drives at start up.
  • Page 32 Mainboard User’s Manual SDRAM RAS# to This field lets you insert a timing delay CAS# Delay between the CAS and RAS strobe signals, used when SDRAM is written to, read from, or refreshed. Disabled gives faster performance; and Enabled gives more stable performance. SDRAM RAS# The precharge time is the number of cycles it takes for SDRAM to...

  • Page 33: Power Management Setup Page

    3: BIOS Setup Utility Power Management Setup Page This page sets some parameters for system power management operation. AMIBIOS SETUP – POWER MANAGEMENT SETUP (C) 2000 American Megatrends, Inc. All Rights Reserved Keyboard Power On Function Disabled Specific Key for PowerOn ACPI Aware O/S Power Management/APM Enabled...
  • Page 34 Mainboard User’s Manual Hard Disk This sets the timeout to power down the Time Out hard disk drive, if the time selected passes without any hard disk activity. (Minute) Suspend Time This sets the timeout for Suspend mode in Out (Minute) minutes.

  • Page 35: Pci/Plug And Play Setup Page

    3: BIOS Setup Utility PCI / Plug and Play Setup Page This page sets up some parameters for devices installed on the PCI bus and those utilizing the system plug and play capability. AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP (C) 2000 American Megatrends, Inc.

  • Page 36: Load Optimal Settings

    Mainboard User’s Manual Load Optimal Settings If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the Setup Utility loads a set of fail-safe default values. These default values are not very demanding and they should allow your system to function with most kinds of hardware and memory chips.

  • Page 37: Features Setup Page

    3: BIOS Setup Utility Features Setup Page This page sets up some parameters for peripheral devices connected to the system. AMIBIOS SETUP – FEATURES SETUP (C) 2000 American Megatrends, Inc. All Rights Reserved USB Function Support Enabled USB Function For DOS Disabled ThumbDrive Support For DOS Disabled...
  • Page 38 Mainboard User’s Manual OnBoard FDC Use this item to enable or disable the onboard floppy disk drive interface. OnBoard Serial Use these items to enable or disable the PortA/B onboard COM1/2 serial port, and to assign a port address. Onboard Use this item to enable or disable the Parallel Port onboard LPT1 parallel port, and to assign a...

  • Page 39: Cpu Pnp Setup Page

    3: BIOS Setup Utility CPU PnP Setup Page This page helps you manually configure the CPU of this mainboard. The system will automatically detect the type of installed CPU and make the appropriate adjustments to these items on this page. AMIBIOS SETUP –...

  • Page 40: Hardware Monitor Page

    Mainboard User’s Manual Hardware Monitor Page This page sets up some parameters for the hardware monitoring function of this mainboard. AMIBIOS SETUP – HARDWARE MONITOR (C) 2000 American Megatrends, Inc. All Rights Reserved *** System Hardware *** CPU Temperature 59°C/138°F SYSTEM Temperature 28°C/82°F CPU Fan Speed...

  • Page 41: Change Password

    3: BIOS Setup Utility Change Password If you highlight this item and press Enter, a dialog box appears that you can enter a Supervisor password. You can enter no more than six letters or numbers. Press Enter after you have typed in the password.
  • Page 42 Mainboard User’s Manual...

  • Page 43: Chapter 4: About The Software Cd-Rom

    4: Software & Applications Chapter 4 About the Software CD-ROM The support software CD-ROM that is included in the mainboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your mainboard version.

  • Page 44: Utility Software Reference

    Mainboard User’s Manual Utility Software Reference All the utility software available on the CD-ROM is Windows compliant. It is provided only for the convenience of customers. The following software is furnished under license and may only be used or copied in accordance with the terms of the license. Note: The software in these folders is subject to change at anytime without prior notice.
  • Page 45 4: Software & Applications Super Voice – Fax/Modem Software To install the Super Voice voice, fax, data communication application for use with the built-in fax/modem, run PICSHELL.EXE from the following directory: \UTILITY\SUPER VOICE CD Ghost The CD Ghost software enables you to create a virtual cabinet of CD-ROM drives on your system to help you categorize and organize your CD collection.
