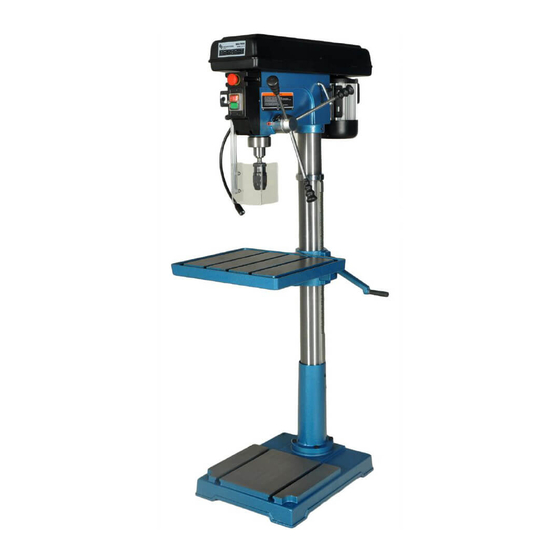

- Page 1 Industrivej 3-9 DK-9460 Brovst Tel.: +45 98 23 60 88 Fax: +45 98 23 61 44 Ma nu a l SCANTOOL DRILL PRESS 25A...
- Page 2 Fax.: +45 98 23 61 44 hereby declares that Scantool DRILL PRESS 25A is manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) – The Machinery Directive (order no. 561 of 25 June 1994 with subsequent...
-
Page 3: Table Of Contents
Table of Contents General safety instructions for Power Tools………………….…………….1-4 Main specification………………………………………………………………...5 Unpacking and checking contents……………………………………………5 List of loose parts in the box and bags………………………………………6 Getting to know your drill press……………………………………………….7 Assembly…………………………………………………………………………..8 Lubrication………………………………………………………………………...9 Maintenance……………………………………………………………………….9 Wire diagram……………………………………………………………………9-10 Trouble shooting………………………………………………………………….11 Repair parts……………………………………………………………………12-16 Warranty……………………………………………………………………………17 General safety instructions for Power Tools 1: KNOW YOUR POWER TOOL Read and understand the owner’s manual and labels affixed to the tool. - Page 4 General Safety Rules WARNING: When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Safety rules for stationary power tools. Follow them to achieve best results and full benefit from your new machine. The good craftsman 1.
- Page 5 6. Avoid dangerous Keep environment. Don’t use children away. power tools in damp or All visitors wet locations or expose should be kept them to rain. Keep your in a safe work area well lighted. distance from work area. Make Don’t force tool.
- Page 6 Maintain tools Don’t with care. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. overreach. Keep proper footing and balance at all times. Disconnect tools Reduce the before servicing and risk of when changing unintentional accessories such as...
-
Page 7: Main Specification
Main Specification Chuck Capacity 20mm Distance, Spindle to column 254mm Max.Spindle travel 120mm Max.distance chuck to table 595mm Max.distance chuck to base 1075mm Overall dimensions (LXMXH) 1727x760x475mm Net Weight 125KGS Range of spindle speeds 12 speeds Motor Speed Spindle Speeds (min 50Hz 1400 min 120 200 250 360 400 450 1280 1520 1840 2240 3480... -
Page 8: List Of Loose Parts In The Box And Bags
List of Loose Parts in the box and bags... -
Page 10: Assembly
Assembly Refer to the figure install all parts correctly, tighten the screw and bolts securely. 1 Collar-Rack 2. Screw-Hex Soc Set M6*1.0-10 3 Support Table w/Indicator 4 Crank 5 Handle-Crank 6 Rack 7 Screw-Hex Soc Set M10*1.5-12 8 support Column 9 Screw-Hex Hd M12*1.75-40 10 Base 11 Tube-Column... -
Page 11: Getting To Know Your Drill Press
Lubrication All of the BALL BEARING are packed with grease at the factory. They require no further lubrication. Periodically lubricate the table elevation mechanism, the SPLINES (grooves) in the spindle, and the RACK (teeth of the quill), see "Getting to know your drill press." Maintenance Frequently blow out any dust that may accumulate inside the motor. - Page 12 .10.
-
Page 13: Trouble Shooting
Trouble Shooting TROUBLE PROBABALE CAUSE REMEDY 1. Incorrect belt tension. 1. Adjust tension. 2. Dry Spindle. 2. Lubricate spindle. Noisy Operation 3. Checking tightness of retaining nut on 3.Loose spindle pulley pulley, and tighten if necessary. 4.Loose motor pulley 4. Tighten setscrews in pulleys. 1. -
Page 14: Repair Parts
Repair Parts FIGURE1 Description Description Collar-Rack Base Screw-Hex Soc Set Tube Column M6*1.0-10 Pin-Table Lock Support-Table w/Indicator Nut-Hex Hd M8*1.25 Crank Screw-Hex Hd M20*2.5-50 Handle-Crank Table w/Scale Rack Pin-Gear Screw-Hex Soc Set Clamp-Column M10*1.5-12 Gear-Helical Support-Column Worm-Elevation Screw-Hex HdM12*1.75-40 .12. - Page 15 Repair Parts FIGURE2 Description Nut-Lock M20*1.5 Ring-Locking Washer Bearing-Ball 20mm Washer-Rubber Tube-Quill Key-drill Key-Chuck Chuck Arbor Spindle Bearing-Ball 30mm Bearing-Thrust .13.
- Page 16 Repair Parts FIGURE3 Description Description Belt-"V"A29 Lock Washer Ext M6 Bearing-Ball 15mm Washer Foam Pully-Center Guard-Pulley w/Labels Pivot-Ldler Ring-Retaining Pulley-Motor Bearing-Ball 30mm Screw-Soc Set M8*1.25-12 Spacer-Bearing Screw-Pan HD M5*0.8-12 Insert-Pulley Clamp-Cord Bushing- Pulley-Spindle Rubber Screw-RD Nut-Pulley Washer Hd M6*1.0-16 Belt-"V"A33 Knob .14.
- Page 17 FIGURE4 .15.
- Page 18 Description Description Screw-Hex HD M8*1.25-16 Box Switch Lever-Adjusting Screw-Pan Cr M6*1.0-35 Support-Motor Bracket Switch Mount-Motor Screw-Self Tap Pan Hd Lockwasher 12mm M4.2*1.4-8 Nut-Hex M8*1.25 Key-Switch Motor Cover-Switch Plate Nut-Hex M8*1.25 Switch-Locker Washer 8 Screw-Pan Cr M6*1.0-15 Cord-Motor Lead-3" Screw-Hex HD M8*1.25-20 Screw-Soc Hd Cap Support-Motor Bracket M8*1.25-25...
-
Page 19: Warranty
Warranty If within 2 years of purchase this machine supplied by Scantool A/S becomes defective due to faulty materials or workmanship we guarantee or replace the machine or defective part or parts free of charge provided that: 1. The product is returned complete to one of our Service Branches or Official Service Agents.
