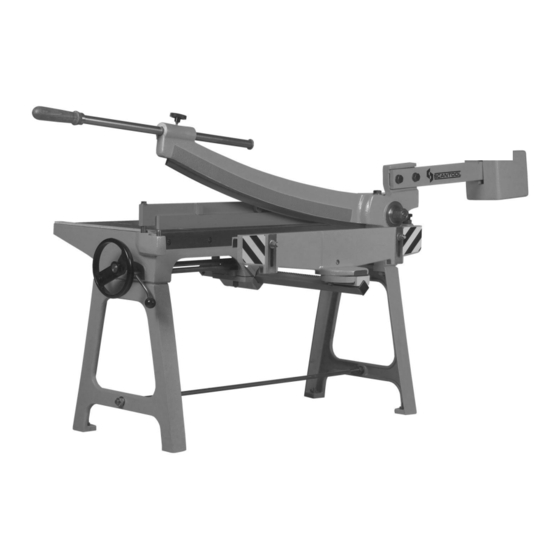

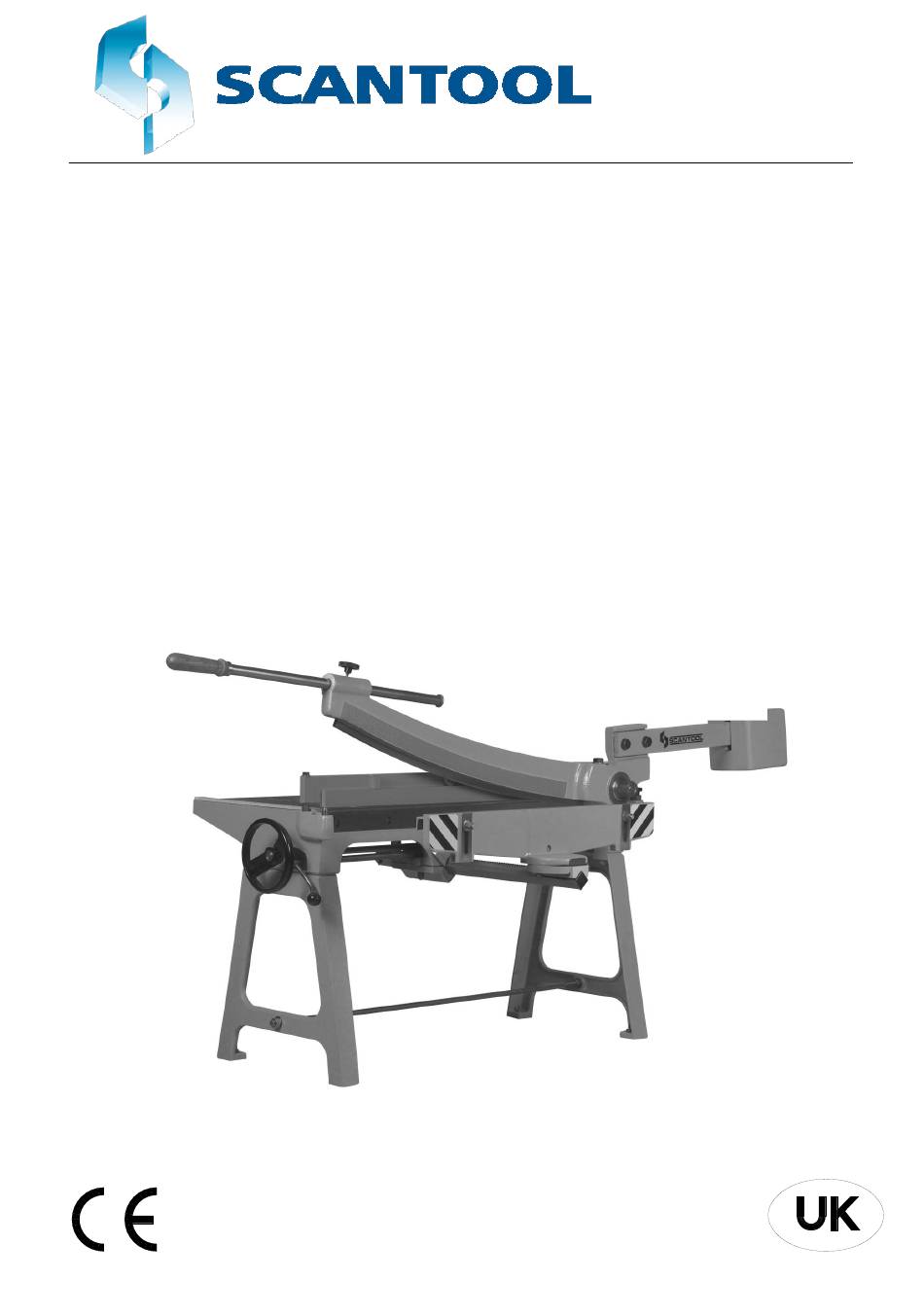

- Page 1 Industrivej 3-9 DK-9460 Brovst Denmark Tlf.: +45 98 23 60 88 Fax: +45 98 23 61 44 Manual SCANTOOL TSX 1060 GUILLOTINE SHEAR...
- Page 2 Tel: +45 98 23 60 88 Fax.: +45 98 23 61 44 hereby declares that SCANTOOL TSX 1060 GUILLOTINE SHEAR are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION 1.1 TECHNICAL CHARACTERISTICS 2. CARRIAGE AND LAYOUT CONDITIONS 2.1 CARRIAGE CONDITIONS 2.2 LAYOUT CONDITIONS 3. PUTTING INTO SERVICE 3.1 MACHINES RUNNING PLACE 3.2 THE MACHINE CALIBRATION ACCORDING TO ENVIRONEMNTAL CONDITIONS 3.3 INSTALLATION OF THE MACHINE 4. -
Page 4: Product Description
1 PRODUCT DESCRIPTION 1.1 Technical Characteristics Cutting Capability 1,5mm Cutting Length 1020mm Platform Width 600mm Back Gauge Distance 625mm Machinery Width 1030/1420mm Machinery Length 2475/1650mm Machinery Height 1080/1360mm Machinery Weight 363Kg 2 CARRIAGE AND LAYOUT CONDITIONS Lift the machine with a crane by using a chain or steel rope. The equipment for the lifting must be adequate for the machinery weight. -
Page 5: Putting Into Service
500mm distance between the movable parts of the machine and the fixed parts or the stored materials. 3.3 Installation of the Machine SCANTOOL TSX 1060 GUILLOTINE SHEAR is delivered, ready for use. You can calibrate the cutting arm stem with a “4 Allen” wrench. 4 WORKING CONDITIONS 4.1 Starting the Machine... -
Page 7: The Functional Use Of The Machine
4.2 The functional use of the machine SCANTOOL TSX 1060 GUILLOTINE SHEAR can be used for metal sheet plates till 1,5mm (st 37) 4.3 Safety measures, which has to be taken during running of the machinery. Follow them to achieve best results and full benefit from your new machine The very good craftsman respects the tools with which he works. - Page 8 10. Use right tool. Don’t force tool or attachment to do a job it 12. Always use safety was not designed for. 11. Wear proper apparel. Wear no glasses. Also use face or loose clothing, gloves, neckties, dust mask if cutting rings, bracelets, or other jewellery operation is dusty.
-
Page 9: Personel Protective Equipment
Keep away from flammable and inflammable substances. The manufacture isn’t responsible for any damages caused by changing the standard equipment of the machine. Because of SCANTOOL TSX 1060 GUILLOTINE SHEAR is cutting with two blades the hands and fingers of the operator can be hurt of careless working. -
Page 10: Maintenance Instructions
8 MAINTENANCE INSTRUCTIONS Oil the cutting arm stud once a month with thin oil. - Page 11 Oil the press arm once a month with thin oil. Oil the geared cogwheel once a month with grease. Oil the cutting arm once a month with grease. During the oil process move the movable parts to let the oil spread everywhere. Cases of no oiling can cause defects on the working parts of the machine...
