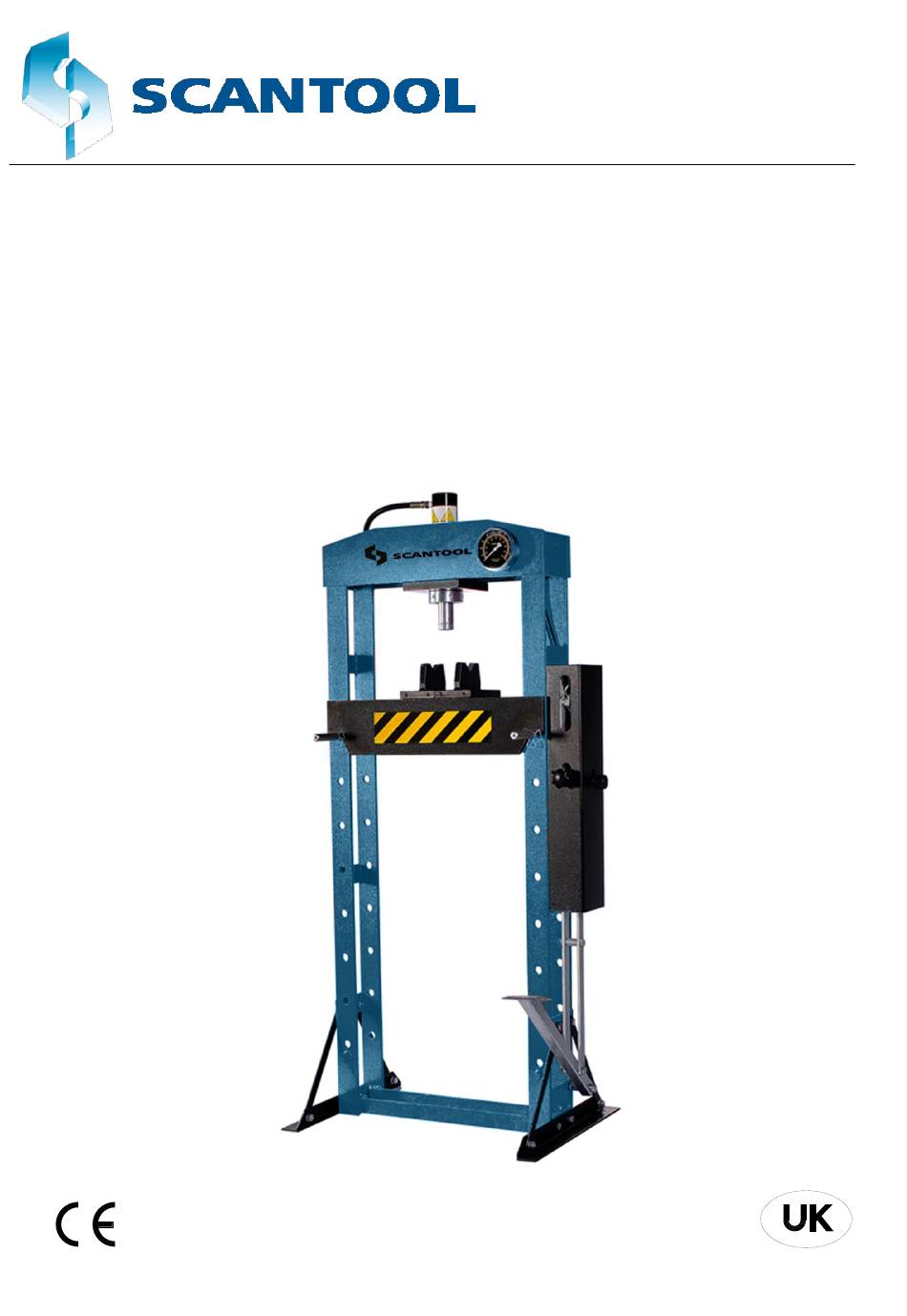

- Page 1 Industrivej 3-9 DK-9460 Brovst Denmark Tlf.: +45 98 23 60 88 Fax: +45 98 23 61 44 Operators Manual: WSP 15F 15 TON FOOT/MANUAL SHOP PRESS...
- Page 2 Ph.: +45 98 23 60 88 Fax: +45 98 23 61 44 Website: www.scantool-group.com hereby declares that SCANTOOL Press WSP 15F are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May 2006...
-
Page 3: Table Of Contents
Contents 1.0 SAFETY INSTRUCTIONS AND WARNINGS 2.0 SPECIFICATIONS 3.0 BEFORE FIRST USE 4.0 OPERATION 5.0 TROUBLE SHOOTING 6.0 MAINTENANCE 7.0 DRAWINGS AND SPARE PARTS LISTS 8.0 DIMENSIONS 9.0 GUARANTEE... -
Page 4: Safety Instructions And Warnings
Instruction Manual IMPORTANT PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS N WARNINGS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS PERSONAL INJURY. -
Page 5: Specifications
2.0 SPECIFICATIONS Capacity 15ton Stroke 160mm Working Range 168-980mm Bed width 500mm 3.0 ASSEMBLY Use the exploded drawing as your guide to assemble the press. Lay all parts and assemblies out in front of you before beginning. The following procedure is recommended: 3.1 Attach one base section (11) to left post (15) using bolts (9), washers (12), lock washers (13) and nuts (14) then attach another to right post (15) 3.2 Insert bed frame pins (8) into the holes in the posts, and then insert the joined press... -
Page 6: Maintenance
6.0 MAINTENANCE 6.1 Clean the outside of the press with dry, clean and soft cloth and periodically lubricate the joints and all moving parts with light oil as needed. 6.2 When not in use, store the press in a dry location with ram and piston fully retracted.. 6.3 When press efficiency drops, purge away air from hydraulic system as described in 6.4 Check the hydraulic oil level: remove the filler nut (P34) on the top of the reservoir, if the oil is not adequate, fill with high quality hydraulic jack oil as necessary, then... -
Page 7: Drawings And Spare Parts Lists
7.0 DRAWINGS AND SPARE PARTS LISTS... -
Page 10: Dimensions
8.0 DIMENSIONS... -
Page 11: Guarantee
9.0 GUARANTEE If within 2 year of purchase this machine supplied by SCANTOOL A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: 1 The product is returned complete to one of our Service Branches or Official Service Agents.
