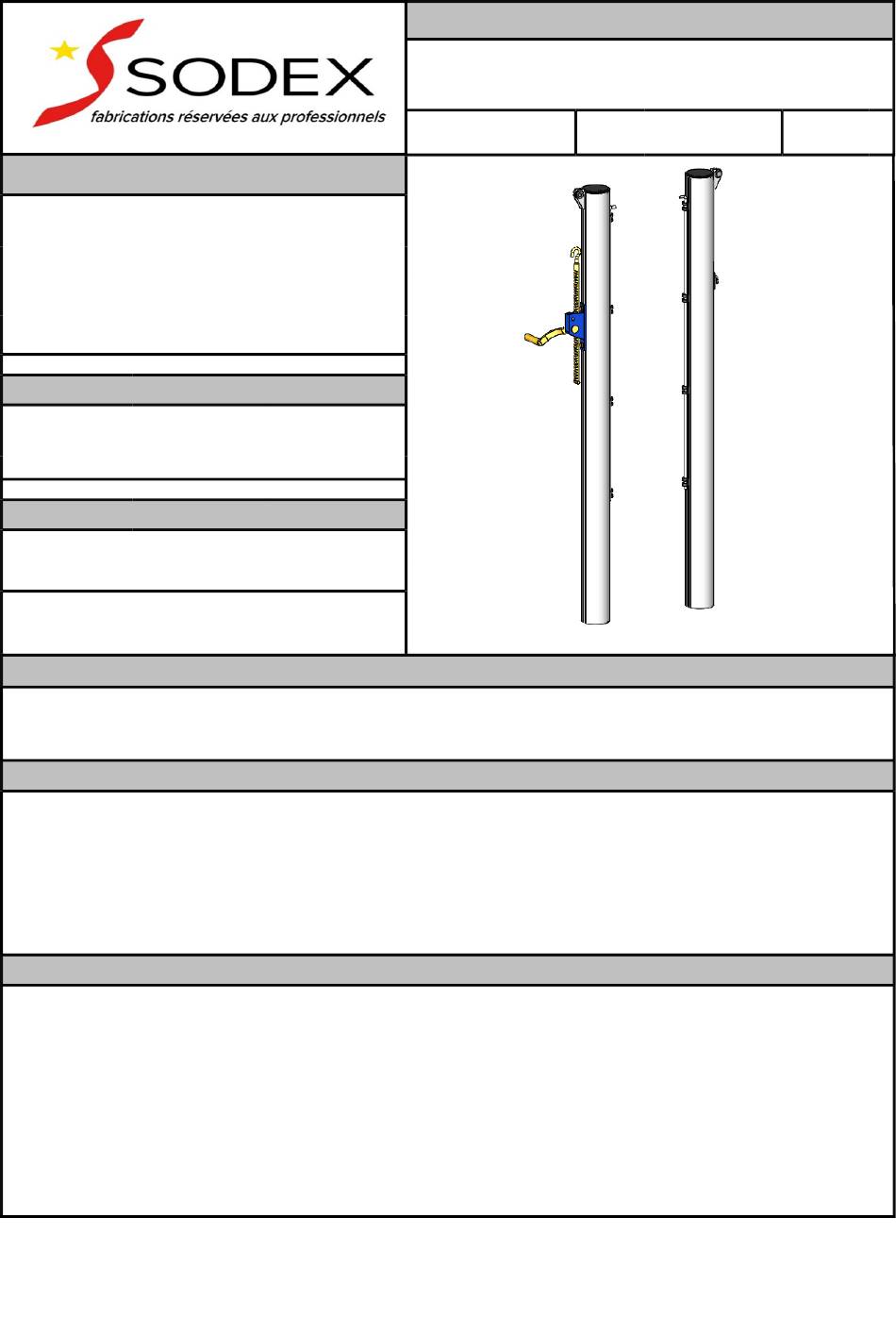

SODEX S25233 Product Sheet

Tennis posts to seal, ø90, outside winch
Hide thumbs

Advertisement

Quick Links

Download this manual
DETAILS
SODEX INTERNATIONAL
18 rue de l'avenir – Bât. 224
14650 CARPIQUET
Tel: + 33 (0) 2.31.53.78.70
Email: karine.chaigneau@sodexinternational.com
DESCRIPTION
Aluminium structure Ø90mm
Plastified
CONFORM
European norm
NF EN 1510
The time to make the assembly of the posts is estimated at 30min at 1 person (sealing not included).
The equipement has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to be done
within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module
TENNIS POSTS TO SEAL,Ø90,
PRODUCT REF
ASSEMBLY TIME
MAINTENANCE
WARRANTY
PRODUCT SHEET
OUTSIDE WINCH
S25233
PAIR
