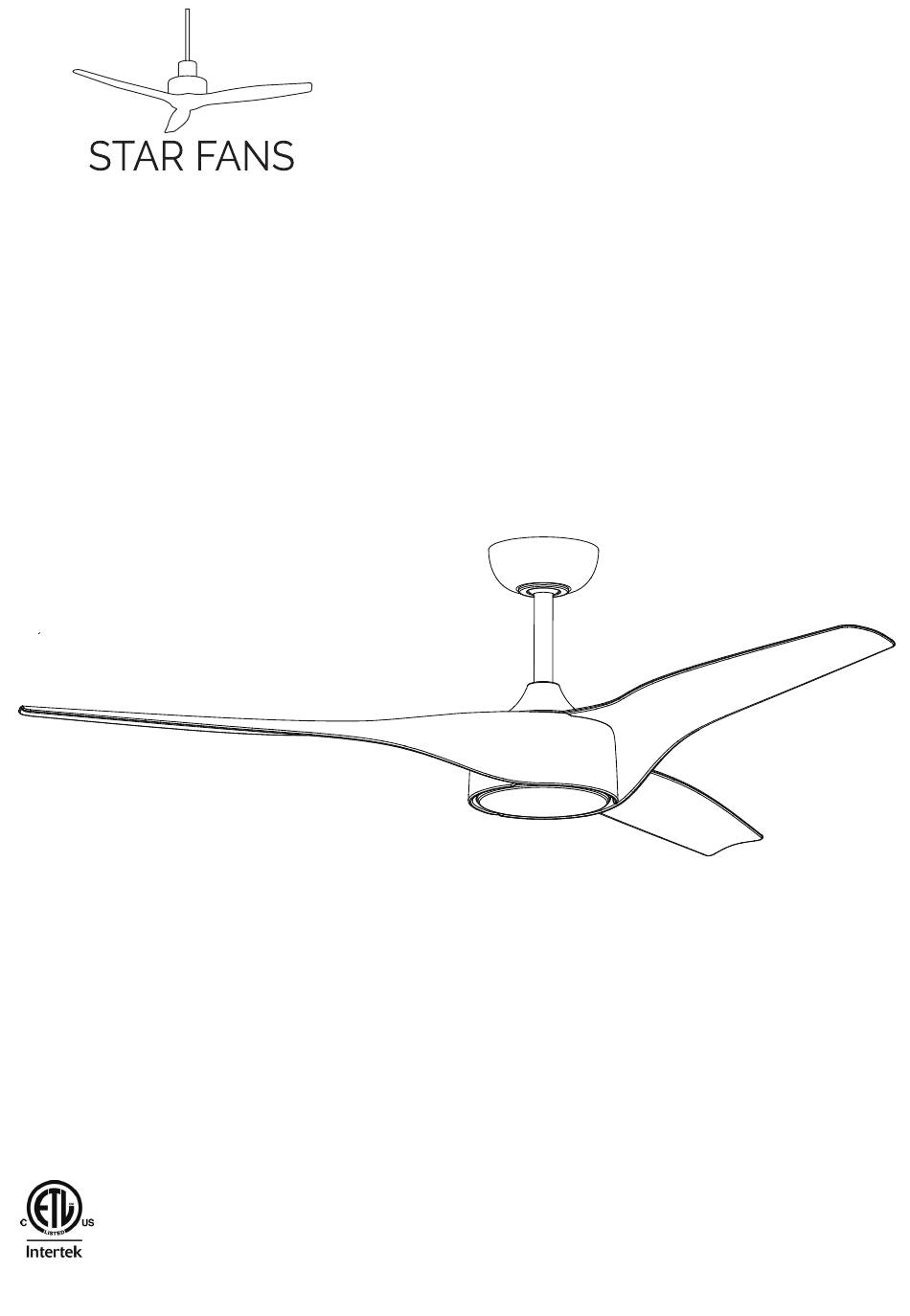

- Page 1 STAR X User's manual WARNING : Read and foll ow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURYS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Har d war e B ag Mount ing Bracket Fo r Mo u n t i n g B r ac k et : Flat Washer Downrod Stopper pring Washer x2 Locker Washer Mac hine Screw x2...
- Page 4 Tur n off po we r at breaker box to avoid possible Use metal outlet box suit able for fan su pport. electrical shock. O FF O FF O 1A.Installing mounting bracket to ceiling outlet box Install mounting bracke t to outlet box in ceiling by using screws included with the ou tlet box and washers Outlet Box from the hardwa re bag.
-
Page 5: Blade Installation
2. BLADE I NSTALLATI ON Attach blades to motor by using & Blade screws provided in the hardware bag. Blade screw (* Repeat this step for every blade until the 3 blades are installed firmly. Do not tighten the screws too hard to Blade(3) prevent harming the plastic.) 3. -
Page 6: Hanging The Fan
Hanging the fan ift fan assembly onto Mounting Bracket. Rotate fan to let the groove on the ball engages the ridge in the Mounting Bracket. Mounting Bracket Mounting Bracket Ridge Ball Groove .Connect the wire Step 1. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked ‘AC in N’... -
Page 7: Canopy Installation
4. CANOPY INSTALLATION No t e: Two sc rews are p re-screwed on Mo unting Bracket f or Canopy installation. Push up canopy until two pre -screwed screws on Mounting Bracket are engaged with two key holes on Canopy. Rotate Canopy slightly until two pre -screwed screws heads are engaged in the narrow end of key hol es. Tighten both screws. -
Page 8: Remote Control Operation
6.Remote Control Operation 1. TURN ON THE FAN Press any speed control button to turn on the fan and control the ceiling fan speed from low to high. Button (I) is for the lowest speed, and button (VI) is for the fastest speed. 2. - Page 9 info@starfans.co www.starfans.co...
