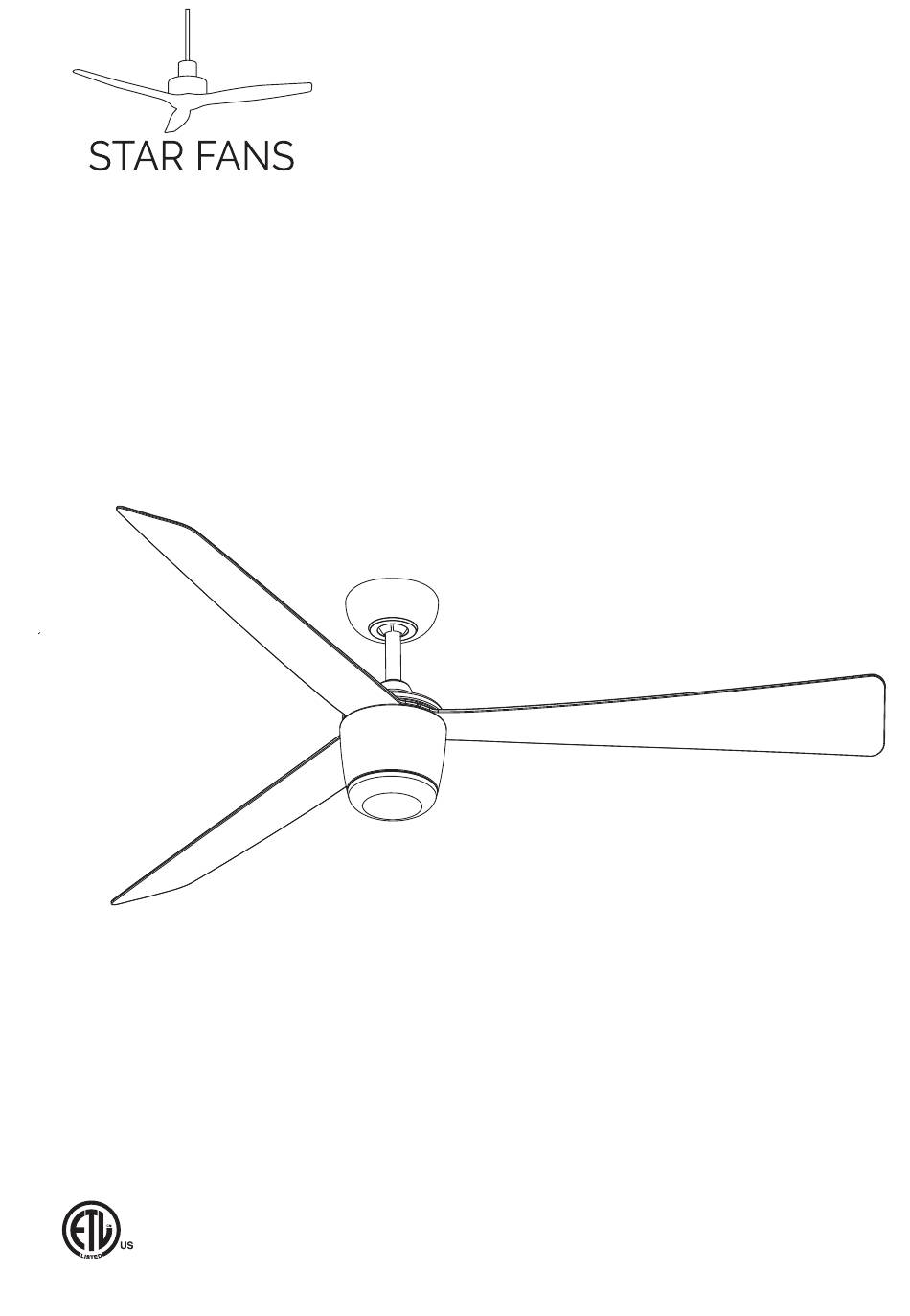

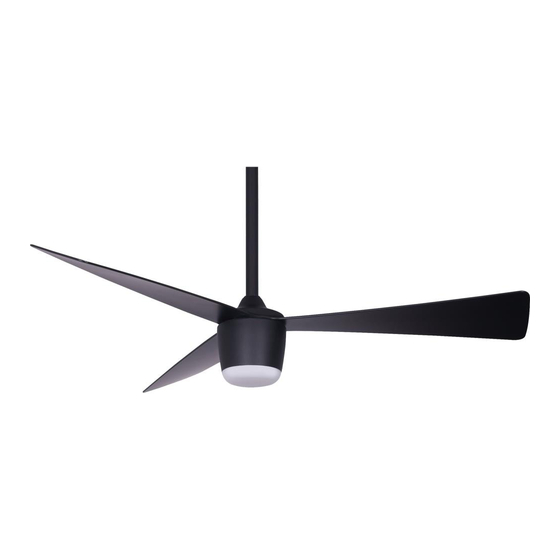

- Page 1 Use r＇ s ma nua l STAR 7 User's manual STAR PROPELLER WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURYS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Hardware Bag Mounting Bracket For Mounting Bracket: Flat Washer S pring Washer x3 Machine S crew x2 Wood S crew ( For Wood beam) Receiver For Wire Connection: Wire Nut x 3 For B lade Installation: Blade S crew x 7...
- Page 4 Turn off power at breaker box to avoid possible Use metal outlet box suitable for fan suppor t . electrical shock. O FF O FF O 1A .In stalling mounting bracket to ceiling outlet box Install mounting bracket to outlet box in ceiling by using screws included with the outlet box and washers Outlet Box from the hardware bag.
-
Page 5: Hanging The Fan
Hanging the fan ift fan assembly onto Mounting Bracket. R otate fan to let the groove on the ball engages the ridge in the Mounting Bracket. Mounting Bracket Mounting Bracket Ridge Ball Groove 2B.Connect the wire Step 1. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked ‘AC in N’... -
Page 6: Canopy Installation
3. CANOPY INSTALLATION Note: Two screws are pre-screwed on Mounting Bracket for Canopy installation. Push up canopy until two pre-screwed screws on Mounting Bracket are engaged with two key holes on Canopy. Rotate Canopy slightly until two pre-screwed screws heads are engaged in the narrow end of key holes. Tighten both screws. -
Page 7: Blade Installation
4. BLA DE INSTALL ATION Attach blades to motor by using & Blade screws provided in the hardware bag. (* Repeat this step for every blade until the 3 blades are installed firmly. Do not tighten the screws too hard to prevent harming the plastic.) Blade( 3) Blade S crew 5. -
Page 8: Remote Control Operation
4.Remote Control Operation 1. TURN ON THE FAN Press any speed control button to turn on the fan and control the ceiling fan speed from low to high. Button (I) is for the lowest speed, and button (VI) is for the fastest speed. 2. - Page 9 Note: The auto learning function will only occur within 60 seconds of turning the fan’s AC power 1.Select desired frequency from the back of transmitter. 2.Press the transmitter’s “off” button and hold the “off” button for over 10 seconds. Once the receiver has detected the frequency, the down light of your fan if applicable will blink twice.
