Summary of Contents for Star Fans Start propeller

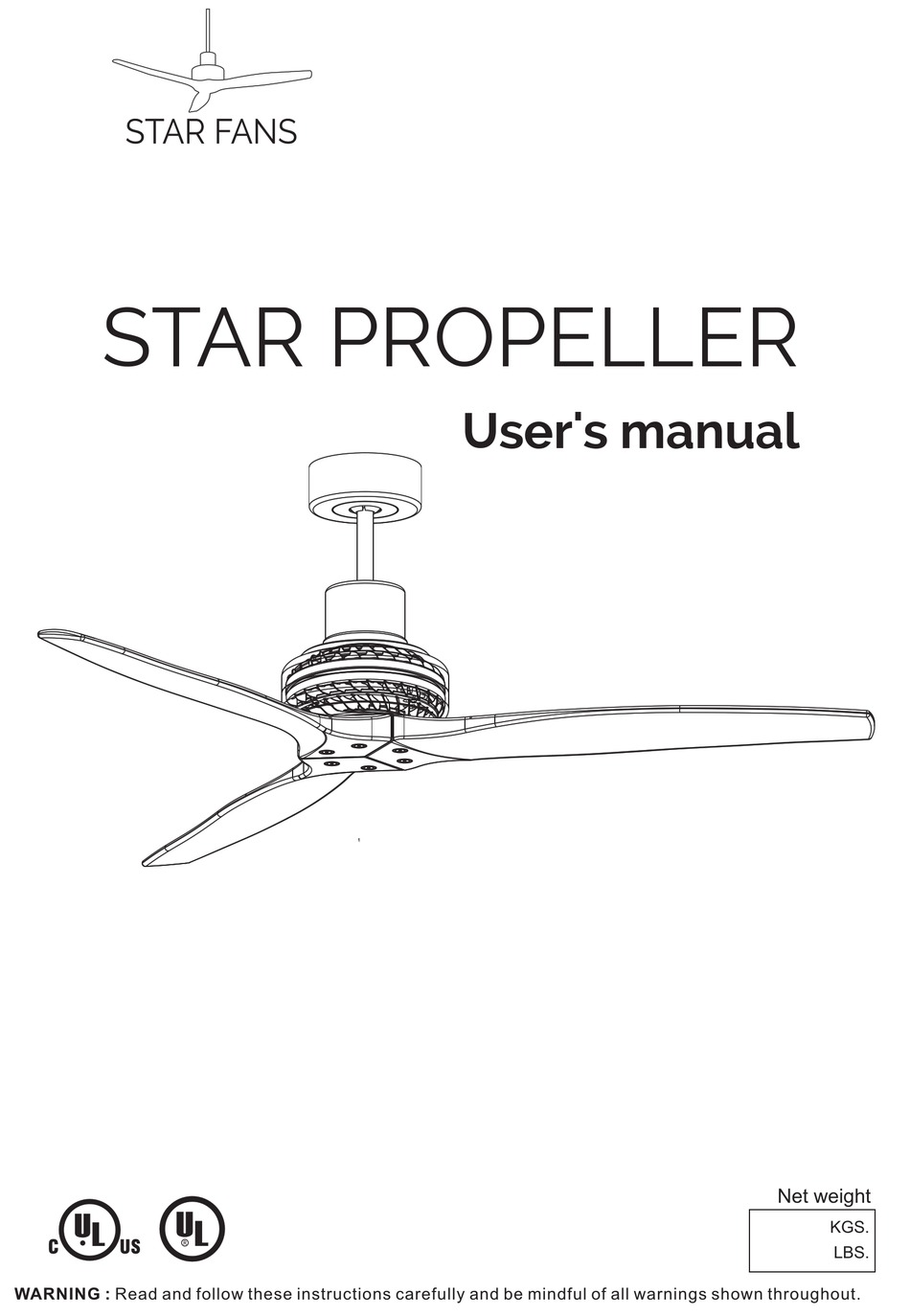

- Page 1 User ’s manual User ’s manual STAR PROPELLER User's manual STAR PROPELLER STAR PROPELLER Net weight KGS. LBS. WARNING : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURYS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 Unpack and inspect fan carefully to be certain all contents are included. Hardware Bag For Mounting Bracket: Mounting Bracket Flat Washer Spring Washer x3 Machine Screw x2 Wood Screw Canopy (For Wood beam) For Wire Connection: Wire Nut x 3 Deco Ring For Blade Installation: Plastic Bushing x 7...
- Page 4 WARNING: blades should be at least 7 feet from floor Note 1: Note 2: Turn off power at breaker box to avoid possible Use metal outlet box suitable for fan support. electrical shock. Outlet box must support 35 lbs min. O FF O FF O 1.
-
Page 5: Hanging The Fan
Hanging the fan Lift fan assembly onto Mounting Bracket. Rotate fan to let the groove on the ball engages the ridge in the Mounting Bracket. Mounting Bracket Mounting Bracket Ridge Ball Groove 2. WIRE CONNECTION 2A. Attaching safety cable to ceiling joist Use wood screw, spring washer, and flat washer from hardware bag. -
Page 6: Canopy Installation
AFTER ALL WIRES ARE CONNECTED: OUTLET BOX SPEED ( 1 ) Attach wall control unit to outlet box using the CONTROL two 6-32 screws provided. ( 2 )Attach wall plate to the switch control front. SCREW WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the outlet box and not pinched between the wall plate and the wall. -
Page 7: Blade Installation
4. BLADE INSTALLATION Attach blades to motor by using Plastic Bushing & Blade screws provided in the hardware bag. (* Repeat this step for every blade until the 3 blades are installed firmly. Do not tighten the screws too hard to prevent harming the wood.) Blade(3) Plastic Bushing Blade Screw... - Page 8 info@starfans.co www.starfans.co...
-
Page 9: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The Star Fans warranty is for one year from the date of purchase from an authorized Star Fans dealer, except for the motor which is granted a five year warranty (excluding wall controls and electrical components e.g switches and capacitors), to the original purchaser or user. - Page 10 Star Propeller Thank you for buying a Star Propeller fan! Your new purchase is a beautiful and energy saving addition to your space. STAR FANS www.starfans.co...
