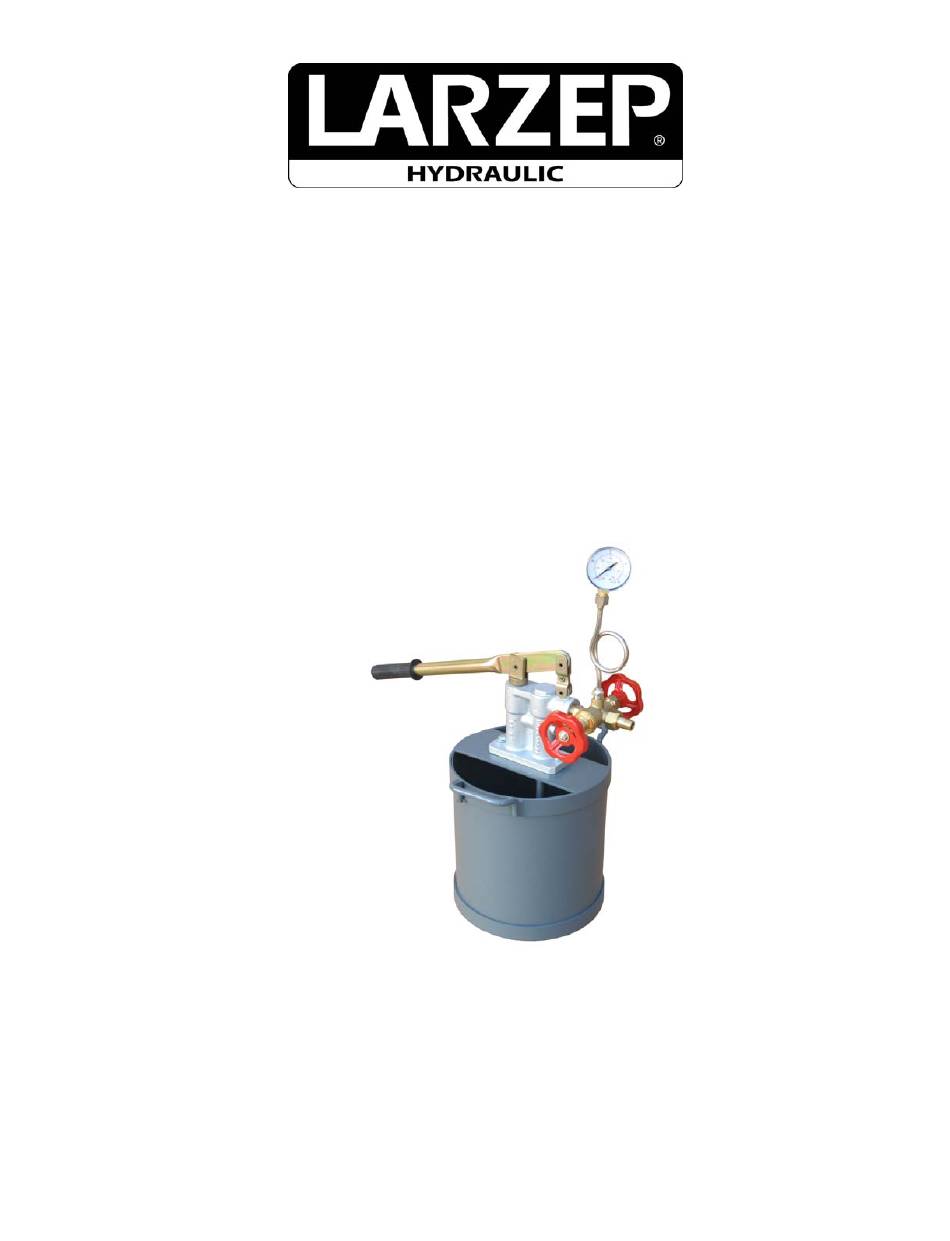

- Page 1 INSTRUCTIONS MANUAL HYDROSTATIC TEST HAND PUMPS WAP0025, WAP0045, WAP0050, WAP0100 LARZEP, S.A. Avenida Urtiaga, 6 48269 Mallabia, Spain Tel. +34 943 171200 Fax. +34 943 174166 e‐mail: info@larzep.com www.larzep.com V01/19 ...
- Page 2 Please note that if the equipment is disassembled or serviced by anyone other than an authorized service dealer or by LARZEP, S.A., this guarantee is rendered null and void. In the event of a warranty claim, return the equipment to LARZEP, S.A. or the authorized dealer which sold you the hydraulic equipment. LARZEP, S.A. will repair or replace the faulty equipment, whichever is deemed most appropriate. LARZEP, S.A. shall not be held liable for any consequential damages or losses, which may occur as a result of faulty equipment. ...
- Page 3 Instruction Manual Hydrostatic test hand pumps WAP0025, WAP0045, WAP0050, WAP0100 ASSEMBLY AND OPERATING INSTRUCTIONS The components are shipped unassembled to prevent breakage or unnecessary bulk during transport or the stockage in warehouse. Ensure that all the equipment and accessories are suitable for the maximum working pressure. The pump is provided with pressure gauge, coil and double control valve. On demand, we can provide a delivery flexible hose, designed to withstand the pressure rating. Assemble the device in accordance with the next procedure, first checking that you have all the necessary material. Use PTFE tape on all threads. Before starting any operation, clean the tank to eliminate any residue or waste. 1. Screw suction pipe into the base of the pump. 2. Assembly the pump on the bridge of the tank. 3. Screw in the valve unit, ensuring the connection hole for the gauge tube is opposite the outlet and is vertical. ...
- Page 4 Instruction Manual Hydrostatic test hand pumps WAP0025, WAP0045, WAP0050, WAP0100 DECLARATION OF CONFORMITY 4 ...
