INSTRUCTIONS AND MANUAL
W07807

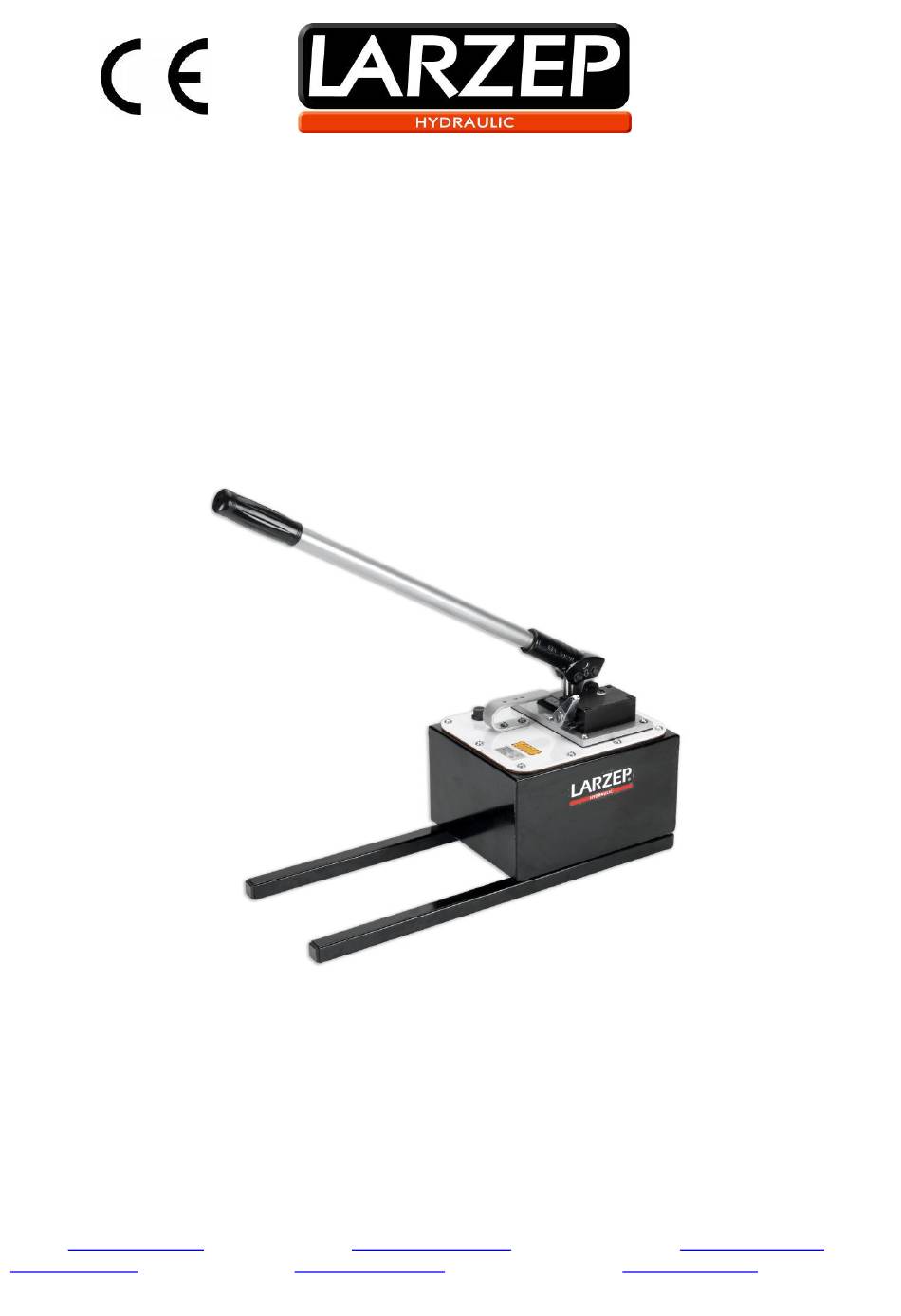

2 SPEED HAND PUMP 7500 cc
LARZEP AUSTRALIA PTY. LTD.
104 Wedgewood Road,
HALLAM, VIC. 3803 AUSTRALIA
Tel. +61 (3) 9796 3744
Fax. +61 (3) 9796 5964
e-mail:
sales@larzep.com.au
www.larzep.com.au
X07807
LARZEP GB LTD.
3 Commerce Way - Leighton Buzzard
BEDS LU7 4RW UNITED KINGDOM
Tel. +44 1525 377819
Fax. +44 1525 851990
e-mail:
www.larzep.co.uk
sales@larzep.co.uk
Advertisement
Related Manuals for Larzep W07807
Summary of Contents for Larzep W07807
- Page 1 INSTRUCTIONS AND MANUAL W07807 X07807 2 SPEED HAND PUMP 7500 cc LARZEP, S.A. LARZEP AUSTRALIA PTY. LTD. LARZEP GB LTD. Avenida Urtiaga, 6 104 Wedgewood Road, 3 Commerce Way - Leighton Buzzard 48269 MALLABIA, SPAIN HALLAM, VIC. 3803 AUSTRALIA BEDS LU7 4RW UNITED KINGDOM Tel.
-
Page 2: Table Of Contents
Do not use the hoses for transporting the device. Use the handles on the cylinders (when appropriate) and set the pump lever to the transportation position. When filling the pump with oil, always use LARZEP hydraulic oil or another oil of similar characteristics. Fill only to the indicated level and remember that the cylinder piston should be back. -
Page 3: Technical Features
Instruction Manual Hydraulic Hand Pump “W07807”, “X07807” 3. TECHNICAL FEATURES The “W” Hand Pumps are compact, light and portable used to power single acting-cylinders, they operate horizontally or vertically, with pump head downwards. All models with pressure relief valve. The two speeds pumps are recommended for applications where the cylinder plunger must move rapidly, also for larger cylinder hook-ups where greater oil capacity is required. -
Page 4: Maintenance
All double action LARZEP cylinders are equipped with a mechanical end of stroke capable of withstanding the nominal pressure. You can therefore carry out the test described in the previous section. If you are working with another type of cylinder and are not 100% sure, do not carry out this test. -
Page 5: Dimensions
Instruction Manual Hydraulic Hand Pump “W07807”, “X07807” BREAK DOWNS AND REPARATIONS THE CYLINDER DOESN´T REACH WORKING PRESSURE. THE CYLINDER DOESN´T AVANCE Relief valve decalibrated (12) ____ Calibrate the valve. Lack of oil in the tank ____ Check the oil. -
Page 6: Declaration Of Conformity
Instruction Manual Hydraulic Hand Pump “W07807”, “X07807” 7. DECLARATION OF CONFORMITY...
