Front Panel

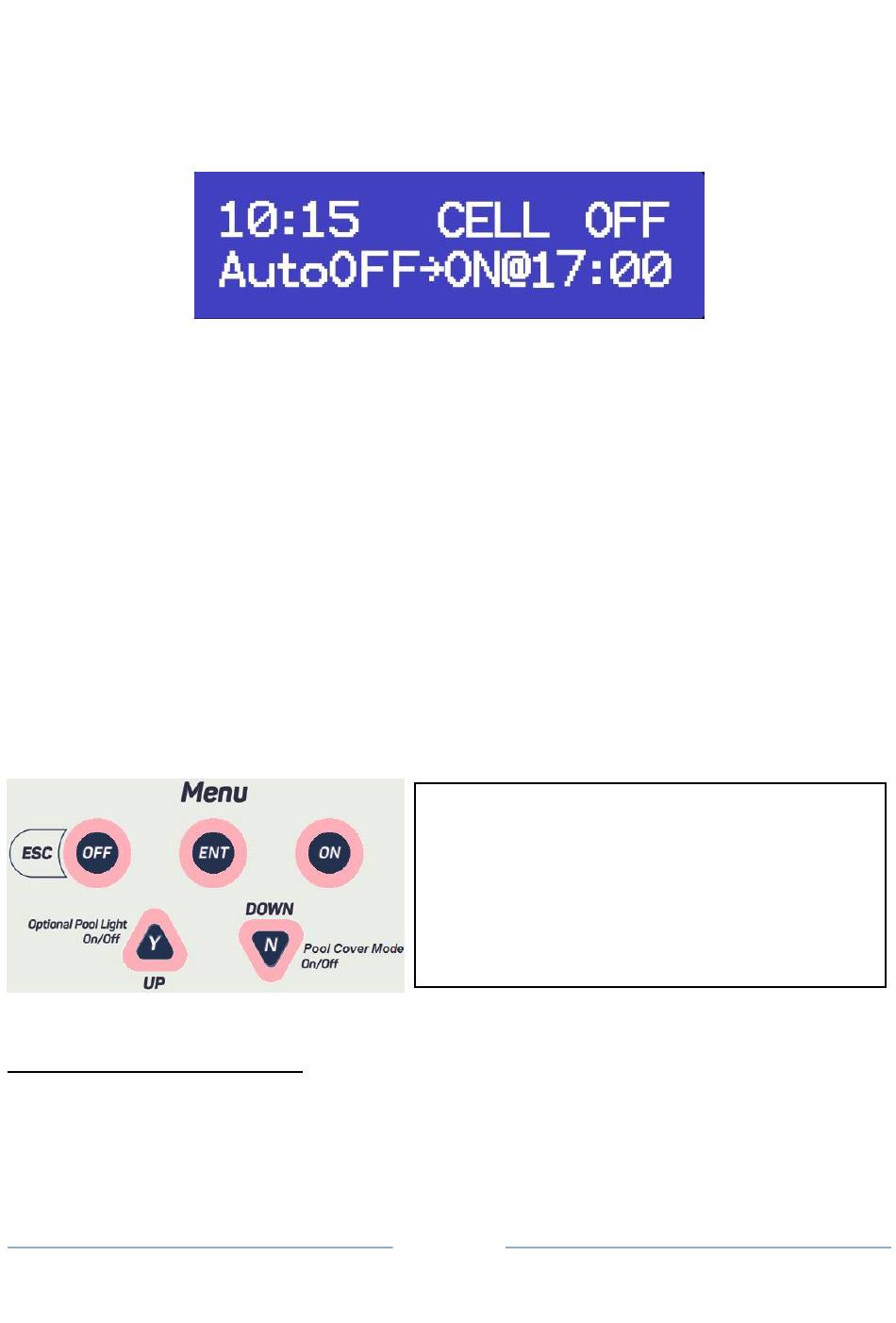

Display
A two-line LCD display is used to provide the user with information.
The first line of the display shows the current time and the cell status and output.
In the example above the time is 10.15am and the Cell is "OFF". If the Cell is on, the
output of the Cell will be displayed. If the output of the Cell has been set at lower than
100%, "CELL OFF" will be displayed intermittently even while the unit is running as the Cell
regulates output. (See Chlorine Output Menu on page 16 for more details)
The second line of the display shows the automatic timer status.
In the example above, the automatic timer status is "OFF" and the display is telling you that
the chlorinator will turn on again at 17:00 or 5pm.
Note that the time is displayed using a 24-hour clock.

Operational Buttons

There are 5 buttons that allow you to control the various functions available via the Menu
system.
ON Button
Turn the System On Manually: Press the ON button once to switch the chlorinator and the
pool pump on manually. The unit will default back to AUTO and turn itself off automatically
at the end of the next programmed FILTER CYCLE (and this time will be displayed on the
LCD).
Each button is labelled with its primary function
either on the button itself, or adjacent to it.
Secondary functions are labelled within a curved
white outline next to the relevant button. The
buttons are backlit to show which are active at any
given time, although the ESC/OFF button is
always available to take you back to the home
screen.
