iPECS 1010i Key Features Manual

Ericsson-LG Enterprise iPECS
1010i Handset Key Features Guide

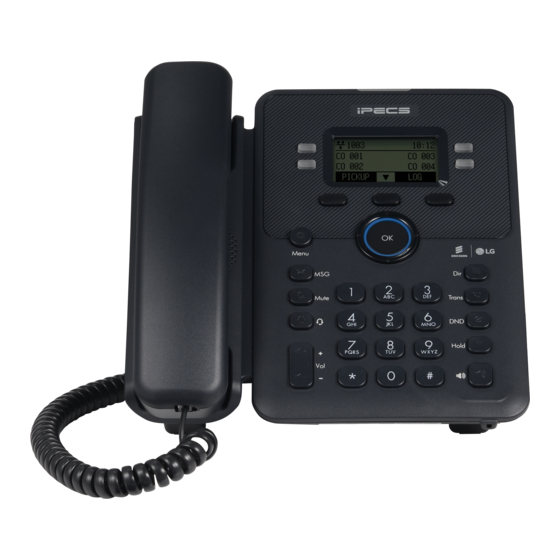

1010i Button Layout
LCD Display
Handset
Menu
Button
Speaker
Volume
Fixed
Buttons
The 1010i has 4 programmable Flex keys
Dealing with calls
Answering an Incoming Call
Making an External Call
Making an Internal Call
Rejecting a Call
Call Pick Up
Placing a call on hold
Quick access call tools
Speed Dial/Directory
Redialling a number
Call Log
List of phone numbers called and
received
Soft Keys
Ring/Message
Indicator
Dial Pad
Button
Buttons
Lift the handset. To answer a call on another extension, press the flashing flex key and then lift the
handset.
Lift the handset and press a free flex key allocated to a line, or the 9 key to pick up an outside line.
Once you have the outside line, dial your number.
Lift the handset. Dial the extension number or press the flex key assigned to the contact.
Press the DND button when a call comes in.
Lift the handset and dial 566 to pick up any handset in your group, or dial *77 and the station
number to pick up a handset that's not in your group.
Press the HOLD button. To reconnect the call, press the HOLD button again to reconnect the call.
Press the Directory button and then enter first character(s) of the name you wish to find. Press the
key with the letter you require 1-4 times e.g. for the letter K press 5 twice (1 press = J, 2 =K, 3=L).
Press OK and then use the navigation key to scroll to the entry you require. Press OK to dial the
number or 'Send' from the appropriate Soft key.
Press the LOG soft key. Scroll through the list using the Navigation buttons.
To redial a number press the SEND soft key
To find out information on the call press the DETAIL soft key. Press BACK to exit.
Phone Guide
• Fixed Buttons
• MSG: Accesses message boxes
Flexible • Mute: Mute the call so that the caller
Buttons
• Headset (icon): If a headset is plugged in
• Dir: Assign or use assigned station speed dial
• Trans: Transfer the current active call or
Navigation
• DND (Do-Not-Disturb): Blocks incoming calls.
Key
OK Key
• Hold: Place a call on hold – the caller will
Fixed
• Menu button: Access the settings for your
Buttons
phone, such as changing the font and display or
changing configuration.
• Volume button: Adjust the Ring, Headset,
Handset, and Speaker volume.
• Speaker button: Toggle the speakerphone On
and Off during a call. The button will automatically
illuminate when the phone is in menu mode.
• Flexible buttons: A line or feature can be
assigned to these buttons.
Speaker
• LCD screen: Phone interface for status, dialing
Button
directories, and text message information.
• Soft Keys: These buttons are interactive and
have a changing function based on the phone's
status.
Your Communications Solution
cannot hear your voice.
this button allows you to toggle between the
headset and handset.
numbers.
access the Program menu while the phone is
idle.
You can also activate Do-Not-Disturb while the
phone is ringing - this terminates the call and
the caller will get a busy tone.
receive on-hold music or comfort tones.
